Android APK Reverse Engineering: Using JADX



In continuation of the Android APK Reverse Engineering series, this post will cover how to actually start digging into an APK’s programming logic. My last blog post detailed how to unzip an APK archive and what contents are within. While it’s useful to an extent, it’s not helpful in reading and understanding the programming logic. Remember the code itself is in binary format and cannot be read within a text editor or other development environment. In my testing, I used quite a few different tools and frameworks. There are varying installation processes with each tool, but the most common installation among all was Java. I’ll explain how to go about getting set up using an Ubuntu VM. This post will specifically cover the JADX tool, which was the most simple to install and use in my experience. JADX is used to convert DEX/Smali code into Java source code.   Installing Java At this point, I am assuming you’re in a VM running Ubuntu. Open the terminal and go into whatever directory you want to use for reverse engineering purposes. For me, I have a directory called “APKAnalysisTools” and this is where I am doing my APK testing. The two commands to run are: sudo apt install default-jre sudo apt install default-jdk Note that the JADX GitHub mentions “JDK 8 or higher must be installed” but I ran both commands above just in case. JRE is the Java Runtime Environment, which allows running Java code. JDK is the Java Development Kit and this allows access to Java’s development kit. JDK should contain JRE as well per online resources, though I didn’t run into issues in running both commands.   Finally, run the following command to ensure you have Java 8 or higher java -version   Installing JADX Still within the APKAnalysisTools folder (or whatever you named your directory), follow the three commands listed under the “Build from source” section. Note that the use of “git” is required. You’ll need to install git prior, run: sudo apt install git After getting git, run: git clone https://github.com/skylot/jadx.git cd jadx ./gradlew dist   From here, you’ll have a few directories that house different content. In order to use the graphical version (GUI), you’ll need to call “jadx-gui” from within the “build/jadx/bin/” directory. That can get a bit messy depending on what command you run; I suggest creating an “alias” for this. This can be done by running: alias jadx-gui=’~/<directoryName>/jadx/build/jadx/bin/jadx-gui’ This essentially creates a command called “jadx-gui” and assigns it the value of where the actual jadx-gui command is located. To be clear, instead of having to be in the “../jadx/build/jadx/bin/” directory, you can call jadx-gui from wherever you are. Note that the aliased command is tied to the current user you performed this as. If you have other users, they’ll need to do the same or do one of the other options that’d make this aliased command available but that’s beyond the scope of this post.   Using JADX Okay, now that we got all the fun stuff taken care of, let’s actually use JADX! If you completed the above step of creating an aliased command, simply type in “jadx-gui” in the terminal and you should be presented with the GUI version of JADX. See Figure 1 for reference.

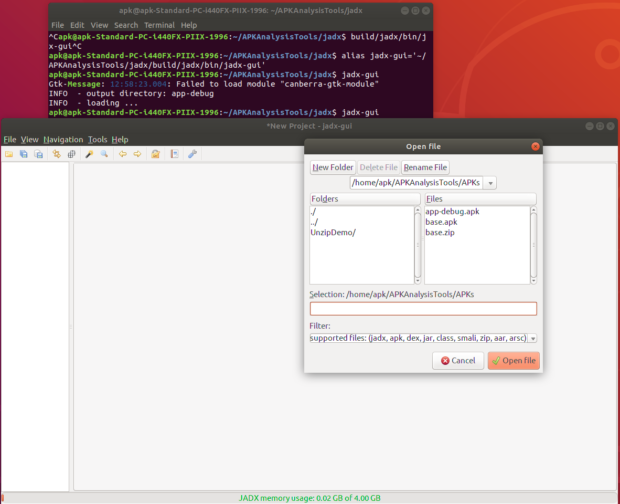

Figure 1: Opening JADX's GUI

From here, target an APK you’d like to further investigate. You can see the hierarchy in the left windowpane and the main windowpane is empty. In using my sample “Hello World” APK I created, I see a few options that resonate with android packages, but I also see my package name as well. The android folders contain the development kit code used in my app. For the most part, I’d say it’s safe to skip these and look at the package name’s folder to see the code the author wrote. Within an APK, the “MainActivity” is generally the introduction point a user is presented with when running an app on their mobile device. Since this app is simple, there is just three Java classes listed to which I personally only wrote one in this case.

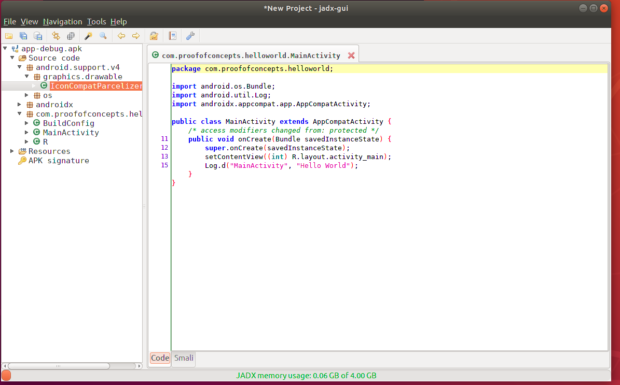

Figure 2: Contents of my Hello World App

As you can see in Figure 2, I drilled into the “com.proofofconcepts…” folder and there are the three Java classes. “R” and “BuildConfig” are defaults, “MainActivity” is the only class I authored. The presented code seems pretty easy to read, it’s in Java after all! However, if you’re curious of the Dalvik bytecode (aka Smali, as seen as one of the bottom-two tabs of the main windowpane), I urge you to check it out. Figure 3 shows the distinct contrast between Java source code and the Smali source code.

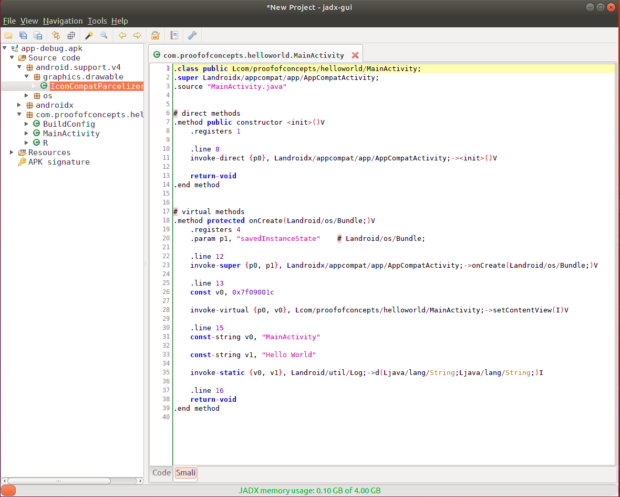

Figure 3: Smali Source Code

I don’t know about you but I think the Smali code is much more difficult to read. The sample app I used isn’t terribly difficult to follow along with,  but if you look at other published apps, the logic gets more difficult to follow. Also, bear in mind that some developers obfuscate their code for legitimate reasons, while malicious threat actors do so to complicate the reverse engineering process. As a reminder, obfuscation is the act of making source code much more difficult to read.   Conclusion That’s it for this post. In summary, this blog post covered how to get set up using JADX, which is a tool that produces Java source code from Android DEX and APK files. The process covers getting Java and git installed prior to obtaining the JADX source code. I also threw a little bonus in and showed you how to create an aliased command to save you a few keystrokes! Once we got JADX GUI open, we took a sneak peek at my Hello World APK and contrasted Smali code from Java source code. While this sample may have been easier to follow along with, some larger APKs are quite difficult to follow. One thing that I didn’t mention is that JADX automatically converts an APK into a readable format, so there isn’t a need to do anything prior. Simply run JADX, open an APK, and analyze away!
