Manage Groups

From the Groups page, you can add, edit, or delete groups of Fireboxes or FireClusters. With groups, you can view summary reports of the aggregated data from all the devices or clusters in the group.

Before you can add, edit or delete a group, you must be in read-write mode. If you are in read-only mode, you can change to read-write mode on the Groups page.

To manage groups, you must be logged in as a user with administrative privileges. For more information about user privileges, go to Manage Users and Groups.

To manage groups:

  1. Select Home > Groups.
    The Groups page opens. If you are in read-only mode, the Switch to Read-Write Mode button appears on the Groups page.

Screen shot of the Groups page

  1. To unlock the configuration so you can make changes, click Screenshot of the Locken icon.
    For more information about how to unlock and lock the Dimension configuration, go to Lock and Unlock the Dimension Configuration.

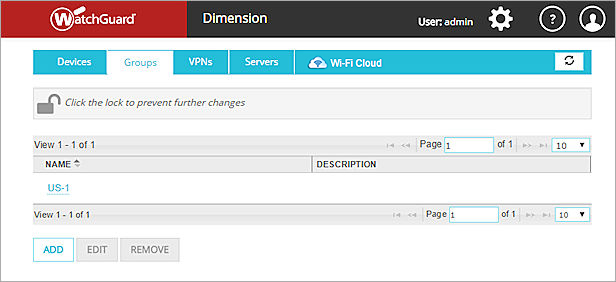

Screen shot of the Groups page in read-write mode

  1. Add, edit, or delete a group, as described in the next sections.

Add a Group

To add a new group of Fireboxes or FireClusters:

  1. Click Add.
    The Add Group dialog box opens.

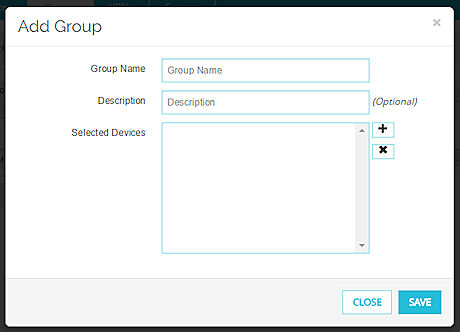

Screen shot of the Add Group dialog box

  1. In the Group Name text box, type a name for this group.
  2. (Optional) In the Description text box, type a description of the group.
  3. In the Select Devices section, click the Add button.
    The Select Devices dialog box opens.
  4. To refine the devices in the Selected list, in the Device(s) text box, type the name or serial number of a Firebox or FireCluster.
  5. To add devices to the group, from the Selected list, select one or more devices and click the Right Arrow button.
    The selected devices are moved to the Available list.
  6. Click OK.
    The devices you selected appear in the Add Group dialog box in the Select Devices list.
  7. Click Save.
    The group appears in the Groups list.

Edit a Group

When you edit an existing group, you can add or delete Fireboxes or FireClusters from the group, or change the description of the group. You cannot change the group name.

To edit a group:

  1. From the Groups list, select the row of a group.
    Make sure you do not click the Group Name.
  2. Click Edit.
    The Edit Group dialog box opens.
  3. (Optional) In the Description text box, add or modify the description of the group.
  4. To add a device to the group, in the Select Devices section, click the Add button and follow the instructions in the previous section to add one or more devices.
  5. To remove a device from the group, in the Selected Devices list, select a device and click the Remove button.
    The device is removed from the group.
  6. Click Save.
    The Groups list appears with a message that the group has been updated.

Delete a Group

To permanently delete a group from the Groups list:

  1. From the Groups list, select the row of a group.
    Make sure you do not click the Group Name.
  2. Click Remove.
    A confirmation message appears.
  3. Click OK to delete the group.
    The group is deleted from the Groups list.
