OpenVPN Access Server Integration with AuthPoint

Deployment Overview

This document describes how to set up multi-factor authentication (MFA) for OpenVPN Access Server with AuthPoint as an identity provider.

Your OpenVPN Access Server must already be configured and deployed before you set up MFA with AuthPoint. OpenVPN Access Server can be configured to support MFA in several modes. For this integration, we set up RADIUS authentication with AuthPoint.

This integration was tested with version 2.1.9 of OpenVPN Access Server.

OpenVPN Access Server Authentication Data Flow with AuthPoint

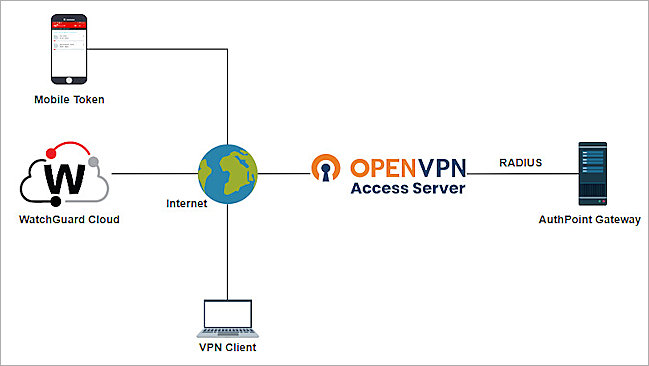

AuthPoint communicates with various cloud-based services and service providers with the RADIUS protocol. This diagram shows the data flow of an MFA transaction for OpenVPN Access Server.

Before You Begin

Before you begin these procedures, make sure that:

  • You have installed and configured the AuthPoint Gateway (see About Gateways)
  • You have chosen a shared secret key
  • End-users can log in to the OpenVPN Access Server
  • A token is assigned to a user in AuthPoint
  • You have installed the OpenVPN client application

Configure OpenVPN Access Server

Configure RADIUS Server

To use RADIUS authentication with OpenVPN Access Server, you must configure the RADIUS server (AuthPoint Gateway).

  1. Log in to the OpenVPN Access Server web UI at https://<IP address of OpenVPN Access Server:943>.
  2. Select Authentication > RADIUS.

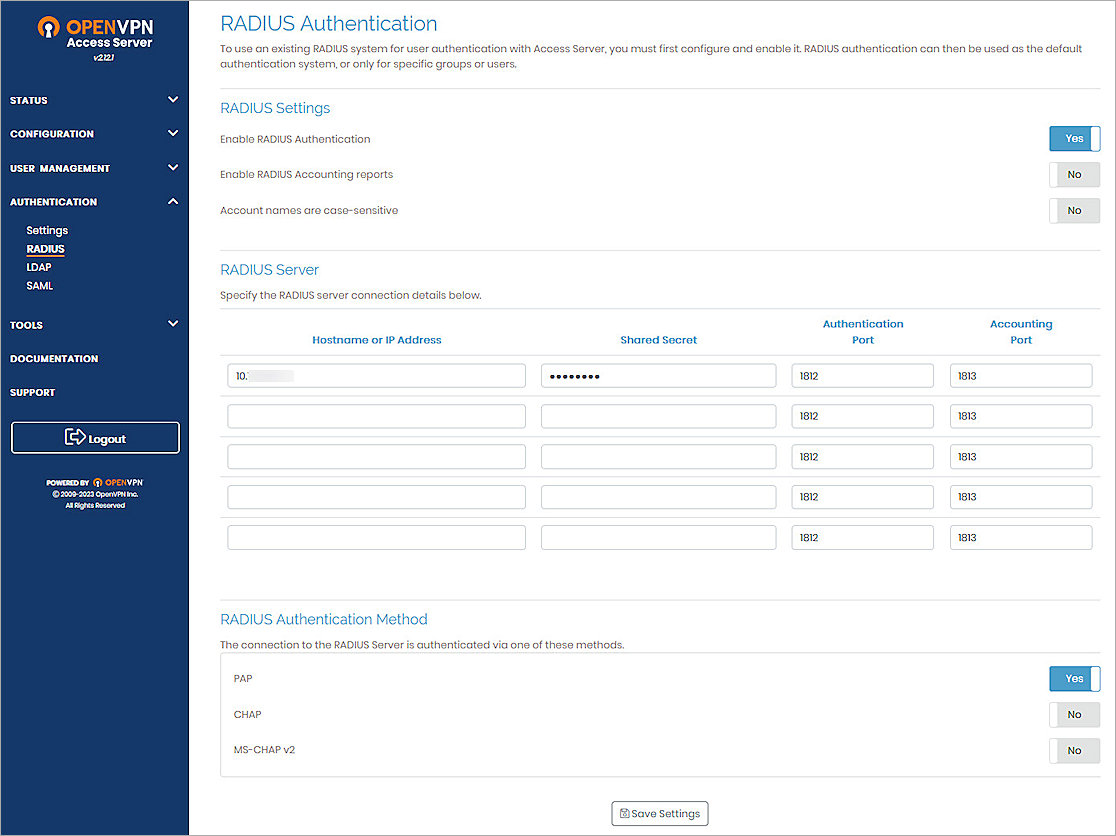

  1. In the Hostname or IP Address text box, type the IP address of the AuthPoint Gateway (RADIUS server).
  2. In the Shared Secret text box, type a shared secret key for OpenVPN to use for communication with AuthPoint.
  3. Click Save Settings.

  1. Click Use RADIUS to select RADIUS for authentication users.
  2. Click Update Running Server.

Configure VPN Server Settings

  1. Select Configuration > VPN Settings.

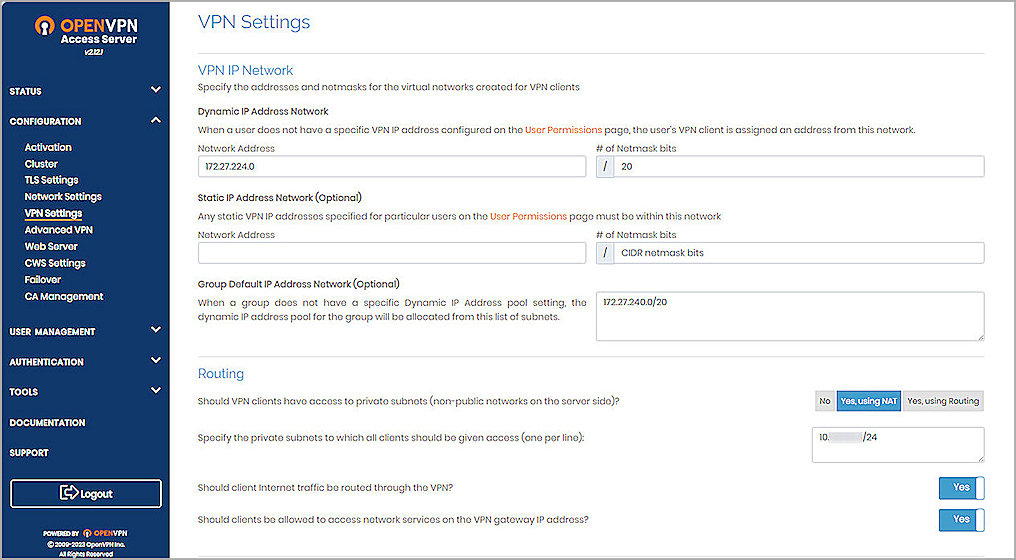

  2. In the Dynamic IP Address Network section, in the Network Address text box, type the IP address for VPN clients to use if a user does not have a specific VPN IP address configured.
  3. In the Dynamic IP Address Network section, in the Number of Bits in Netmask text box, type the netmask for VPN clients to use if a user does not have a specific VPN IP address configured.
  4. In the Routing section, in the Specify private subnets text box, type the private subnets that all VPN clients should have access to.

  1. Click Save Settings.
  2. Click Update Running Server.

Configure VPN Client Settings.

  1. Select Configuration > Client Settings.

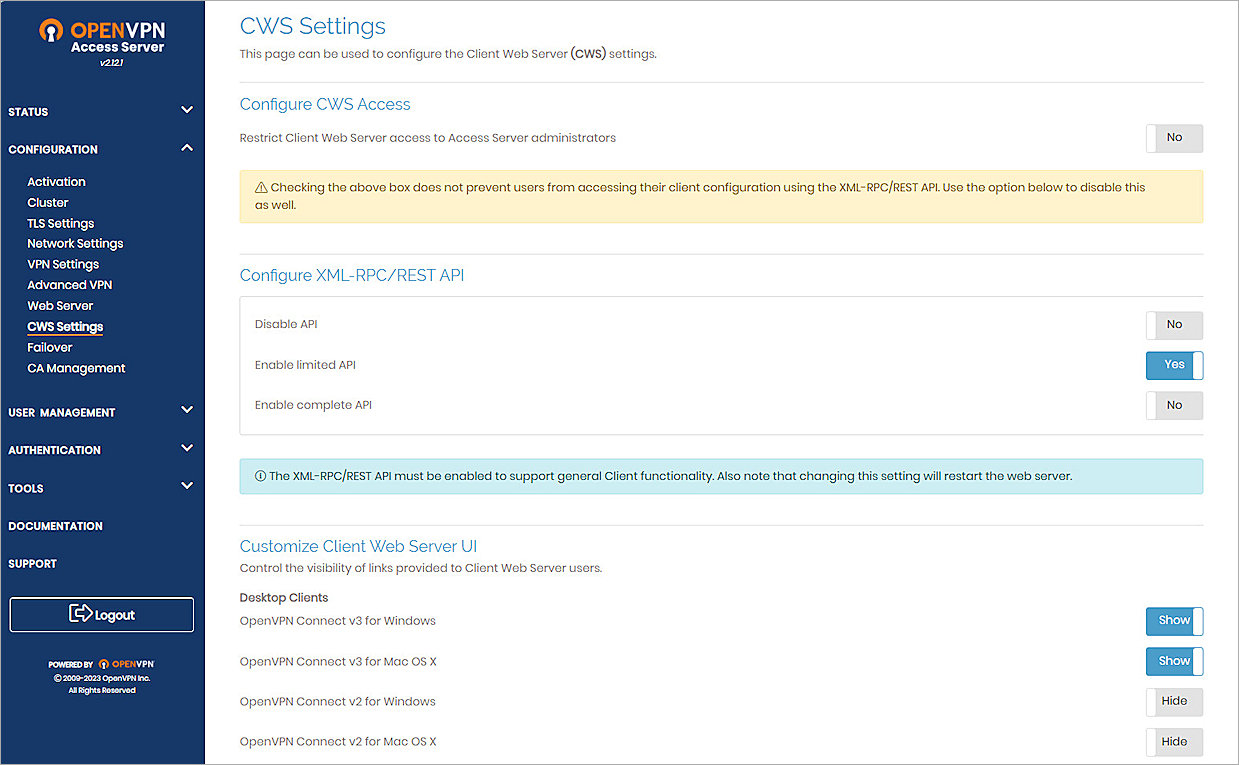

  2. On the Client Settings screen, configure the client web server or modify access server client settings.
  3. Click Save Settings.
  4. Click Update Running Server.

Configure AuthPoint

Before AuthPoint can receive authentication requests from OpenVPN Access Server, you must:

Add a Radius Resource in AuthPoint

From the AuthPoint management UI:

  1. From the navigation menu, select Resources. Click Add Resource.
    The Add Resource page opens.

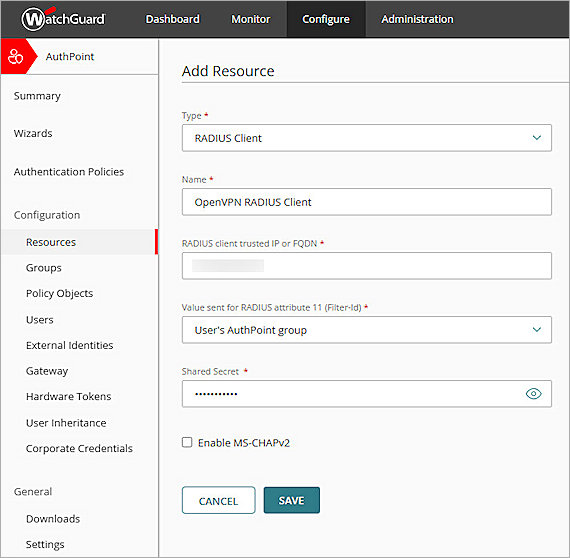

  1. From the Type drop-down list, select RADIUS Client.
    Additional fields appear.

  1. In the Name text box, type a resource name for OpenVPN Access Server.
  2. In the Host text box, type the OpenVPN Access Server IP address.
  3. In the User IDdrop-down selection list, select User Name.
  4. In the Shared Secret text box, type the shared secret for OpenVPN Access Server.
  5. Click Save.

Add a Group in AuthPoint

You must have at least one user group in AuthPoint to configure MFA. If you already have a group, you do not have to add another group.

To add a group to AuthPoint:

  1. From the navigation menu, select Groups.
  2. Click Add Group.
    The New Group page appears.

Screenshot that shows the Groups page.

  1. In the Name text box, type a descriptive name for the group.
  2. (Optional) In the Description text box, type a description of the group.

Screen shot of the New Group page.

  1. Click Save.
    Your group is listed on the Groups page.

Screenshot of the Save button on the New Group page.

Add an Authentication Policy to AuthPoint

Authentication policies specify which resources users can authenticate to and which authentication methods they can use (Push, QR code, and OTP).

You must have at least one authentication policy in AuthPoint that includes the OpenVPN Access Server RADIUS client resource. If you already have authentication policies, you do not have to create a new authentication policy. You can add this resource to your existing authentication policies.

Users that do not have an authentication policy for a specific resource cannot authenticate to log in to that resource.

To configure an authentication policy:

  1. From the navigation menu, select Authentication Policies.
    The Authentication Policies page opens.

Screenshot of the Add Policy button on the Authentication Policies page.

  1. Click Add Policy.
    The Add Policy page opens.

  1. In the Name text box, type a name for this policy.
  2. From the Select the Authentication Options drop-down list, select Authentication Options, then select which authentication options users can choose from when they authenticate.

    If you enable the push and OTP authentication methods for a policy, RADIUS client resources associated with that policy use push notifications to authenticate users.

    QR code authentication is not supported for RADIUS client resources.

  3. From the Groups drop-down list, select which groups this policy applies to. You can select more than one group. To configure this policy to apply to all groups, select All Groups.
  4. From the Resources drop-down list, select the resource that you created in the previous section. If you want this policy to apply to additional resources, select each resource this policy applies to. To configure this policy to apply to all resources, select All Resources.

Screenshot of the Add Policy page with the groups and resources selected

  1. (Optional) If you have configured policy objects such as a Network Location, select which policy objects apply to this policy. When you add a policy object to a policy, the policy only applies to user authentications that match the conditions of the policy objects. For example, if you add a Network Location to a policy, the policy only applies to user authentications that come from that Network Location. Users who only have a policy that includes a Network Location do not get access to the resource when they authenticate outside of that Network Location (because they do not have a policy that applies, not because authentication is denied).

    For RADIUS authentication, policies that have a Network Location do not apply because AuthPoint does not have the IP address of the user.

    If you configure policy objects, we recommend that you create a second policy for the same groups and resources without the policy objects. The policy with the policy objects should have a higher priority.

Screenshot of the Policy Objects drop-down list.

  1. Click Save.
    Your policy is created and added to the end of the policy list.

    When you create a new policy, we recommend that you review the order of your policies. AuthPoint always adds new policies to the end of the policy list.

Bind the RADIUS Resource to a Gateway

To use RADIUS authentication with AuthPoint, you must have the AuthPoint Gateway installed on your corporate network and you must assign your RADIUS resources to the Gateway in the AuthPoint web UI. The Gateway functions as a RADIUS server.

If you have not configured and installed the AuthPoint Gateway, see About Gateways.

  1. From the navigation menu, select Gateway.
  2. Select the Name of the Gateway.

  3. From the RADIUS section, in the Port text box, type the port number used to communicate with the Gateway. The default ports are 1812 and 1645.

    If you already have a RADIUS server installed that uses port 1812 or 1645, you must use a different port for the AuthPoint Gateway.

  4. From the Select a RADIUS Resource drop-down list, select your RADIUS client resource.
  5. Click Save.

Add Users to AuthPoint

Before you assign users to a group, you must add the users to AuthPoint. There are two ways to add AuthPoint user accounts:

  • Sync users from an external user database
  • Add local AuthPoint users

Each user must be a member of a group. You must add at least one group before you can add users to AuthPoint.

To import users from Active Directory, Microsoft Entra ID, or an LDAP database, you must add an external identity in the AuthPoint management UI. External identities connect to user databases to get user account information and validate passwords.

  • To sync users from Active Directory or an LDAP database, you must add an LDAP external identity
  • To sync users from Microsoft Entra ID, you must add a Microsoft Entra ID external identity

When you sync users from an external user database, you can sync any number of users and they are all added to AuthPoint at one time. Users synced from an external user database use the password defined for their user account as their AuthPoint password.

To learn how to sync users, go to Sync Users from Active Directory or LDAP and Sync Users from Azure Active Directory.

You can create local AuthPoint users on the Users page in the AuthPoint management UI. Because you can create only one user at a time, you most commonly do this when you want to create test users or to add only a small number of users.

Unlike users synced from an external user database, local AuthPoint users define and manage their own AuthPoint password. When you add a local user account, the user receives an email that prompts them to set their password.

To learn how to add local AuthPoint user accounts, go to Add Local AuthPoint Users.

Test the Integration

To test the integration of AuthPoint and your configuration of OpenVPN Access Server, you can authenticate with your mobile device. For RADIUS resources, you can choose the one-time password (OTP) or push authentication methods.

In this example, we show the one-time password authentication method.

  1. Run the OpenVPN client application.
  2. In the task bar, right-click OpenVPN and select Connect.

  1. Type your OpenVPN Access Server IP address. Click Continue.

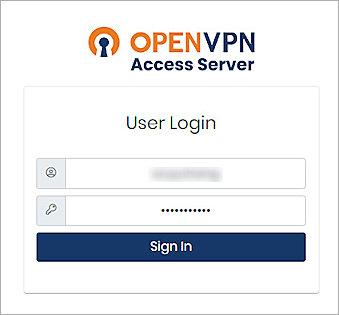

  1. In the Username text box, type AuthPoint user name.
  2. In the Password text box, type your AuthPoint password and OTP. The OTP for your token is shown in the AuthPoint mobile app.

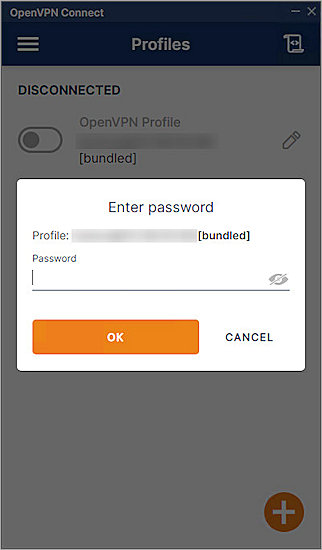

  3. Click Connect.

  1. In the OpenVPN Warning dialog, click Yes to allow the VPN connection to use the unverified profile.
