VMware Workspace ONE UEM Integration with AuthPoint

Deployment Overview

This document describes how to set up multi-factor authentication (MFA) for VMware® Workspace ONE Unified Endpoint Management (UEM) with AuthPoint as an identity provider. The steps in this document are for Workspace ONE UEM.

Workspace ONE UEM must already be configured and deployed before you set up MFA with AuthPoint.

Workspace ONE UEM can be configured to support MFA in several modes. For this integration, we set up SAML with AuthPoint.

Workspace ONE UEM Authentication Data Flow with AuthPoint

AuthPoint communicates with various cloud-based services and service providers with the SAML protocol. This diagram shows the data flow of an MFA transaction for Workspace ONE UEM.

Diagram of the data flow for an MFA transaction between Workspace ONE UEM and AuthPoint.

Before You Begin

Before you begin these procedures, make sure that:

Configure Workspace ONE UEM

To start, you must download the metadata file from the Certificate Management page in the AuthPoint management UI. After you have that, you can configure Workspace ONE UEM.

  1. Log in to WatchGuard Cloud.
  2. From the navigation menu, select Configure > AuthPoint. If you have a Service Provider account, you must select an account from Account Manager.
  3. Select Resources.
  4. Click Certificate.

  1. Next to AuthPoint certificate you will associate with your resource, click and select Download Metadata. We recommend that you choose the certificate with the latest expiration date.

    The AuthPoint metadata provides your resource, in this case Workspace ONE UEM, with information necessary to identify AuthPoint as a trusted identity provider.

  1. Log in to the Workspace ONE UEM console as an administrator. In our example, the URL is https://example.awmdm.com.
  2. Navigate to Groups & Settings > Groups > Organization Groups > Details > Group ID and find the Group ID value. Note this value for later. In this example, the Group ID is M1234567

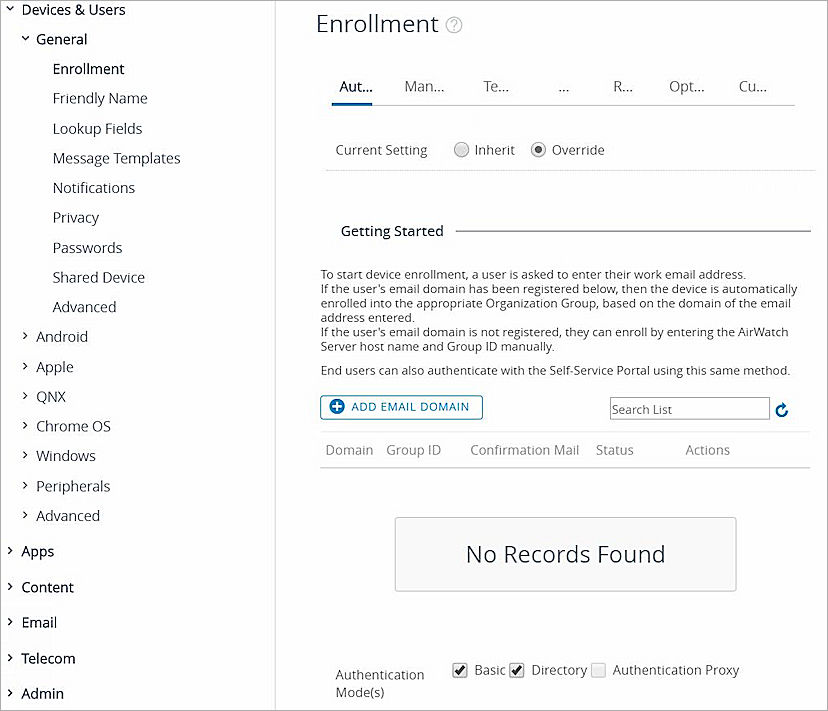

  3. Navigate to Groups & Settings > All Settings > Devices & Users > General > Enrollment > Authentication.
  4. For Current Setting, select Override.
  5. For Authentication Modes, select the Directory check box.

Authentication Mode(s)

  1. Click Save.

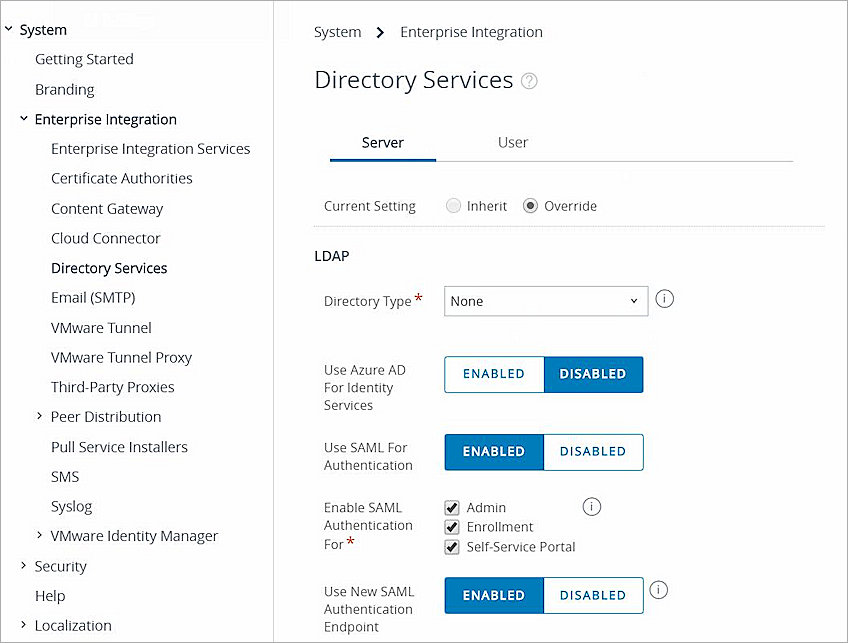

  2. Navigate to Groups & Settings > All Settings > System > Enterprise Integration > Directory Services.
    You can use wizard or manual . In this example, we show the steps for manual configuration.
  3. For Current Setting, select Override.
  4. From the Directory Type drop-down list, select None.
  5. For Use Azure AD For Identity Services, select Disable.
  6. For Use SAML For Authentication, select Enable.
  7. Next to Enable SAML Authentication For, select the Admin, Enrollment, and Self-Service Portal check boxes.
  8. For Use New SAML Authentication Endpoint, select Enable.

New SAML

  1. Next to Import Identity Provider Settings, click Upload. Upload the AuthPoint metadata file you downloaded previously.
    The Identity Provider ID and Identity Provider Single Sign-On URL text boxes are filled with information from the metadata file.
  2. In the Service Provider (AirWatch) ID text box, type AirWatch.
  3. For Request Binding Type, select Post.
  4. From the NameID Format drop-down list, select Unspecified.
  5. From the Authentication Request Security drop-down list, select None.
  6. For Response Binding Type, select Post.
  7. From the Authentication Response Security drop-down list, select None.

saml 2.0

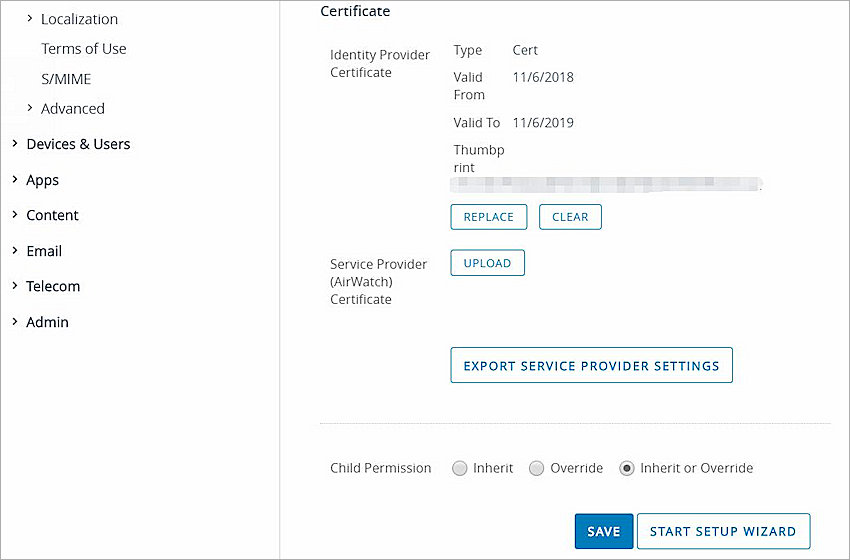

  1. To export the settings, click Export Service Provider Settings. You need this information to configure a SAML resource in AuthPoint.

Certificate

Configure AuthPoint

Before AuthPoint can receive authentication requests from Workspace ONE UEM, you must add a SAML resource in AuthPoint. You must also create an authentication policy for the Workspace ONE UEM resource to determine which users can authenticate and log in to Workspace ONE UEM and which authentication methods they can use (Push, QR code, and OTP).

Add a Workspace ONE UEM Resource in AuthPoint

From the AuthPoint management UI:

  1. From the navigation menu, select Resources.
  2. From the Choose a Resource Type drop-down list, select SAML. Click Add Resource.

  1. On the SAML page, in the Name text box, type a name for this resource.
  2. From Application Type drop down list, select VMware Workspace ONE.
  3. In the Service Provider Entity ID text box, type the entityID value from the Workspace ONE UEM settings file.
  4. In the Assertion Consumer Service text box, type the AssertionConsumerService value from the Workspace ONE UEM settings file. In our example, this value is https://example.awmdm.com/AirWatch/SAML/AssertionService.ashx?binding=HttpPost.
  5. From the User ID sent on redirection to service provider drop down list, select Email.
  6. From the Signature Method drop down list, select SHA-256.
  7. Make sure Encryption enabled is disabled.
  8. In the AuthPoint Certificate drop-down list, select the certificate to associate with your resource. This must be the same certificate that you downloaded the metadata for in the previous section.
  9. Click Save.

Add a Group in AuthPoint

You must have at least one user group in AuthPoint to configure MFA. If you already have a group, you do not have to add another group.

To add a group to AuthPoint:

  1. From the navigation menu, select Groups.
  2. Click Add Group.
    The New Group page appears.

Screenshot that shows the Groups page.

  1. In the Name text box, type a descriptive name for the group.
  2. (Optional) In the Description text box, type a description of the group.

Screen shot of the New Group page.

  1. Click Save.
    Your group is listed on the Groups page.

Screenshot of the Save button on the New Group page.

Add an Authentication Policy to AuthPoint

Authentication policies specify which resources users can authenticate to and which authentication methods they can use (Push, QR code, and OTP).

You must have at least one authentication policy in AuthPoint that includes the Workspace ONE UEM resource. If you already have authentication policies, you do not have to create a new authentication policy. You can add this resource to your existing authentication policies.

Users that do not have an authentication policy for a specific resource cannot authenticate to log in to that resource.

To configure an authentication policy:

  1. From the navigation menu, select Authentication Policies.
  2. Click Add Policy.

Screenshot of the Add Policy button on the Authentication Policies page.

  1. Type a name for this policy.
  2. From the Select the authentication options drop-down list, select Authentication options and select which authentication options users can choose from when they authenticate.

    For SAML resources, if you select more than one authentication option, users must select one of the available options when they authenticate. For example, if you select OTP and Push, users can choose to type their OTP or approve a push to authenticate. You cannot require that they do both.

  1. Select which groups this policy applies to. You can select more than one group. To configure this policy to apply to all groups, select All Groups.
  2. Select the resource that you created in the previous section. If you want this policy to apply to additional resources, select each resource this policy applies to. To configure this policy to apply to all resources, select All Resources.

Screenshot of the Add Policy page with the groups and resources selected

  1. (Optional) If you have configured policy objects such as a Network Location, select which policy objects apply to this policy. When you add a policy object to a policy, the policy only applies to user authentications that match the conditions of the policy objects. For example, if you add a Network Location to a policy, the policy only applies to user authentications that come from that Network Location. Users who only have a policy that includes a Network Location do not get access to the resource when they authenticate outside of that Network Location (because they do not have a policy that applies, not because authentication is denied).

    If you configure policy objects, we recommend that you create a second policy for the same groups and resources without the policy objects. The policy with the policy objects should have a higher priority.

Screenshot of the Policy Objects drop-down list.

  1. Click Save.
    Your policy is created and added to the end of the policy list.

    When you create a new policy, we recommend that you review the order of your policies. AuthPoint always adds new policies to the end of the policy list.

Screenshot of the Save button on the Add Policy page.

Add Users to AuthPoint

Before you assign users to a group, you must add the users to AuthPoint. There are two ways to add AuthPoint user accounts:

  • Sync users from an external user database
  • Add local AuthPoint users

Each user must be a member of a group. You must add at least one group before you can add users to AuthPoint.

Test the Integration

To test AuthPoint MFA with Workspace ONE UEM, you can authenticate with a mobile token on your mobile device. For SAML resources, you can choose any method (push, QR code, or one-time password).

In this example, we show the push authentication method (users receive a push notification in the mobile app that they must approve to authenticate).

  1. In a web browser, type the Workspace ONE UEM URL provided to you followed by ?GID plus your GroupID. The syntax is: https://consoleURL/AirWatch/Login?GID=GroupID. In our example, we type https://example.awmdm.com/AirWatch/Login?GID=M1234567.
    You are redirected to the AuthPoint authentication page.
  2. Type your email address or AuthPoint user name. Click Next.

    The user account must have the same email address in both AuthPoint and Workspace ONE UEM.

  3. If required, in the Password text box, type your password.
  4. For the authentication method, click Send Push.
  5. Approve the authentication request that is sent to your mobile device.
    You are logged in to the Workspace ONE UEM console.
