SugarCRM Integration with AuthPoint

Deployment Overview

This document describes how to set up multi-factor authentication (MFA) for SugarCRM with AuthPoint, and configure SugarCRM to integrate with AuthPoint SAML.

SugarCRM must already be configured and deployed before you set up MFA with AuthPoint. SugarCRM can be configured to support MFA in several modes. For this integration, we set up SAML with AuthPoint.

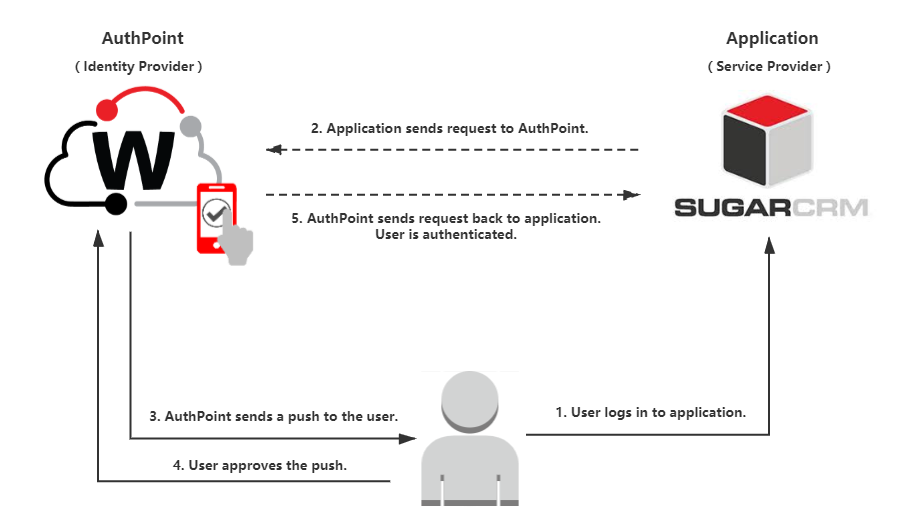

SugarCRM Authentication Data Flow with AuthPoint

AuthPoint communicates with various cloud-based services and service providers with the SAML protocol. This diagram shows the data flow of an MFA transaction for a SugarCRM.

Topology

Before You Begin

Before you begin these procedures, make sure that:

Configure SugarCRM

To start, you must download the metadata file from the Resources page in the AuthPoint management UI. Once you have the metadata file, you can configure SugarCRM.

  1. Log in to WatchGuard Cloud.
  2. From the navigation menu, select Configure > AuthPoint. If you have a Service Provider account, you must first pivot to your Subscriber view.
  3. Select Resources.
  4. Click Certificate.

  1. Next to AuthPoint certificate you will associate with your resource, click and select Download Metadata.

    We recommend that you choose the certificate with the latest expiration date.

    The AuthPoint metadata provides your resource, in this case SugarCRM, with information necessary to identify AuthPoint as a trusted identity provider.

  1. Log in to SugarCRM as an administrator.

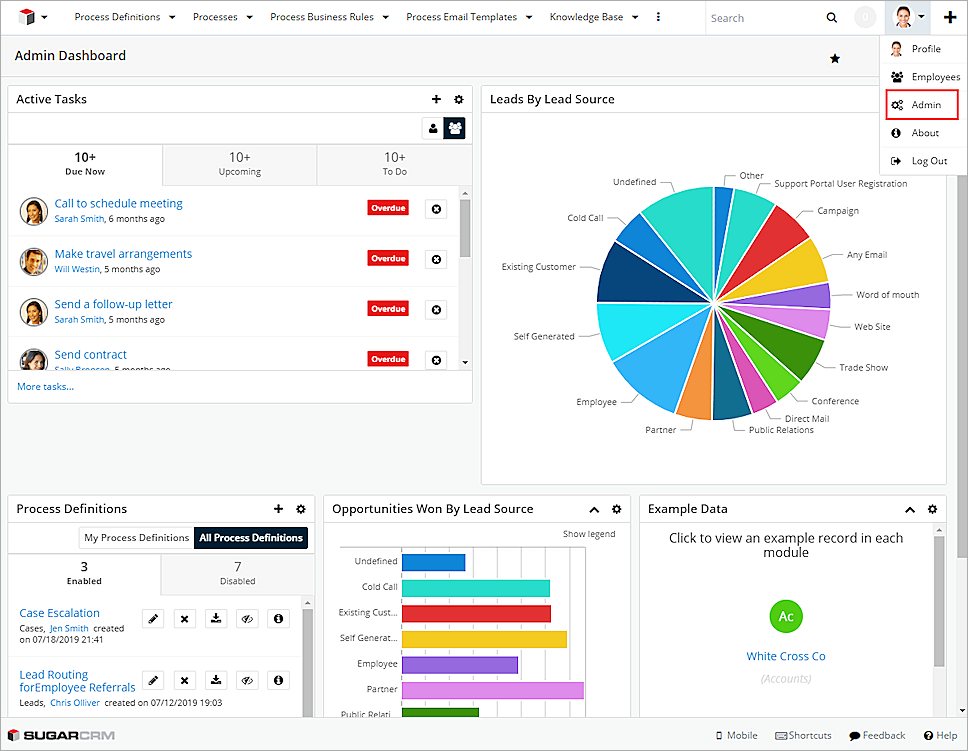

  2. Open the account menu and select Admin.

Click admin in SugarCRM

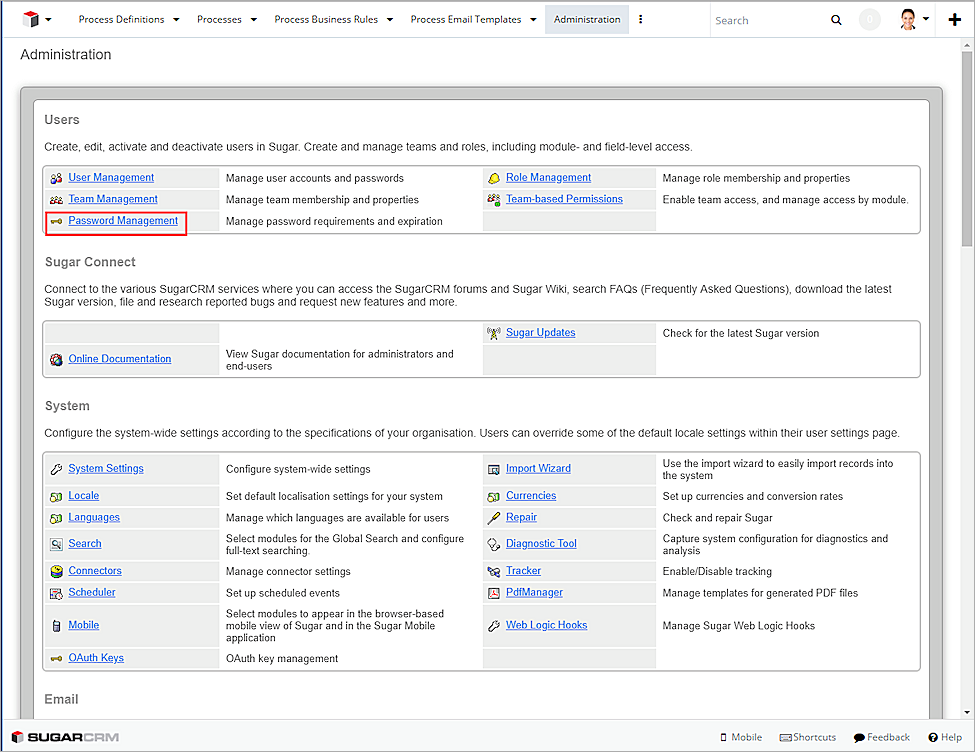

  1. In the Users section, click Password Management.

Click passwordmanagement in users section

  1. In the SAML Authentication section, select the Enable SAML Authentication check box.

Enable SAML Authentication

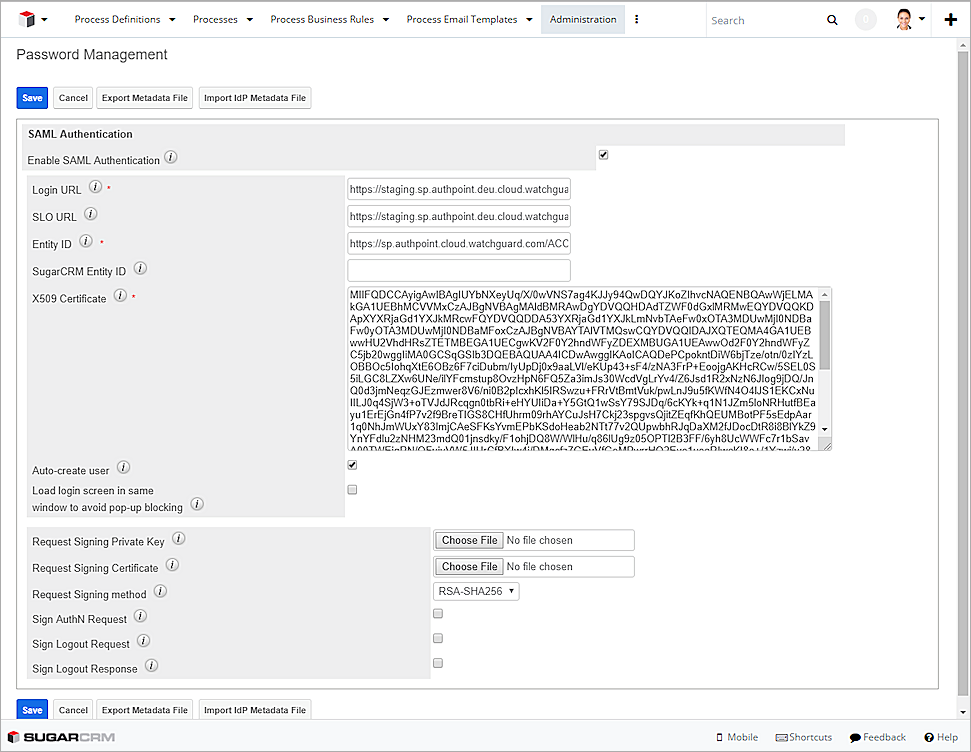

  1. Click Import IdP Metadata File and upload your AuthPoint metadata file. Click Save.

import the metadata file

Configure AuthPoint

Before AuthPoint can receive authentication requests from SugarCRM, you must specify the SugarCRM client as a SAML resource in AuthPoint. You must also assign the SugarCRM resource to the user group that will authenticate through SugarCRM.

Add a SAML Resource in AuthPoint

From the AuthPoint management UI:

  1. From the navigation menu, select Resources.
  2. From the Choose a Resource Type drop-down list, select SAML. Click Add Resource.

  1. In the Service Provider Entity ID text box, type php-saml.
  2. In the Assertion Consumer Service text box, type https://<your domain>.sugarcrm.com/index.php?module=Users&action=Authenticate.
  3. Click Save.

Add an Access Policy to AuthPoint

You must have at least one user group in AuthPoint for authentication with SugarCRM, and you must assign an access policy for the SugarCRM resource to that group. If you already have a group, you do not have to add another group.

In the AuthPoint management UI:

  1. From the navigation menu, select Groups.
  2. To add a new group, click Add Group. If you already have a group that you want to use, select the group to edit it.

  1. In the Name text box, type a descriptive name for the group.
  2. (Optional) In the Description text box, type a description of the group.

  1. In the Access Policy section, click Add Policy.

  1. In the Add Policy dialog box, from the Resource drop-down list, select the resource you want to add an access policy for.
  2. (Optional) To require that users type their password before they authenticate for this resource, select the Require Password Authentication toggle.
  3. Select the authentication options that users in this group can choose from when they authenticate.

    For SAML resources, if you select more than one authentication option, users must choose one of the available options when they authenticate. For example, if you select OTP and Push, users can choose to type their OTP or approve a push to authenticate. You cannot require that they do both.

  1. Click Add.

  1. (Optional) Add one or more safe locations to your group. For more information about safe locations and detailed instructions to add them, see About Safe Locations.
  2. Click Save.

Before you assign users to a group, you must add them to AuthPoint. You can manually add user accounts or import user accounts from your LDAP database. For more information on how to add user accounts, see Add User Accounts.

Test the Integration

To test the integration of AuthPoint and configuration of your SugarCRM, you can authenticate with a mobile token on your mobile device. You can choose any method (one-time password, QR code, or push). In this example, we show the push authentication method (users receive a push notification in the mobile app that they must approve to authenticate).

If you have not done so, you must create a new user in SugarCRM with the same name as your Authpoint user.

  1. In a web browser, go to the SugarCRM URL.
  2. Type your email address or AuthPoint user name. Click Next.
  3. If required, in the Password text box, type your password.
  4. For the authentication method, select Push.
  5. Click Send.
  6. Approve the authentication request that is sent to your mobile device.
    You are logged in to SugarCRM .
