This document describes how to set up multi-factor authentication (MFA) for Rapid7 Insight Cloud with AuthPoint as an identity provider. Rapid7 Insight Cloud must already be configured and deployed before you set up MFA with AuthPoint.
Rapid7 Insight Cloud Authentication Data Flow with AuthPoint

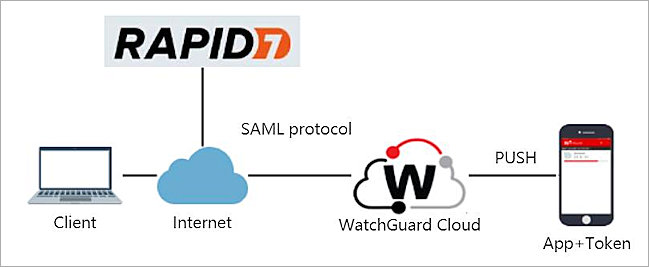

AuthPoint communicates with various cloud-based services and service providers with the SAML protocol. This diagram shows the data flow of an MFA transaction for Rapid7 Insight Cloud.
Before You Begin
Before you begin these procedures, make sure that:
- End-users can log in to Rapid7 Insight Cloud
- A token is assigned to a user in AuthPoint
- You have an AuthPoint identity provider (IdP) certificate (see Certificate Management)
- You have an IdP portal resource (see Configure the IdP Portal)
To start, you must download the metadata file from the Certificate Management page in the AuthPoint management UI. After you have that, you can configure Rapid7 Insight Cloud.
From the WatchGuard Cloud web UI:
- Log in to WatchGuard Cloud.
- From the navigation menu, select Configure > AuthPoint. If you have a Service Provider account, you must select an account from Account Manager.
- Select Resources.
- Click Certificate.
- Next to AuthPoint certificate you will associate with your resource, click and select Download Metadata and Download Certificate. We recommend that you choose the certificate with the latest expiration date.
The AuthPoint metadata provides your resource, in this case Rapid7 Insight Cloud, with information necessary to identify AuthPoint as a trusted identity provider.
- Log in to Rapid7 Insight Cloud as an administrator.

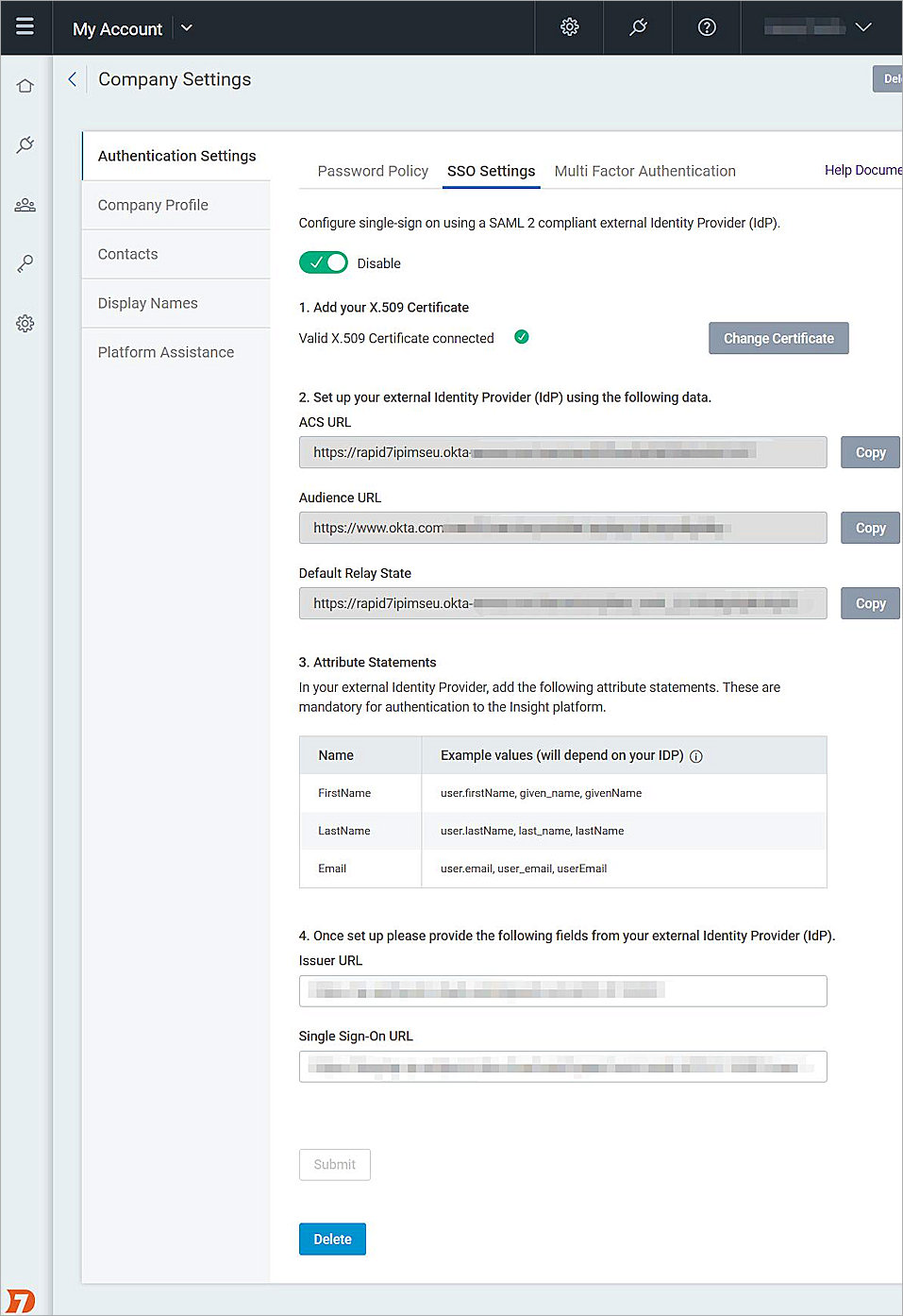

- Select Settings > Authentication Settings > SSO Settings.
- Select the Enable slider.
- In the Add your X.509 Certificate section, upload the AuthPoint certificate you downloaded previously.
- Copy the ACS URL and Audience URL values. You need this information to create a SAML resource in the next section.
- Open the AuthPoint metadata file you downloaded and find the entityID and SingleSignOnService Location values.
- In the Issuer URL text box, type or paste the entityID value from the AuthPoint metadata file.
- In the SSingle Sign-On URL text box, type or paste the SingleSignOnService Location value from the AuthPoint metadata file.
- Click Submit.
Before AuthPoint can receive authentication requests from Rapid7 Insight Cloud, you must add a SAML resource in AuthPoint. You must also create an authentication policy for the Rapid7 Insight Cloud resource to determine which users can authenticate and log in to Rapid7 Insight Cloud and which authentication methods they can use (Push, QR code, and OTP).
Add a SAML Resource in AuthPoint
From the AuthPoint management UI:
- From the navigation menu, select Resources.
- From the Choose a Resource Type drop-down list, select SAML. Click Add Resource.
- On the SAML page, in the Name text box, type a name for this resource.
- From the Application Type drop-down list, select Rapid7.
- In the Service Provider Entity ID text box, type or paste the Audience URL value copied from Rapid7 Insight Cloud.
- In the Assertion Consumer Service text box, type or paste the ACS URL value copied from Rapid7 Insight Cloud.
- From the User ID sent on redirection to service provider drop-down list, select Email. The user ID is the attribute for an AuthPoint user that is compared to the user name in your application. These values must match.
- From the Signature Method drop-down list, select SHA-256.
- From the AuthPoint Certificate drop-down list, select the AuthPoint certificate to associate with your resource. This must be the same certificate that you used to download the metadata file in the Configure Rapid7 Insight Cloud section.
- Click Save.
Rapid7 Insight Cloud only supports identity provider initiated login. To use MFA with Rapid7 Insight Cloud, you must add an IdP portal resource. For detailed steps, see Configure the IdP Portal.
Add a Group in AuthPoint
You must have at least one user group in AuthPoint to configure MFA. If you already have a group, you do not have to add another group.
To add a group to AuthPoint:
- From the navigation menu, select Groups.
- Click Add Group.
The New Group page appears.
- In the Name text box, type a descriptive name for the group.
- (Optional) In the Description text box, type a description of the group.
- Click Save.
Your group is listed on the Groups page.
Add an Authentication Policy to AuthPoint
Authentication policies specify which resources users can authenticate to and which authentication methods they can use (Push, QR code, and OTP).
You must have at least one authentication policy in AuthPoint that includes the Rapid7 Insight Cloud resource. If you already have authentication policies, you do not have to create a new authentication policy. You can add this resource to your existing authentication policies.
Users that do not have an authentication policy for a specific resource cannot authenticate to log in to that resource.
To configure an authentication policy:
- From the navigation menu, select Authentication Policies.
- Click Add Policy.
- Type a name for this policy.
- From the Select the authentication options drop-down list, select Authentication options and select which authentication options users can choose from when they authenticate.
For SAML resources, if you select more than one authentication option, users must select one of the available options when they authenticate. For example, if you select OTP and Push, users can choose to type their OTP or approve a push to authenticate. You cannot require that they do both.
- Select which groups this policy applies to. You can select more than one group. To configure this policy to apply to all groups, select All Groups.
- Select the resource that you created in the previous section. If you want this policy to apply to additional resources, select each resource this policy applies to. To configure this policy to apply to all resources, select All Resources.
(Optional) If you have configured policy objects such as a Network Location, select which policy objects apply to this policy. When you add a policy object to a policy, the policy only applies to user authentications that match the conditions of the policy objects. For example, if you add a Network Location to a policy, the policy only applies to user authentications that come from that Network Location. Users who only have a policy that includes a Network Location do not get access to the resource when they authenticate outside of that Network Location (because they do not have a policy that applies, not because authentication is denied).
If you configure policy objects, we recommend that you create a second policy for the same groups and resources without the policy objects. The policy with the policy objects should have a higher priority.
- Click Save.
Your policy is created and added to the end of the policy list.
When you create a new policy, we recommend that you review the order of your policies. AuthPoint always adds new policies to the end of the policy list.
Add Users to AuthPoint
Before you assign users to a group, you must add the users to AuthPoint. There are two ways to add AuthPoint user accounts:
- Sync users from an external user database
- Add local AuthPoint users
Each user must be a member of a group. You must add at least one group before you can add users to AuthPoint.
To import users from Active Directory, Azure Active Directory, or an LDAP database, you must add an external identity in the AuthPoint management UI. External identities connect to user databases to get user account information and validate passwords.
- To sync users from Active Directory or an LDAP database, you must add an LDAP external identity
- To sync users from Azure Active Directory, you must add an Azure AD external identity
When you sync users from an external user database, you can sync any number of users and they are all added to AuthPoint at one time. Users synced from an external user database use the password defined for their user account as their AuthPoint password.
You can create local AuthPoint users on the Users page in the AuthPoint management UI. Because you can create only one user at a time, you most commonly do this when you want to create test users or to add only a small number of users.
Unlike users synced from an external user database, local AuthPoint users define and manage their own AuthPoint password. When you add a local user account, the user receives an email that prompts them to set their password.
To learn how to add local AuthPoint user accounts, see Add Local AuthPoint Users.
Test the Integration
To test AuthPoint MFA with Rapid7 Insight Cloud, you can authenticate with a mobile token on your mobile device. For SAML resources, you can choose any method (push, QR code, or one-time password).
In this example, we show the push authentication method (users receive a push notification in the mobile app that they must approve to authenticate).
The email address that you use must be associated with both your AuthPoint and Rapid7 Insight Cloud user accounts.
To test the integration:
- In a web browser, go to the IdP portal. You can see the URL for the IdP portal when you edit your IdP portal resource in the AuthPoint management UI.
- Type your email address or AuthPoint user name. Click Next.
- If required, in the Password text box, type your password.
- For the authentication method, select Send Push.
- Approve the authentication request that is sent to your mobile device.
- In the IdP portal, select the Rapid7 Insight Cloud tile.

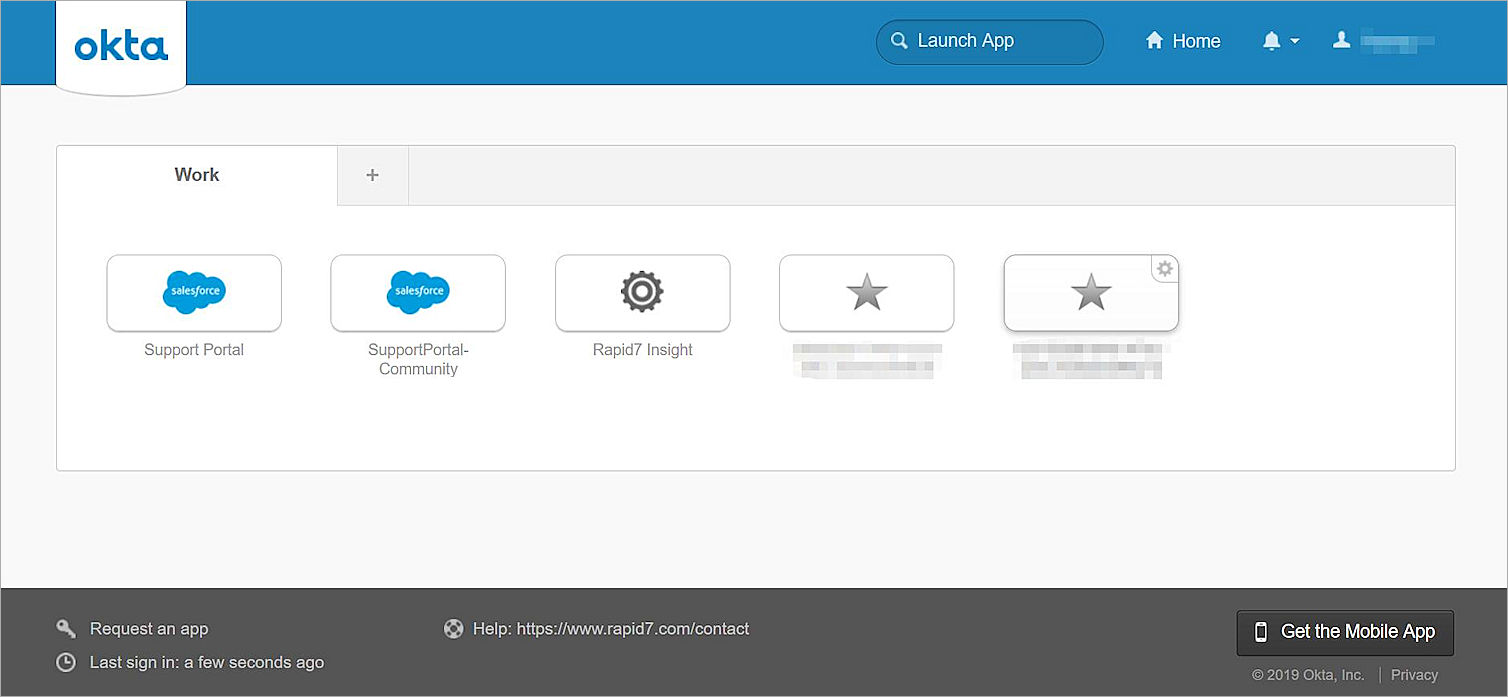

A new tab opens in your browser with an Okta page that is similar to the IdP portal.
- Select Rapid7 Insight.
You are logged in to Rapid7 Insight Cloud.
