Oracle Identity Cloud Service Integration with AuthPoint

Deployment Overview

This document describes how to set up multi-factor authentication (MFA) for Oracle Identity Cloud Service with AuthPoint as an identity provider.

Your Oracle Identity Cloud Service must already be configured and deployed before you set up MFA with AuthPoint. Your Oracle Identity Cloud Service can be configured to support MFA in several modes. For this integration, we set up Oracle Identity Cloud Service with AuthPoint.

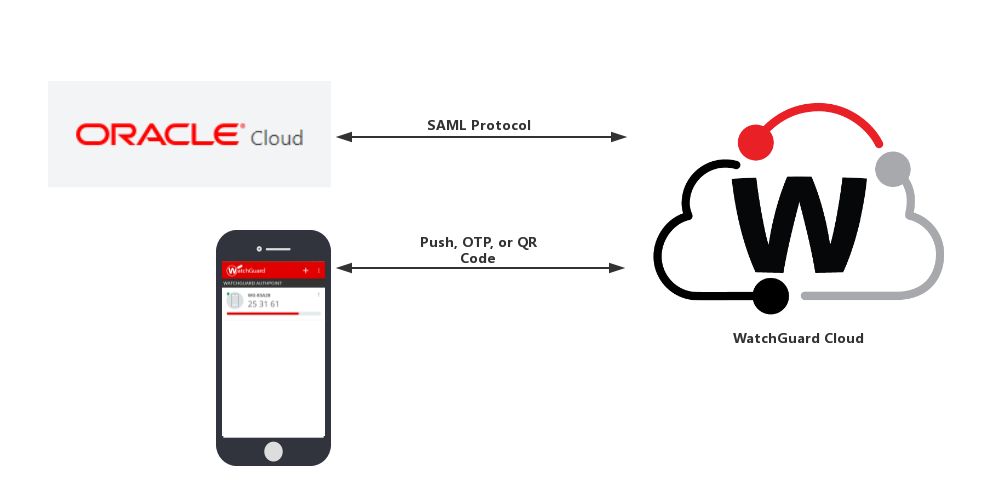

Oracle Identity Cloud Service Authentication Data Flow with AuthPoint

AuthPoint communicates with various cloud-based services and service providers with the SAML protocol. This diagram shows the data flow of an MFA transaction for Oracle Identity Cloud Service.

Before You Begin

Before you begin these procedures, make sure that:

Configure Oracle Identity Cloud Service

To start, you must download the metadata file from the Certificate Management page in the AuthPoint management UI. After you have the metadata file, you can configure Oracle Cloud.

  1. Log in to WatchGuard Cloud.
  2. From the navigation menu, select Configure > AuthPoint. If you have a Service Provider account, you must select an account from Account Manager.
  3. Select Resources.
  4. Click Certificate.

  1. Next to AuthPoint certificate you will associate with your resource, click and select Download Metadata. We recommend that you choose the certificate with the latest expiration date. If you do not have a certificate, or if all of your certificates have expired, click Add Certificate and use the newly created certificate.

    The AuthPoint metadata provides your resource, in this case Oracle Cloud, with information necessary to identify AuthPoint as a trusted identity provider.

  1. Log in to Oracle Cloud as an administrator.

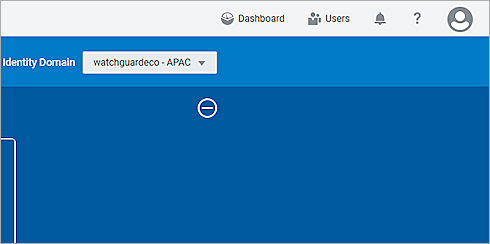

  2. Click Users.

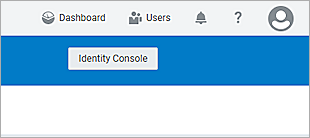

  1. Click Identity Console.

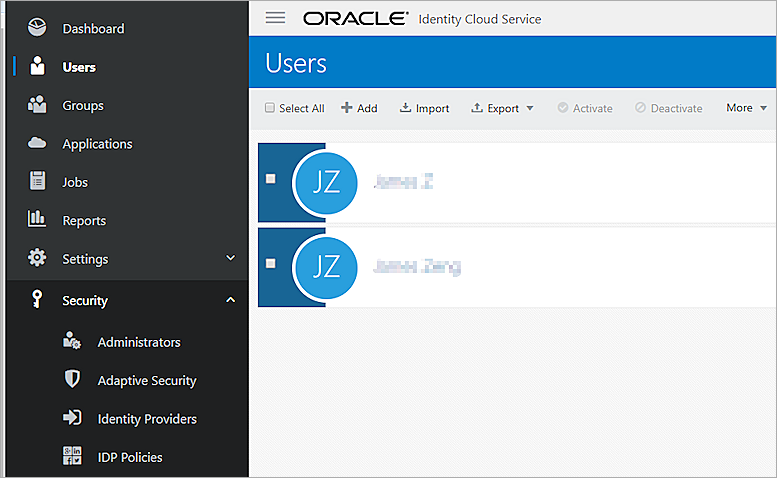

  1. Select Security > Identity Provider.

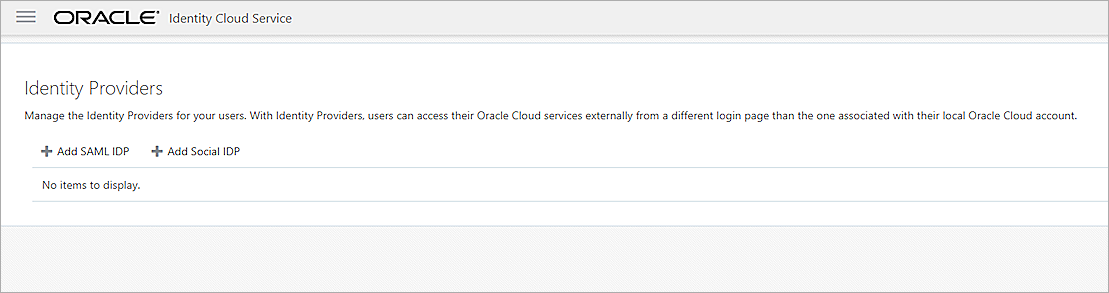

  1. Click Add SAML IDP.

  1. In the Name text box, type a name for this identity provider. We recommend you use AuthPoint. Click Next.
  2. Upload the AuthPoint metadata file.
  3. Select the Include Signing Certificate check box. Click Next.
  4. For Identity Provider User Attribute, select Name ID.
  5. For Oracle Identity Cloud Service User Attribute, select Username. To do this, you must enable email address as name ID in Oracle Cloud. Click Next.
  6. Copy the Provider ID and Assertion Consumer Service URL metadata values (used to configure the Oracle Cloud resource in AuthPoint) and configure AuthPoint as described below. When you have configured AuthPoint, click Next.

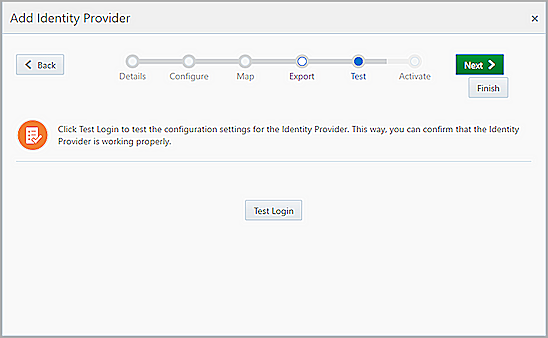

  7. Click Test Login.

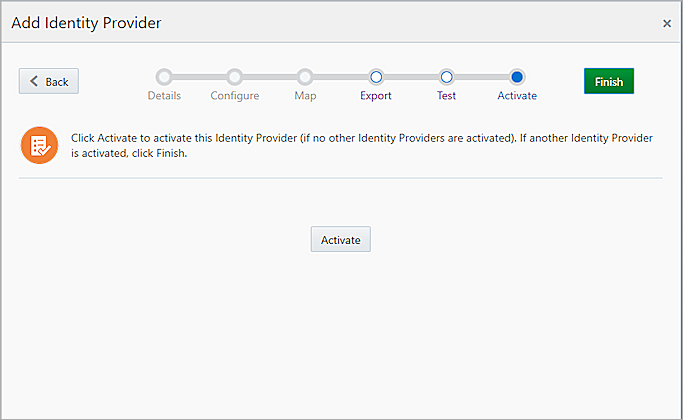

  1. If your connection is successful, click Activate.
  2. Click Finish.

Configure AuthPoint

Before AuthPoint can receive authentication requests from Oracle Identity Cloud Service, you must add a SAML resource in AuthPoint. You must also create an authentication policy for the Oracle Identity Cloud Service resource to determine which users can authenticate and log in to Oracle Identity Cloud Service and which authentication methods they can use (Push, QR code, and OTP).

Add a SAML Resource in AuthPoint

From the AuthPoint management UI:

  1. From the navigation menu, select Resources. Click Add Resource.
    The Add Resource page opens.

  1. From the Type drop-down list, select SAML.
    Additional fields appear.

  1. From the Application Type drop-down list, select Oracle Identity.
  2. In the Service Provider Entity ID text box, type the Provider ID value from Oracle Identity Cloud Service.
  3. In the Assertion Consumer Service text box, type the Assertion Consumer Service URL value from Oracle Identity Cloud Service.
  4. From the AuthPoint Certificate drop-down list, select the AuthPoint certificate to associate with your resource. This must be the same certificate that you downloaded the metadata for in the previous section.
  5. Click Save.

Add a Group in AuthPoint

You must have at least one user group in AuthPoint to configure MFA. If you already have a group, you do not have to add another group.

To add a group to AuthPoint:

  1. From the navigation menu, select Groups.
  2. Click Add Group.
    The New Group page appears.

Screenshot that shows the Groups page.

  1. In the Name text box, type a descriptive name for the group.
  2. (Optional) In the Description text box, type a description of the group.

Screen shot of the New Group page.

  1. Click Save.
    Your group is listed on the Groups page.

Screenshot of the Save button on the New Group page.

Add an Authentication Policy to AuthPoint

Authentication policies specify which resources users can authenticate to and which authentication methods they can use (Push, QR code, and OTP).

You must have at least one authentication policy in AuthPoint that includes the Oracle Identity Cloud Service resource. If you already have authentication policies, you do not have to create a new authentication policy. You can add this resource to your existing authentication policies.

Users that do not have an authentication policy for a specific resource cannot authenticate to log in to that resource.

To configure an authentication policy:

  1. From the navigation menu, select Authentication Policies.
  2. Click Add Policy.

Screenshot of the Add Policy button on the Authentication Policies page.

  1. Type a name for this policy.
  2. From the Select the authentication options drop-down list, select Authentication options and select which authentication options users can choose from when they authenticate.

    For SAML resources, if you select more than one authentication option, users must select one of the available options when they authenticate. For example, if you select OTP and Push, users can choose to type their OTP or approve a push to authenticate. You cannot require that they do both.

  1. Select which groups this policy applies to. You can select more than one group. To configure this policy to apply to all groups, select All Groups.
  2. Select the resource that you created in the previous section. If you want this policy to apply to additional resources, select each resource this policy applies to. To configure this policy to apply to all resources, select All Resources.

Screenshot of the Add Policy page with the groups and resources selected

  1. (Optional) If you have configured policy objects such as a Network Location, select which policy objects apply to this policy. When you add a policy object to a policy, the policy only applies to user authentications that are the same as the conditions of the policy objects. For example, if you add a Network Location to a policy, the policy only applies to user authentications that come from that Network Location. Users who only have a policy that includes a Network Location do not get access to the resource when they authenticate outside of that Network Location (because they do not have a policy that applies, not because authentication is denied).

    If you configure policy objects, we recommend that you create a second policy for the same groups and resources without the policy objects. The policy with the policy objects should have a higher priority.

Screenshot of the Policy Objects drop-down list.

  1. Click Save.
    Your policy is created and added to the end of the policy list.

    When you create a new policy, we recommend that you review the order of your policies. AuthPoint always adds new policies to the end of the policy list.

Screenshot of the Save button on the Add Policy page.

Add Users to AuthPoint

Before you assign users to a group, you must add the users to AuthPoint. There are two ways to add AuthPoint user accounts:

  • Sync users from an external user database
  • Add local AuthPoint users

Each user must be a member of a group. You must add at least one group before you can add users to AuthPoint.

Test the Integration

To test the integration of AuthPoint and configuration of your Oracle Identity Cloud Service, you can authenticate with a mobile token on your mobile device. You can choose any method (one-time password, QR code, or push).

In this example, we show the push authentication method (users receive a push notification in the mobile app that they must approve to authenticate).

  1. In a web browser, go to the Oracle Identity Cloud Service URL.
  2. Type your email address or AuthPoint user name. Click Next.
  3. If required, in the Password text box, type your password.
  4. For the authentication method, select Push.
  5. Click Send.
  6. Approve the authentication request that is sent to your mobile device.
    You are logged in to Oracle Identity Cloud Service.
