This document describes how to set up multi-factor authentication (MFA) for Datadog with AuthPoint as an identity provider. Datadog must already be configured and deployed before you set up MFA with AuthPoint.
Datadog can be configured to support MFA in several modes. For this integration, we set up SAML with AuthPoint.
Datadog Authentication Data Flow with AuthPoint
AuthPoint communicates with various cloud-based services and service providers with the SAML protocol. This diagram shows the data flow of an MFA transaction for Datadog with the SAML protocol.
Before You Begin
Before you begin these procedures, make sure that:
- End-users can log in to Datadog
- A token is assigned to a user in AuthPoint
- You have an AuthPoint identity provider (IdP) certificate (see Certificate Management)
To start, you must download the metadata file from the Resources page in the AuthPoint management UI. After you have that, you can configure Datadog.
From the WatchGuard Cloud web UI:
- From the navigation menu, select Configure > AuthPoint. If you have a Service Provider account, you must select an account from Account Manager.
- Select Resources.
- Click Certificate.
- Next to AuthPoint certificate you will associate with your resource, click and select Download Metadata. We recommend that you choose the certificate with the latest expiration date.
The AuthPoint metadata provides your resource, in this case Datadog, with information necessary to identify AuthPoint as a trusted identity provider.
- Log in to Datadog as an administrator.

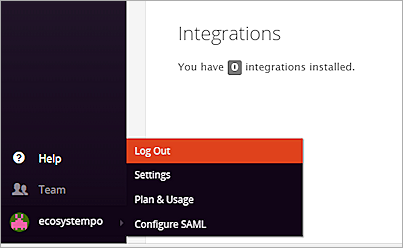

- Click your user name and select Configure SAML.
- Click Choose File and browse to the AuthPoint metadata file you downloaded.
- Click Upload File.

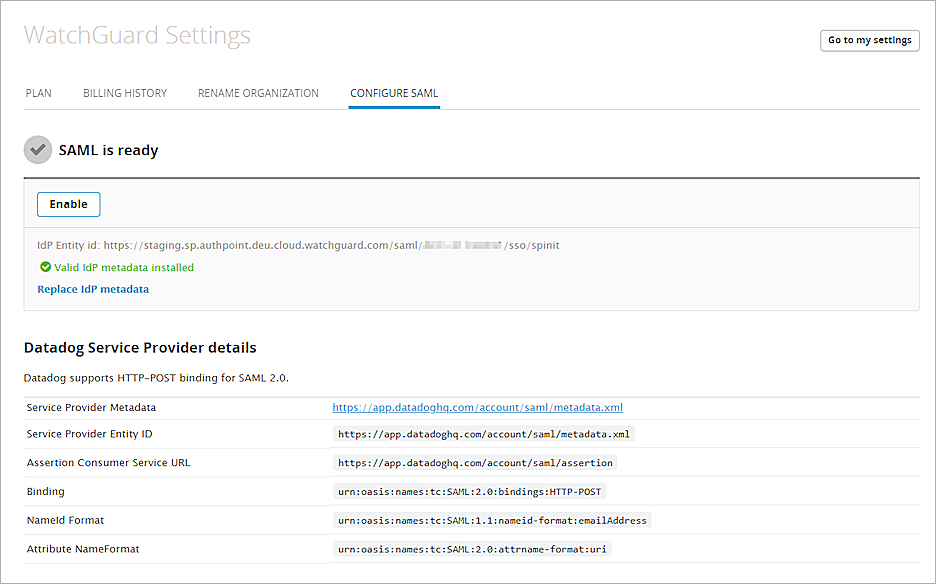

- Click Enable.
- Copy the Service Provider Entity ID and Assertion Consumer Service URL values. You must provide these values when you create the SAML resource in AuthPoint.
Before AuthPoint can receive Datadog authentication requests from Datadog, you must specify the Datadog client as a SAML resource in AuthPoint. You must also assign that SAML resource to the user group that will authenticate through Datadog.
Add a SAML Resource in AuthPoint
From the AuthPoint management UI:
- From the navigation menu, select Resources.
- From the Choose a Resource Type drop-down list, select SAML. Click Add Resource.
- In the Service Provider Entity ID text box, type https://app.datadoghq.com/account/saml/metadata.xml.
- In the Assertion Consumer Service text box, type https://app.datadoghq.com/account/saml/assertion.
- From the AuthPoint Certificate drop-down list, select the AuthPoint certificate to associate with your resource. This must be the same certificate that you downloaded the metadata for in the previous section.
- Click Save.
Add an Access Policy to AuthPoint
You must have at least one user group in AuthPoint for authentication with Datadog, and you must assign an access policy for the Datadog AuthPoint resource to that group. If you already have a group, you do not have to add another group.
In the AuthPoint management UI:
- From the navigation menu, select Groups.
- To add a new group, click Add Group. If you already have a group that you want to use, select the group to edit it.
- In the Name text box, type a descriptive name for the group.
- (Optional) In the Description text box, type a description of the group.
- In the Access Policy section, click Add Policy.
- In the Add Policy dialog box, from the Resource drop-down list, select the resource you want to add an access policy for.
- (Optional) To require that users type their password before they authenticate for this resource, enable the Require Password Authentication toggle.
- Select the authentication options that users in this group can select from when they authenticate.
For SAML resources, if you select more than one authentication option, users must select one of the available options when they authenticate. For example, if you select OTP and Push, users can choose to type their OTP or approve a push to authenticate. You cannot require that they do both.
- Click Add.
- (Optional) Add one or more safe locations to your group. For more information about safe locations and detailed instructions to add them, see About Safe Locations.
- Click Save.
Add Users to AuthPoint
Before you assign users to a group, you must add the users to AuthPoint. There are two ways to add AuthPoint user accounts:
- Sync users from an external user database
- Add local AuthPoint users
Each user must be a member of a group. You must add at least one group before you can add users to AuthPoint.
To import users from Active Directory, Azure Active Directory, or an LDAP database, you must add an external identity in the AuthPoint management UI. External identities connect to user databases to get user account information and validate passwords.
- To sync users from Active Directory or an LDAP database, you must add an LDAP external identity
- To sync users from Azure Active Directory, you must add an Azure AD external identity
When you sync users from an external user database, you can sync any number of users and they are all added to AuthPoint at one time. Users synced from an external user database use the password defined for their user account as their AuthPoint password.
You can create local AuthPoint users on the Users page in the AuthPoint management UI. Because you can create only one user at a time, you most commonly do this when you want to create test users or to add only a small number of users.
Unlike users synced from an external user database, local AuthPoint users define and manage their own AuthPoint password. When you add a local user account, the user receives an email that prompts them to set their password.
To learn how to add local AuthPoint user accounts, see Add Local AuthPoint Users.
Test the Integration
To test the integration of AuthPoint and Datadog, you can authenticate with a mobile token on your mobile device. You can choose any method (one-time password, QR code, or push).
In this example, we show the push authentication method (users receive a push notification in the mobile app that they must approve to authenticate).
- In a web browser, go to the Datadog URL.
- Type your email address or AuthPoint user name. Click Next.
- If required, in the Password text box, type your AuthPoint password.
- For the authentication method, select Push.
- Click Send.
- Approve the authentication request that is sent to your mobile device.
You are logged in to <third party tool>.
