ConnectWise Control Integration with AuthPoint

Deployment Overview

This document describes how to set up multi-factor authentication (MFA) for ConnectWise Control with AuthPoint as an identity provider. ConnectWise Control must already be configured and deployed before you set up MFA with AuthPoint.

ConnectWise Control can be configured to support MFA in several modes. For this integration, we set up SAML with AuthPoint.

This integration was tested with ConnectWise Control v22.6.8531.8234.

The steps to configure AuthPoint MFA are the same for ConnectWise Control Access and ConnectWise Control Support.

ConnectWise Control Authentication Data Flow with AuthPoint

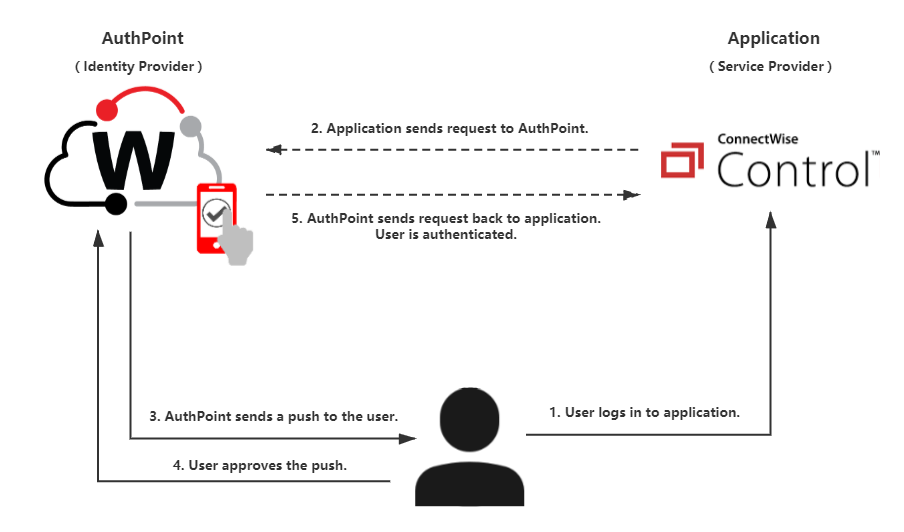

AuthPoint communicates with various cloud-based services and service providers with the SAML protocol. This diagram shows the data flow of an MFA transaction for ConnectWise Control.

Before You Begin

Before you begin these procedures, make sure that:

Configure ConnectWise Control

Create a New Role

To create a new role:

  1. Log in to ConnectWise Control Support as an administrator.
  2. From the navigation menu, select Admin > Security.
  3. In the Roles section, click Create Role.

The role name cannot be changed after creation. The role name must be the same as the group name the AuthPoint user is associated with in AuthPoint.

Screenshot of the Create Role dialog box

  1. Click Save Role.

Add a SAML User Source

To start, you must get the metadata file URL from the Certificate Management page in the AuthPoint management UI. You can then configure ConnectWise Control.

From the WatchGuard Cloud web UI:

  1. From the navigation menu, select Configure > AuthPoint. If you have a Service Provider account, you must select an account from Account Manager.
  2. Select Resources.

  1. Click Certificate.

  1. To associate the certificate with your resource, next to the AuthPoint certificate, click and select Copy Metadata URL. We recommend that you choose the certificate with the latest expiration date. If you do not have a certificate, or if all of your certificates have expired, click Add Certificate and use the newly created certificate.

    The AuthPoint metadata provides your resource, in this case ConnectWise Control, with information necessary to identify AuthPoint as a trusted identity provider.

  1. Log in to ConnectWise Control Support as an administrator.
  2. From the navigation bar, select Admin > Security.

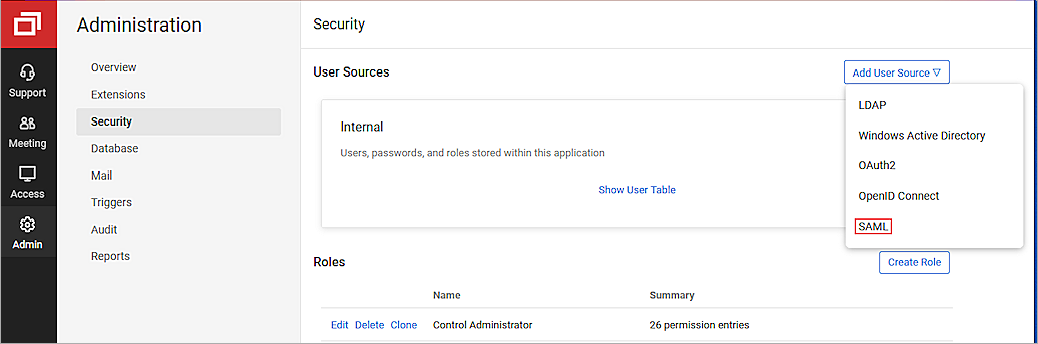

Screenshot of the ConnectWise Security page

  1. In the User Sources section, select Add User Source > SAML.

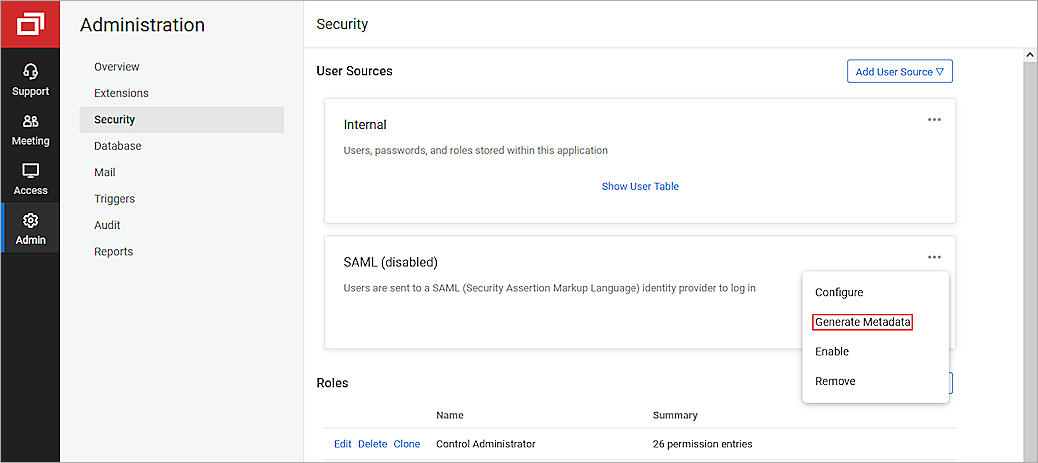

Screenshot of the ConnectWise User Sources SAML tile

  1. On the SAML(disabled) tile, click SAML options menu icon and select Generate Metadata.
    Keep the generated metadata file open and save it on your local computer for AuthPoint configuration.

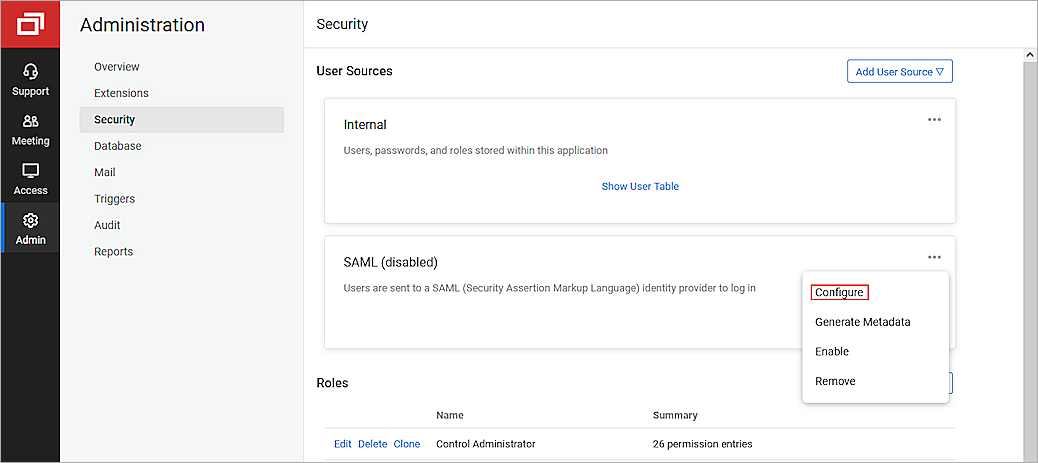

Screenshot of the ConnectWise User Sources SAML tile

  1. On the SAML(disabled)tile, click SAML options menu icon and select Configure.

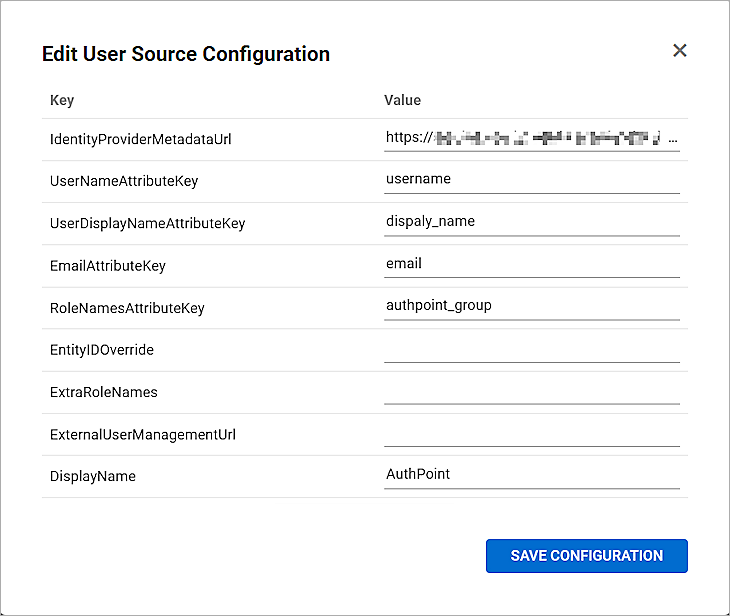

Screenshot of Edit User Source Configuration dialog box

  1. In the IdentityProviderMetadataUrl text box, paste the SAML metadata URL you copied from AuthPoint in the step to associate the certificate with your resource.
  2. In the UserNameAttributeKey text box, type username.
  3. In the UserDisplayNameAttributeKey text box, type display_name.
  4. In the EmailAttributeKey text box, type email.
  5. If you are using AuthPoint Groups to provide a role, in the RoleNamesAttributeKey text box, type authpoint_group. Otherwise, leave the text box empty. In our example, the name of user group in AuthPoint is ecotest, which is the same name as one of the ConnectWise Control roles. ConnectWise assigns the permissions for ecotest. If you are using “authpoint_group” in the RoleNamesAttributeKey, leave ExtraRoleNames blank.
  6. Alternatively, In the ExtraRoleNames text box, type a comma-separated list of ConnectWise Control roles that are applied to SAML users. If all roles are typed here, you can leave the RoleNamesAttributeKey text box empty.

    ExtraRoleNames is an optional text box that, if configured incorrectly, can grant unwanted permissions to your users. In most cases, users do not have to use this. When you add a role name to the ExtraRoleNames text box, it applies a role or roles to every SAML user.
    Only use ExtraRoleNames if:

    • You want a default role for all users authenticating with this user source.
    • Your SAML provider does not allow you to specify roles in any other text box which would be looked up by RoleNamesAttributeKey.

  1. In the DisplayName text box, type the SAML IDP name AuthPoint.
  2. Click Save Configuration.

Screenshot of the ConnectWise User Sources SAML tile

  1. On the SAML(AuthPoint)(disabled) tile, click SAML options menu icon and select Enable.
  2. Click Enable User Source.

Configure AuthPoint

Before AuthPoint can receive authentication requests from ConnectWise Control, you must add a SAML resource in AuthPoint. You must also create an authentication policy for the ConnectWise Control resource to determine which users can authenticate and log in to ConnectWise Control and which authentication methods they can use (Push, QR code, and OTP).

Add a SAML Resource in AuthPoint

From the AuthPoint management UI:

  1. From the navigation menu, select Resources. Click Add Resource.
    The Add Resource page opens.

  1. From the Type drop-down list, select SAML.
    Additional fields appear.

  1. On the SAML page, in the Name text box, type a name for this resource.
  2. From the Application Type drop-down list, select ConnectWise Control.
  3. Open the metadata file that you downloaded from ConnectWise Control in the previous section.
  4. In the Service Provider Entity ID text box, type or paste the entityID value from the ConnectWise Control metadata file.
  5. In the Assertion Consumer Service text box, type or paste the AssertionConsumerService Location value from the ConnectWise Control metadata file.
  6. From the User ID send on redirection to service provider drop-down list, select one of the items. In our example, we select Email.
  7. Leave the Logout URL text box blank.
  8. From the AuthPoint Certificate drop-down list, select the AuthPoint certificate to associate with your resource. This must be the same certificate that you copied the AuthPoint metadata URL in the previous section.
  9. Click Save.

Add a Group in AuthPoint

You must have at least one user group in AuthPoint to configure MFA. If you already have a group, you do not have to add another group.

To add a group to AuthPoint:

  1. From the navigation menu, select Groups.
  2. Click Add Group.
    The New Group page appears.

Screenshot that shows the Groups page.

  1. In the Name text box, type a descriptive name for the group.
  2. (Optional) In the Description text box, type a description of the group.

Screen shot of the New Group page.

  1. Click Save.
    Your group is listed on the Groups page.

Screenshot of the Save button on the New Group page.

Add an Authentication Policy to AuthPoint

Authentication policies specify which resources users can authenticate to and which authentication methods they can use (Push, QR code, and OTP).

You must have at least one authentication policy in AuthPoint that includes the ConnectWise Control resource. If you already have authentication policies, you do not have to create a new authentication policy. You can add this resource to your existing authentication policies.

Users that do not have an authentication policy for a specific resource cannot authenticate to log in to that resource.

To configure an authentication policy:

  1. From the navigation menu, select Authentication Policies.
  2. Click Add Policy.

Screenshot of the Add Policy button on the Authentication Policies page.

  1. Type a name for this policy.
  2. From the Select the authentication options drop-down list, select Authentication options and select which authentication options users can choose from when they authenticate.

    For SAML resources, if you select more than one authentication option, users must select one of the available options when they authenticate. For example, if you select OTP and Push, users can choose to type their OTP or approve a push to authenticate. You cannot require that they do both.

  1. Select which groups this policy applies to. You can select more than one group. To configure this policy to apply to all groups, select All Groups.
  2. Select the resource that you created in the previous section. If you want this policy to apply to additional resources, select each resource this policy applies to. To configure this policy to apply to all resources, select All Resources.

Screenshot of the Add Policy page with the groups and resources selected

  1. (Optional) If you have configured policy objects such as a Network Location, select which policy objects apply to this policy. When you add a policy object to a policy, the policy only applies to user authentications that are the same as the conditions of the policy objects. For example, if you add a Network Location to a policy, the policy only applies to user authentications that come from that Network Location. Users who only have a policy that includes a Network Location do not get access to the resource when they authenticate outside of that Network Location (because they do not have a policy that applies, not because authentication is denied).

    If you configure policy objects, we recommend that you create a second policy for the same groups and resources without the policy objects. The policy with the policy objects should have a higher priority.

Screenshot of the Policy Objects drop-down list.

  1. Click Save.
    Your policy is created and added to the end of the policy list.

    When you create a new policy, we recommend that you review the order of your policies. AuthPoint always adds new policies to the end of the policy list.

Screenshot of the Save button on the Add Policy page.

Add Users to AuthPoint

Before you assign users to a group, you must add the users to AuthPoint. There are two ways to add AuthPoint user accounts:

  • Sync users from an external user database
  • Add local AuthPoint users

Each user must be a member of a group. You must add at least one group before you can add users to AuthPoint.

To import users from Active Directory, Microsoft Entra ID, or an LDAP database, you must add an external identity in the AuthPoint management UI. External identities connect to user databases to get user account information and validate passwords.

  • To sync users from Active Directory or an LDAP database, you must add an LDAP external identity
  • To sync users from Microsoft Entra ID, you must add a Microsoft Entra ID external identity

When you sync users from an external user database, you can sync any number of users and they are all added to AuthPoint at one time. Users synced from an external user database use the password defined for their user account as their AuthPoint password.

To learn how to sync users, go to Sync Users from Active Directory or LDAP and Sync Users from Azure Active Directory.

You can create local AuthPoint users on the Users page in the AuthPoint management UI. Because you can create only one user at a time, you most commonly do this when you want to create test users or to add only a small number of users.

Unlike users synced from an external user database, local AuthPoint users define and manage their own AuthPoint password. When you add a local user account, the user receives an email that prompts them to set their password.

To learn how to add local AuthPoint user accounts, go to Add Local AuthPoint Users.

Test the Integration

To test AuthPoint MFA with ConnectWise Control, you can authenticate with a mobile token on your mobile device. You can choose any method (one-time password, QR code, or push).

In this example, we show the push authentication method (users receive a push notification in the mobile app that they must approve to authenticate).

  1. In a web browser, type https://<hostname>.screenconnect.com and press Enter. Find the URL in ConnectWise Instances.
  2. Click Login.

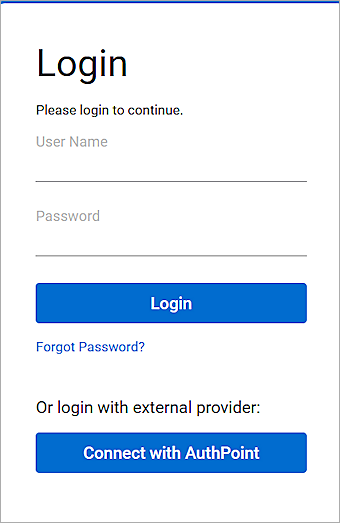

ScreenShot of ConnetWise Login page

  1. Click Connect with AuthPoint.
  2. Type your email address or AuthPoint user name. Click Next.
  3. In the Password text box, type your password.
  4. Click Send Push.
  5. Approve the authentication request that is sent to your mobile device.
    You are logged in to ConnectWise Control.
