SugarIdentity Integration with AuthPoint

Deployment Overview

This document describes how to set up multi-factor authentication (MFA) for applications and services in the SugarCRM® ecosystem that use SugarIdentity® with AuthPoint as an identity provider. SugarIdentity must already be configured and deployed before you set up MFA with AuthPoint, and your Sugar instance must be SugarIdentity-enabled.

SugarIdentity can be configured to support MFA in several modes. For this integration, we set up SAML with AuthPoint.

This integration was tested with v11.3.0 of Sugar.

SugarIdentity Authentication Data Flow with AuthPoint

AuthPoint communicates with various cloud-based services and service providers with the SAML protocol. This diagram shows the data flow of an MFA transaction for SugarIdentity.

Diagram that shows the data flow of an MFA transaction for a SAML resource with the push authentication method.

Before You Begin

Before you begin these procedures, make sure that:

Configure SugarIdentity

To start, you must download the metadata file from the Certificate Management page in the AuthPoint management UI. After you have that, you can configure the Sugar instance that uses SugarIdentity.

  1. Log in to WatchGuard Cloud.
  2. From the navigation menu, select Configure > AuthPoint. If you have a Service Provider account, you must select an account from Account Manager.
  3. Select Resources.
  4. Click Certificate.

  1. Next to AuthPoint certificate you will associate with your resource, click and select Download Metadata. We recommend that you choose the certificate with the latest expiration date. If you do not have a certificate, or if all of your certificates have expired, click Add Certificate and use the newly created certificate.

    The AuthPoint metadata provides your resource, in this case SugarIdentity, with information necessary to identify AuthPoint as a trusted identity provider.

  1. Log in to Sugar as an administrator.

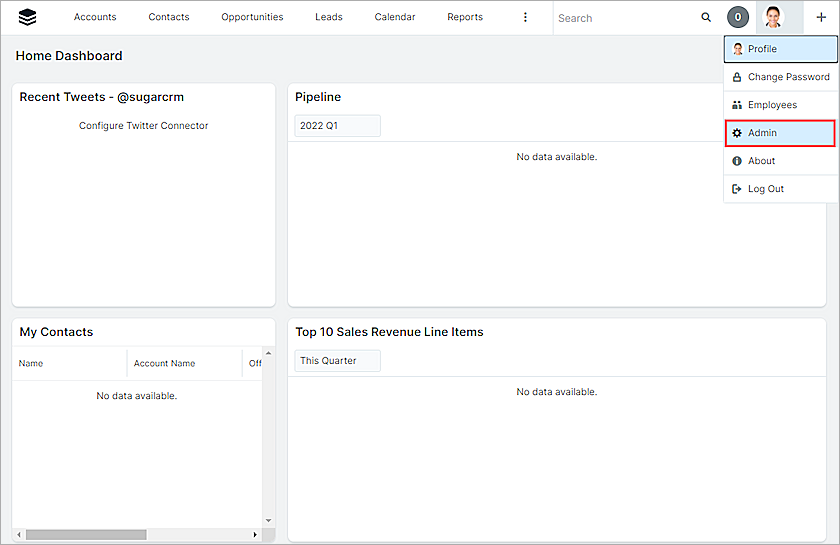

  2. From the account menu, select Admin.

Screenshot of SugarIdentity, picture1

  1. In the SugarCloud section, click SugarCloud Settings.

Screenshot of SugarIdentity, picture2

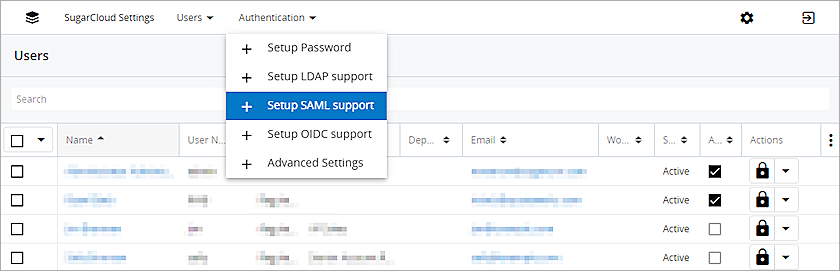

  1. In the SugarCloud Settings console, from the Authentication drop-down list, select Setup SAML support.

Screenshot of SugarIdentity, picture3

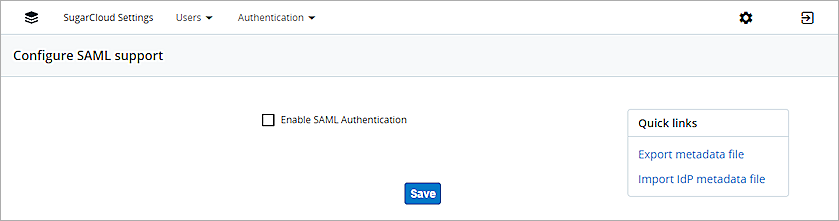

  1. Select the Enable SAML Authentication check box.
  2. Click Import IdP metadata file and upload the AuthPoint metadata file that you downloaded in Step 5.

Screenshot of SugarIdentity, picture4

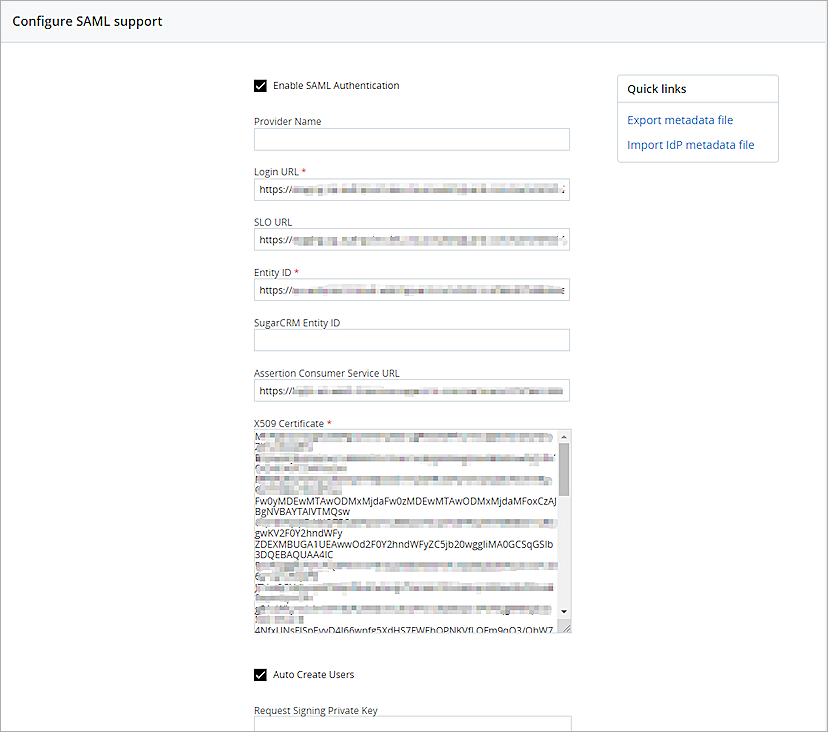

  1. (Optional) Select the Auto Create Users check box.
  2. Leave the default value for all other settings.

Screenshot of SugarIdentity, picture5

  1. Click Save.
  2. Click Export metadata file.
  3. Open the downloaded metadata file and copy the entityID, AssertionConsumerService Location, and SingleLogoutService Location values. You need this information when you configure AuthPoint.

Configure AuthPoint

Before AuthPoint can receive authentication requests from SugarIdentity, you must add a SAML resource in AuthPoint. You must also assign an authentication policy for the SugarIdentity resource to determine which users can authenticate and log in to SugarIdentity and which authentication methods they can use (Push, QR code, and OTP).

Add a SAML Resource in AuthPoint

From the AuthPoint management UI:

  1. From the navigation menu, select Resources. Click Add Resource.
    The Add Resource page opens.

  1. From the Type drop-down list, select SAML.
    Additional fields appear.

  1. On the SAML page, in the Name text box, type a name for this resource.
  2. From the Application Type drop-down list, select SugarIdentity.
  3. In the Service Provider Entity ID text box, type or paste the entityID value you copied from the SugarIdentity metadata file that you downloaded in the previous section.
  4. In the Assertion Consumer Service text box, type or paste the AssertionConsumerService Location value you copied from the SugarIdentity metadata file that you downloaded in the previous section.
  5. From the User ID sent on redirection to service provider drop-down list, select which user ID attribute to send to the service provider. The service provider compares the user ID attribute for the AuthPoint user with the user name in your application. These values must match.
  6. In the Logout URL text box, type or paste the SingleLogoutService Location value you copied from the SugarIdentity metadata file that you downloaded in the previous section.
  7. From the Signature Method drop-down list, select SHA-256.
  8. From the AuthPoint Certificate drop-down list, select the certificate to associate with your resource. This must be the same certificate that you downloaded the metadata for in the previous section.
  9. Click Save.

Add a Group in AuthPoint

You must have at least one user group in AuthPoint to configure MFA. If you already have a group, you do not have to add another group.

To add a group to AuthPoint:

  1. From the navigation menu, select Groups.
  2. Click Add Group.
    The New Group page appears.

Screenshot that shows the Groups page.

  1. In the Name text box, type a descriptive name for the group.
  2. (Optional) In the Description text box, type a description of the group.

Screen shot of the New Group page.

  1. Click Save.
    Your group is listed on the Groups page.

Screenshot of the Save button on the New Group page.

Add an Authentication Policy to AuthPoint

Authentication policies specify which resources users can authenticate to and which authentication methods they can use (Push, QR code, and OTP).

You must have at least one authentication policy in AuthPoint that includes the SugarIdentity resource. If you already have authentication policies, you do not have to create a new authentication policy. You can add this resource to your existing authentication policies.

Users that do not have an authentication policy for a specific resource cannot authenticate to log in to that resource.

To configure an authentication policy:

  1. From the navigation menu, select Authentication Policies.
  2. Click Add Policy.

Screenshot of the Add Policy button on the Authentication Policies page.

  1. Type a name for this policy.
  2. From the Select the authentication options drop-down list, select Authentication options and select which authentication options users can choose from when they authenticate.

    For SAML resources, if you select more than one authentication option, users must select one of the available options when they authenticate. For example, if you select OTP and Push, users can choose to type their OTP or approve a push to authenticate. You cannot require that they do both.

  1. Select which groups this policy applies to. You can select more than one group. To configure this policy to apply to all groups, select All Groups.
  2. Select the resource that you created in the previous section. If you want this policy to apply to additional resources, select each resource this policy applies to. To configure this policy to apply to all resources, select All Resources.

Screenshot of the Add Policy page with the groups and resources selected

  1. (Optional) If you have configured policy objects such as a Network Location, select which policy objects apply to this policy. When you add a policy object to a policy, the policy only applies to user authentications that are the same as the conditions of the policy objects. For example, if you add a Network Location to a policy, the policy only applies to user authentications that come from that Network Location. Users who only have a policy that includes a Network Location do not get access to the resource when they authenticate outside of that Network Location (because they do not have a policy that applies, not because authentication is denied).

    If you configure policy objects, we recommend that you create a second policy for the same groups and resources without the policy objects. The policy with the policy objects should have a higher priority.

Screenshot of the Policy Objects drop-down list.

  1. Click Save.
    Your policy is created and added to the end of the policy list.

    When you create a new policy, we recommend that you review the order of your policies. AuthPoint always adds new policies to the end of the policy list.

Screenshot of the Save button on the Add Policy page.

Add Users to AuthPoint

Only local AuthPoint users are supported for this integration. SugarIdentity requires the user's email address as the SAML user name, and users synced from Active Directory or Azure Active Directory cannot have a user name that is an email address.

Before you assign users to a group, you must add the users to AuthPoint. There are two ways to add AuthPoint user accounts:

  • Sync users from an external user database
  • Add local AuthPoint users

Each user must be a member of a group. You must add at least one group before you can add users to AuthPoint.

To import users from Active Directory, Microsoft Entra ID, or an LDAP database, you must add an external identity in the AuthPoint management UI. External identities connect to user databases to get user account information and validate passwords.

  • To sync users from Active Directory or an LDAP database, you must add an LDAP external identity
  • To sync users from Microsoft Entra ID, you must add a Microsoft Entra ID external identity

When you sync users from an external user database, you can sync any number of users and they are all added to AuthPoint at one time. Users synced from an external user database use the password defined for their user account as their AuthPoint password.

To learn how to sync users, go to Sync Users from Active Directory or LDAP and Sync Users from Azure Active Directory.

You can create local AuthPoint users on the Users page in the AuthPoint management UI. Because you can create only one user at a time, you most commonly do this when you want to create test users or to add only a small number of users.

Unlike users synced from an external user database, local AuthPoint users define and manage their own AuthPoint password. When you add a local user account, the user receives an email that prompts them to set their password.

To learn how to add local AuthPoint user accounts, go to Add Local AuthPoint Users.

Test the Integration

To test AuthPoint MFA with SugarIdentity, you can authenticate with a mobile token on your mobile device. For SAML resources, you can choose any method (push, QR code, or one-time password).

In this example, we show the push authentication method (users receive a push notification in the mobile app that they must approve to authenticate).

  1. In a web browser, go to the Sugar URL.
  2. Click Log in with SAML.
  3. Type your email address or AuthPoint user name. Click Next.
  4. If required, in the Password text box, type your password.
  5. For the authentication method, select Send Push.
  6. Approve the authentication request that is sent to your mobile device.
    You are logged in to Sugar.
