Moodle Integration with AuthPoint

Deployment Overview

This document describes how to set up multi-factor authentication (MFA) for Moodle with AuthPoint as an identity provider. Moodle must already be configured and deployed before you set up MFA with AuthPoint.

Moodle can be configured to support MFA in several modes. For this integration, we set up SAML with AuthPoint.

This integration was tested with Moodle v4.1.1.

Moodle Authentication Data Flow with AuthPoint

AuthPoint communicates with various cloud-based services and service providers with the SAML protocol. This diagram shows the data flow of an MFA transaction for Moodle.

Before You Begin

Before you begin these procedures, make sure that:

• End-users can log in to Moodle
• You have migrated your Moodle site to HTTPS
• You have installed the SAML2 Single sign on plugin from the Moodle plugins directory on Moodle
• A token is assigned to a user in AuthPoint
• You have an AuthPoint identity provider (IdP) certificate An AuthPoint IdP certificate is required for SAML authentication. (go to Certificate Management)

Configure Moodle

To start, you must download the metadata file The metadata provides your resource with information necessary to identify AuthPoint as a trusted identity provider. from the Certificate Management page in the AuthPoint management UI. After you have that, you can configure Moodle.

1. Log in to WatchGuard Cloud.
2. From the navigation menu, select Configure > AuthPoint. If you have a Service Provider account, you must select an account from the Account Manager.
3. Select Resources.
4. Click Certificate.

5. Next to AuthPoint certificate you will associate with your resource, click and select Download Metadata. We recommend that you choose the certificate with the latest expiration date. If you do not have a certificate, or if all of your certificates have expired, click Add Certificate and use the newly created certificate.

   The AuthPoint metadata provides your resource, in this case Moodle, with information necessary to identify AuthPoint as a trusted identity provider.

6. Log in to Moodle as the site administrator.

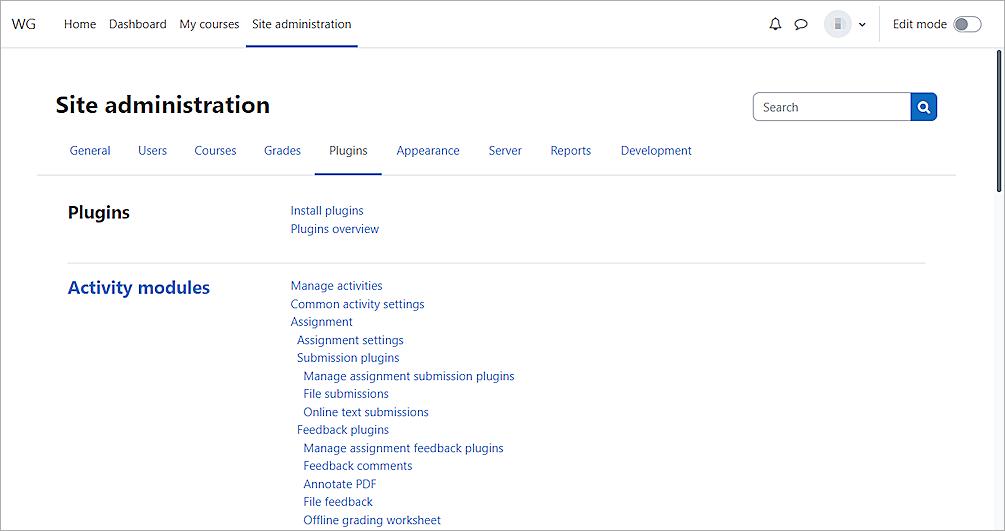

7. From the navigation menu, select Site administration.
8. Select the Plugins tab.

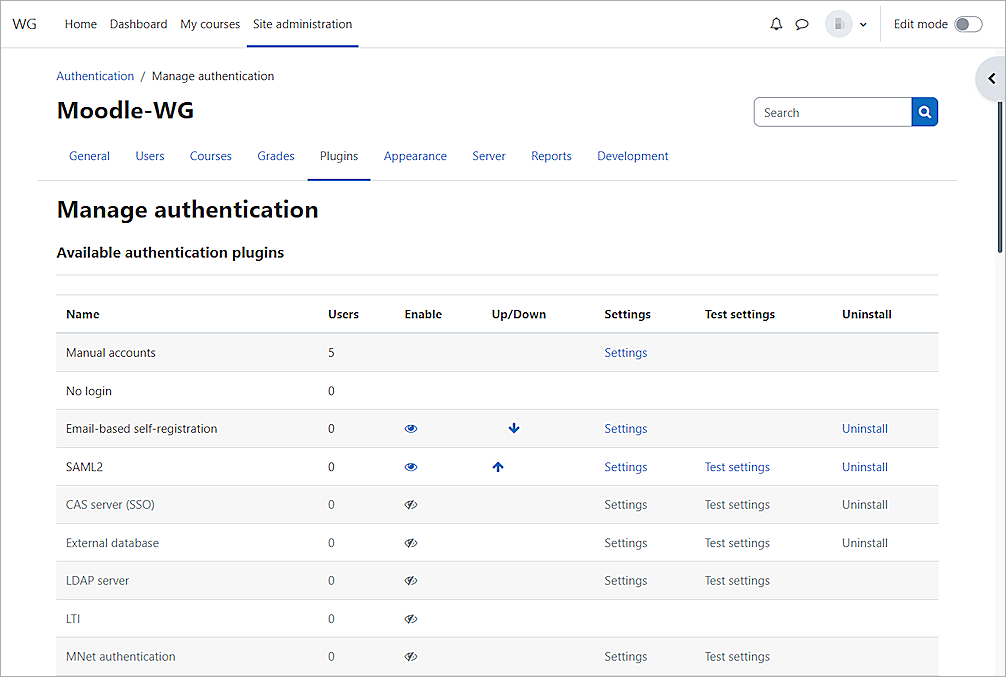

9. In the Authentication section, click Manage authentication.
10. On the Manage authentication page, for SAML2, click the Enable icon.

11. In the SAML2 section, click Settings.

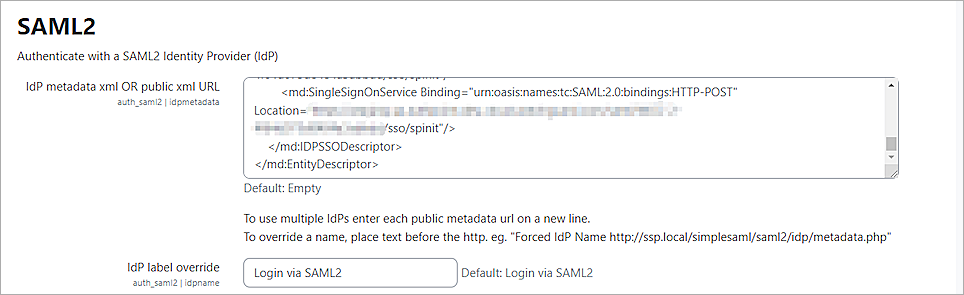

12. In the Authenticate with a SAML2 Identity Provider (IdP) section, in the IdP metadata xml OR public xml URL text box, copy and paste the contents of the AuthPoint metadata file that you downloaded in Step 5.

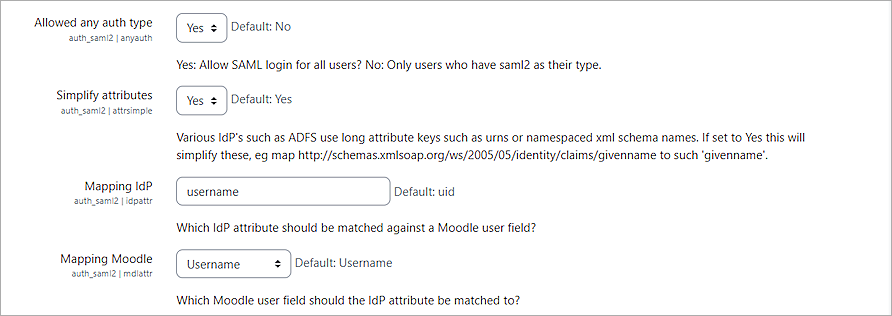

13. From the Allowed any auth type drop-down list, select Yes.
14. In the Mapping IdP text box, type username or email. In our example, we specify username.

15. From the Mapping Moodle drop-down list, select Username or Email address. Your selection should match what you typed in the Mapping IdP text box. In our example, we specified username in the previous step, so we select Username in this step.


16. Leave the default value for all other settings.
17. Click Save changes.
18. In the Authenticate with a SAML2 Identity Provider (IdP) section, for SP Metadata, click Download SP Metadata.
19. Open the downloaded metadata file and copy the entityID, AssertionConsumerService, and SingleLogoutService values. You need this information when you configure AuthPoint.
20. To add a user in Moodle, select Site administration > Users.

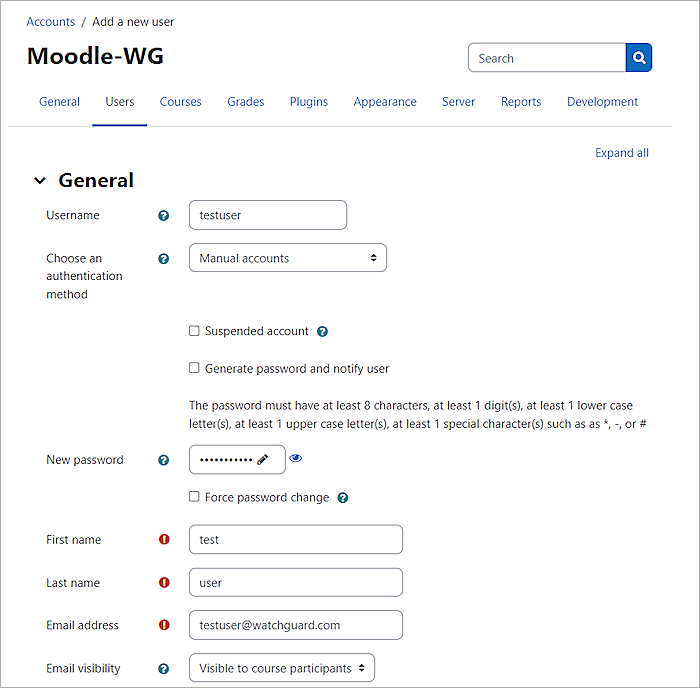

21. In the Accounts section, click Add a new user.

22. Enter the required information for your user account.

    In the Configure AuthPoint section, you must create an AuthPoint user with the same user name and email address.


23. Click Create user.

Configure AuthPoint

Before AuthPoint can receive authentication requests from Moodle, you must add a SAML resource In AuthPoint, resources are the applications and services that your users connect to. in AuthPoint. You must also create an authentication policy Authentication policies specify which resources users can authenticate to and which authentication methods they can use (Push, QR code, and OTP). for the Moodle resource to determine which users can authenticate and log in to Moodle and which authentication methods they can use (Push, QR code, and OTP).

Add a SAML Resource in AuthPoint

From the AuthPoint management UI:

1. From the navigation menu, select Resources. Click Add Resource.
   The Add Resource page opens.

2. From the Type drop-down list, select SAML.
   Additional fields appear.

3. On the SAML page, in the Name text box, type a name for this resource.
4. From the Application Type drop-down list, select Moodle.
5. In the Service Provider Entity ID text box, type https://<your domain>/moodle/auth/saml2/sp/metadata.php. This is the entityID value in the Moodle metadata file.
6. In the Assertion Consumer Service text box, type https://<your domain>/moodle/auth/saml2/sp/saml2-acs.php/<your domain>. This is the AssertionConsumerService value in the Moodle metadata file.
7. From the User ID sent on redirection to service provider drop-down list, select an option:
   • Email
   • User Name
   • Email Prefix
8. In the Logout URL text box, type https://<your domain>/moodle/auth/saml2/sp/saml2-logout.php/<your domain>. This is the SingleLogoutService value in the Moodle metadata file.
9. From the Signature Method drop-down list, select SHA-256.
10. From the AuthPoint Certificate drop-down list, select the certificate to associate with your resource. This must be the same certificate that you downloaded the metadata for in the previous section.
11. Click Save.

Add a Group in AuthPoint

You must have at least one user group in AuthPoint to configure MFA. If you already have a group, you do not have to add another group.

To add a group to AuthPoint:

1. From the navigation menu, select Groups.
2. Click Add Group.
   The New Group page appears.

3. In the Name text box, type a descriptive name for the group.
4. (Optional) In the Description text box, type a description of the group.

5. Click Save.
   Your group is listed on the Groups page.

Add an Authentication Policy to AuthPoint

Authentication policies specify which resources users can authenticate to and which authentication methods they can use (Push, QR code, and OTP).

You must have at least one authentication policy in AuthPoint that includes the Moodle resource. If you already have authentication policies, you do not have to create a new authentication policy. You can add this resource to your existing authentication policies.

Users that do not have an authentication policy for a specific resource cannot authenticate to log in to that resource.

To configure an authentication policy:

1. From the navigation menu, select Authentication Policies.
2. Click Add Policy.

3. Type a name for this policy.
4. From the Select the authentication options drop-down list, select Authentication options and select which authentication options users can choose from when they authenticate.

   For SAML resources, if you select more than one authentication option, users must select one of the available options when they authenticate. For example, if you select OTP and Push, users can choose to type their OTP or approve a push to authenticate. You cannot require that they do both.

5. Select which groups this policy applies to. You can select more than one group. To configure this policy to apply to all groups, select All Groups.
6. Select the resource that you created in the previous section. If you want this policy to apply to additional resources, select each resource this policy applies to. To configure this policy to apply to all resources, select All Resources.

7. (Optional) If you have configured policy objects such as a Network Location, select which policy objects apply to this policy. When you add a policy object to a policy, the policy only applies to user authentications that are the same as the conditions of the policy objects. For example, if you add a Network Location to a policy, the policy only applies to user authentications that come from that Network Location. Users who only have a policy that includes a Network Location do not get access to the resource when they authenticate outside of that Network Location (because they do not have a policy that applies, not because authentication is denied).

   If you configure policy objects, we recommend that you create a second policy for the same groups and resources without the policy objects. The policy with the policy objects should have a higher priority.

8. Click Save.
   Your policy is created and added to the end of the policy list.

   When you create a new policy, we recommend that you review the order of your policies. AuthPoint always adds new policies to the end of the policy list.

Add Users to AuthPoint

Before you assign users to a group, you must add the users to AuthPoint. There are two ways to add AuthPoint user accounts:

• Sync users from an external user database
• Add local AuthPoint users

Each user must be a member of a group. You must add at least one group before you can add users to AuthPoint.

Test the Integration

To test AuthPoint MFA with Moodle you can authenticate with a mobile token on your mobile device. For SAML resources, you can choose any method (push, QR code, or one-time password).

In this example, we show the push authentication method (users receive a push notification in the mobile app that they must approve to authenticate).

1. In a web browser, go to the Moodle URL.
2. Click Log in.
3. Click Login via SAML2.
4. Type your email address or AuthPoint user name. Click Next.
5. If required, in the Password text box, type your password.
6. For the authentication method, select Send Push.
7. Approve the authentication request that is sent to your mobile device.
   You are logged in to Moodle.
