FilesAnywhere Integration with AuthPoint

Deployment Overview

This document describes how to set up multi-factor authentication (MFA) for FilesAnywhere with AuthPoint as an identity provider. FilesAnywhere must already be configured and deployed before you set up MFA with AuthPoint.

FilesAnywhere can be configured to support MFA in several modes. For this integration, we set up SAML with AuthPoint.

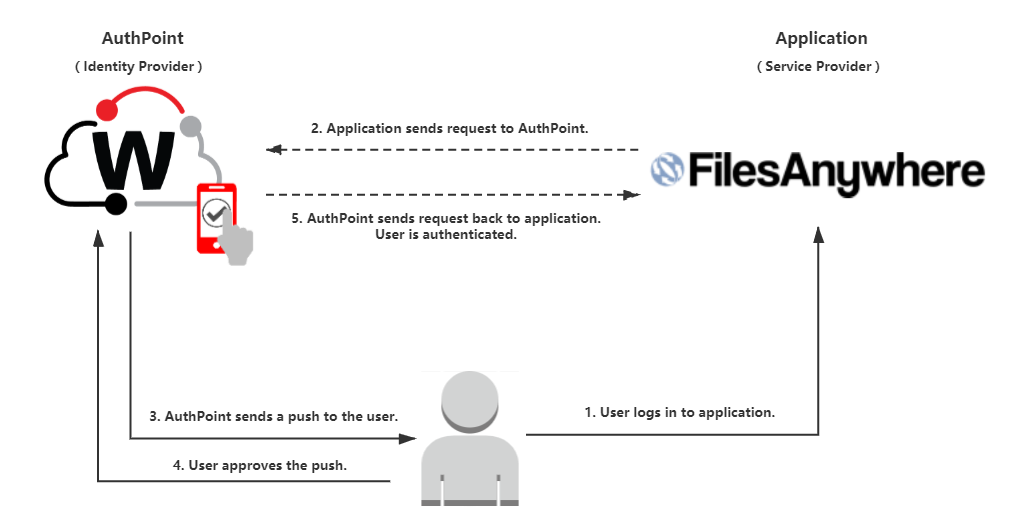

FilesAnywhere Authentication Data Flow with AuthPoint

AuthPoint communicates with various cloud-based services and service providers with the SAML protocol. This diagram shows an MFA transaction for FilesAnywhere.

Before You Begin

Before you begin these procedures, make sure that:

Configure FilesAnywhere

To start, you must download the metadata file and the certificate file from the Certificate Management page in the AuthPoint management UI. After you have that, you can configure FilesAnywhere.

  1. Log in to WatchGuard Cloud.
  2. From the navigation menu, select Configure > AuthPoint. If you have a Service Provider account, you must select an account from Account Manager.
  3. Select Resources.
  4. Click Certificate.

  1. Next to AuthPoint certificate you will associate with your resource, click and select Download Metadata and Download Certificate. We recommend that you choose the certificate with the latest expiration date.

    The AuthPoint metadata provides your resource, in this case FilesAnywhere, with information necessary to identify AuthPoint as a trusted identity provider.

  1. Log in to the FilesAnywhere admin portal.
  2. Select the Site Configuration tab and navigate to Single Sign-On(SSO) Settings.
  3. Select click here to open a new window.

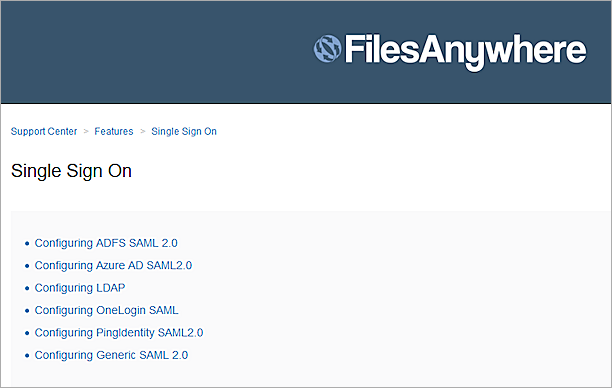

  4. Select Configuring Generic SAML 2.0.

  1. You can get all the Service Provider information on this page which will be configured on AuthPoint side. Scroll down and select Click here.
    A new page opens.

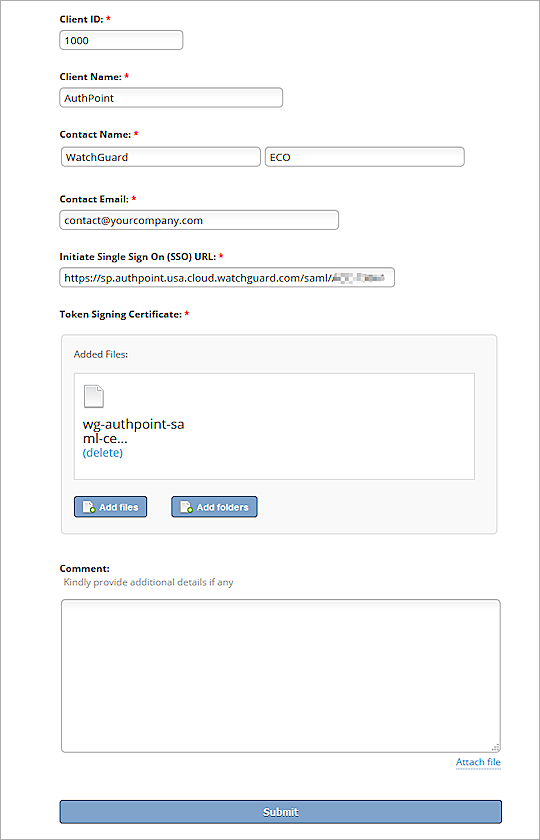

  2. Type your Client ID.
  3. In the Client Name text box, type a name. In our example, we type AuthPoint.
  4. Type a Contact Name and Contact Email.
  5. Open the AuthPoint metadata file you downloaded and find the SingleSignOnService Location value.
  6. Copy and paste the SingleSignOnService Location value from the metadata file in the Initiate Single Sign On(SSO) URL text box in FilesAnywhere. This text box may limit the number of characters so that the full URL does not fit, so we recommend that you also paste the SingleSignOnService Location value in the comments text box.
  7. For Token Signing Certificate, upload the AuthPoint certificate that you downloaded.
  8. Click Submit.
    FilesAnywhere support processes your request.

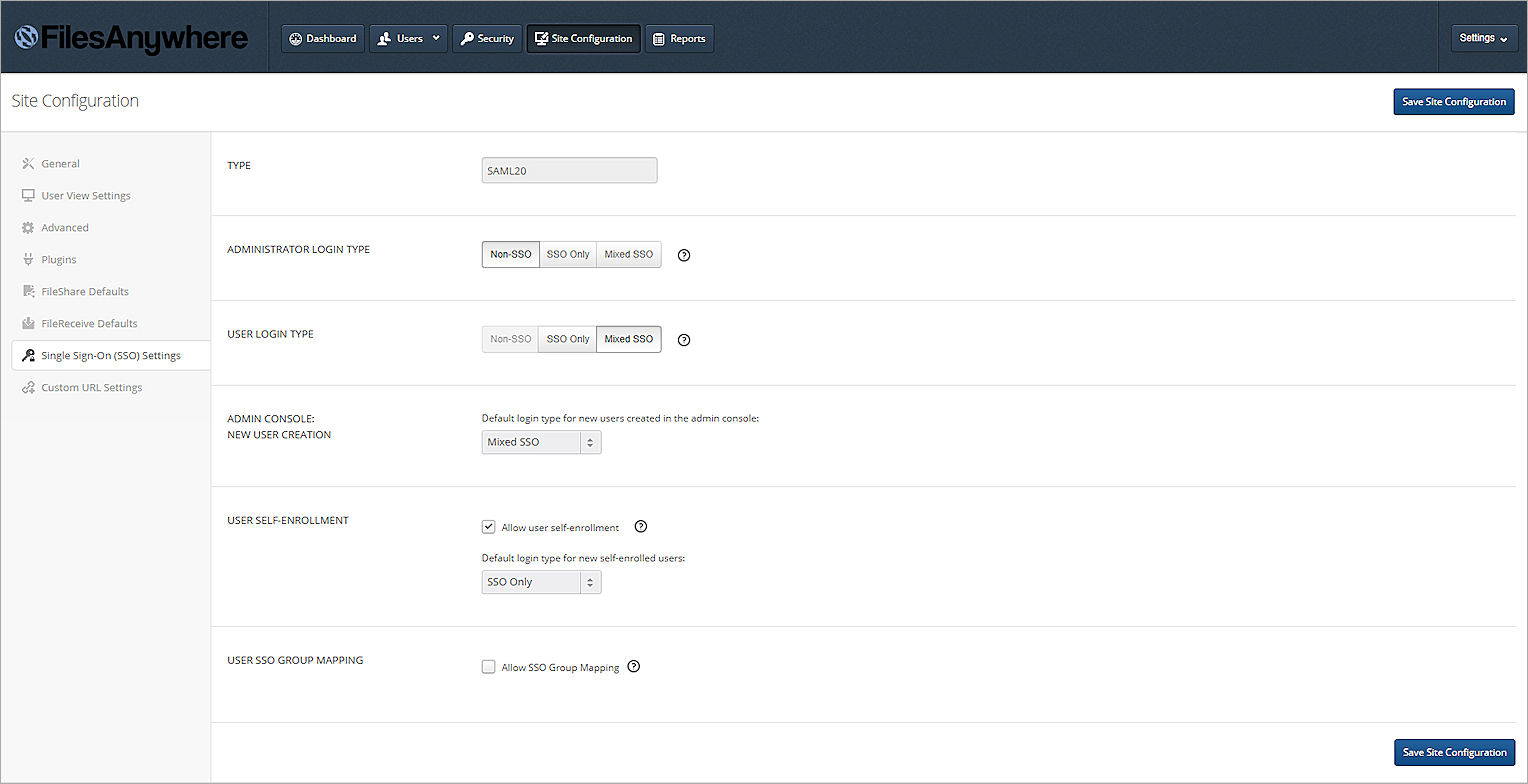

When your SSO configuration for FilesAnywhere is done, you can navigate to Site Configuration > Single Sign-On(SSO) Settings to set up different SSO policies for your users.

Configure AuthPoint

Before AuthPoint can receive authentication requests from FilesAnywhere, you must add a SAML resource in AuthPoint. You must also create an authentication policy for the FilesAnywhere resource to determine which users can authenticate and log in to FilesAnywhere and which authentication methods they can use (Push, QR code, and OTP).

Add a SAML Resource in AuthPoint

From the AuthPoint management UI:

  1. From the navigation menu, select Resources.
  2. From the Choose a Resource Type drop-down list, select SAML. Click Add Resource.

  1. On the SAML page, in the Name text box, type a name for this resource.
  2. From the Application Type drop-down list, select FilesAnywhere.
  3. In the Service Provider Entity ID text box, type Filesanywhere.com.
  4. In the Assertion Consumer Service text box, type https://private.filesanywhere.com/saml20.aspx?c=<your client id>.
  5. In the Client Id text box, type your FilesAnywhere client id.
  6. From the AuthPoint Certificate drop-down list, select the certificate to associate with your resource. This must be the same certificate that you downloaded the metadata file from in the Configure FilesAnywhere section.
  7. Click Save.

Add a Group in AuthPoint

You must have at least one user group in AuthPoint to configure MFA. If you already have a group, you do not have to add another group.

To add a group to AuthPoint:

  1. From the navigation menu, select Groups.
  2. Click Add Group.
    The New Group page appears.

Screenshot that shows the Groups page.

  1. In the Name text box, type a descriptive name for the group.
  2. (Optional) In the Description text box, type a description of the group.

Screen shot of the New Group page.

  1. Click Save.
    Your group is listed on the Groups page.

Screenshot of the Save button on the New Group page.

Add an Authentication Policy to AuthPoint

Authentication policies specify which resources users can authenticate to and which authentication methods they can use (Push, QR code, and OTP).

You must have at least one authentication policy in AuthPoint that includes the FilesAnywhere resource. If you already have authentication policies, you do not have to create a new authentication policy. You can add this resource to your existing authentication policies.

Users that do not have an authentication policy for a specific resource cannot authenticate to log in to that resource.

To configure an authentication policy:

  1. From the navigation menu, select Authentication Policies.
  2. Click Add Policy.

Screenshot of the Add Policy button on the Authentication Policies page.

  1. Type a name for this policy.
  2. From the Select the authentication options drop-down list, select Authentication options and select which authentication options users can choose from when they authenticate.

    For SAML resources, if you select more than one authentication option, users must select one of the available options when they authenticate. For example, if you select OTP and Push, users can choose to type their OTP or approve a push to authenticate. You cannot require that they do both.

  1. Select which groups this policy applies to. You can select more than one group. To configure this policy to apply to all groups, select All Groups.
  2. Select the resource that you created in the previous section. If you want this policy to apply to additional resources, select each resource this policy applies to. To configure this policy to apply to all resources, select All Resources.

Screenshot of the Add Policy page with the groups and resources selected

  1. (Optional) If you have configured policy objects such as a Network Location, select which policy objects apply to this policy. When you add a policy object to a policy, the policy only applies to user authentications that match the conditions of the policy objects. For example, if you add a Network Location to a policy, the policy only applies to user authentications that come from that Network Location. Users who only have a policy that includes a Network Location do not get access to the resource when they authenticate outside of that Network Location (because they do not have a policy that applies, not because authentication is denied).

    If you configure policy objects, we recommend that you create a second policy for the same groups and resources without the policy objects. The policy with the policy objects should have a higher priority.

Screenshot of the Policy Objects drop-down list.

  1. Click Save.
    Your policy is created and added to the end of the policy list.

    When you create a new policy, we recommend that you review the order of your policies. AuthPoint always adds new policies to the end of the policy list.

Screenshot of the Save button on the Add Policy page.

Add Users to AuthPoint

Before you assign users to a group, you must add the users to AuthPoint. There are two ways to add AuthPoint user accounts:

  • Sync users from an external user database
  • Add local AuthPoint users

Each user must be a member of a group. You must add at least one group before you can add users to AuthPoint.

Test the Integration

To test AuthPoint MFA with FilesAnywhere, you can authenticate with a mobile token on your mobile device. For SAML resources, you can choose any method (push, QR code, or one-time password).

In this example, we show the push authentication method (users receive a push notification in the mobile app that they must approve to authenticate).

  1. In a web browser, go to the FilesAnywhere URL.
  2. Type your email address or AuthPoint user name. Click Next.
  3. If required, in the Password text box, type your password.
  4. For the authentication method, select Push.
  5. Click Send.
  6. Approve the authentication request that is sent to your mobile device.
    You are logged in to FilesAnywhere.
