Use WatchGuard Application Control with Your Existing Firewall

Example configuration files created with — WSM v11.10.1

Revised — 7/21/2015


Use Case

An organization wants to block the use of specific applications on their network, but they do not want to change their existing firewall configuration or any of their existing network addresses. Initially, they want to block access to all online games, and block access to Facebook.

This configuration example is provided as a guide. Additional configuration settings could be necessary, or more appropriate, for your network environment.

Solution Overview

This organization can add a Firebox behind any firewall on their existing network to monitor and control which applications their users can use. To do this, they configure their Firebox in bridge mode, so it can transparently monitor and control content in and out of their network without any change to their existing firewall configuration or network addressing.

After the Firebox is added to the network, NAT and network routing are still managed by the existing gateways and routers. The Firebox simply examines the content as it passes through, and then applies policies to that traffic.

How It Works

In bridge mode, the Firebox does not route network traffic. The Firebox examines the traffic and then passes it on to the destination, without any changes to the packet header or routing information. When the packet arrives at a gateway from the Firebox, it appears to have been sent from the original device.

The traffic that passes through the Firebox is managed by the policies you add to the device configuration file. When Application Control is enabled in the policies, traffic is inspected to identify applications and block the traffic for the applications that you specify.

Requirements

  • A Firebox appropriate for your network size
    Firebox capabilities vary by model. You must select a Firebox that has the capacity to manage the traffic for your network. For information about Fireboxes, see https://www.watchguard.com/wgrd-products/.
  • Fireware OS v11.4 or higher
    To use Application Control, the Firebox must use Fireware OS v11.4 or higher.
  • A security subscription to Application Control
    The Firebox must have an active Application Control security subscription.

Configuration Example

To illustrate this type of configuration, we present an example of an existing firewall that protects a private network. Because routing is managed by the existing network devices, the network behind the firewall can either be a single network or multiple subnets behind a router. The Firebox can apply Application Control rules to the traffic between the network users and the existing firewall, regardless of your network configuration.

In this configuration example, the existing network uses these IP addresses:

Example network configuration IP address
Existing firewall 192.168.100.1
Private network immediately behind the existing firewall 192.168.100.0/24

To configure the Firebox, you only need to know the existing firewall IP address and an available IP address on the internal network that you can assign to the Firebox for management. As long as the Firebox is located between the network users and the firewall, the rest of the existing network topology does not affect the Firebox configuration.

To emphasize this point, we provide two different existing network topologies: Flat Internal Network and Routed Internal Network. The same Firebox configuration file can be used for either topology.

Topology 1 — Flat Internal Network

This diagram shows where to install your Firebox on a network with a single subnet, so that you can use Application Control.

Network Topology 1 diagram

Topology 2 — Routed Internal Network

This diagram shows where to install your Firebox on a network with a router and multiple subnets, so that you can use Application Control.

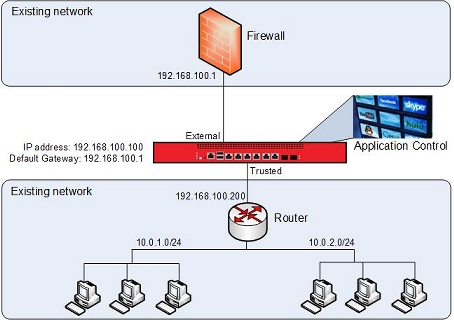

Network Topology 2 diagram

Example Configuration File

For your reference, we have included an example configuration file with this document. This example configuration file supports both of the network topologies described in the previous section. To examine the details of the example configuration file, open it with Policy Manager v11.10.1 or higher.

The name of the example configuration file is app_control_bridge.xml. This configuration file is included in the app_control_bridge_config.zip file.

Configuration File Explained

Network Configuration in Bridge Mode

In this example configuration file, the network is configured in Bridge Mode.

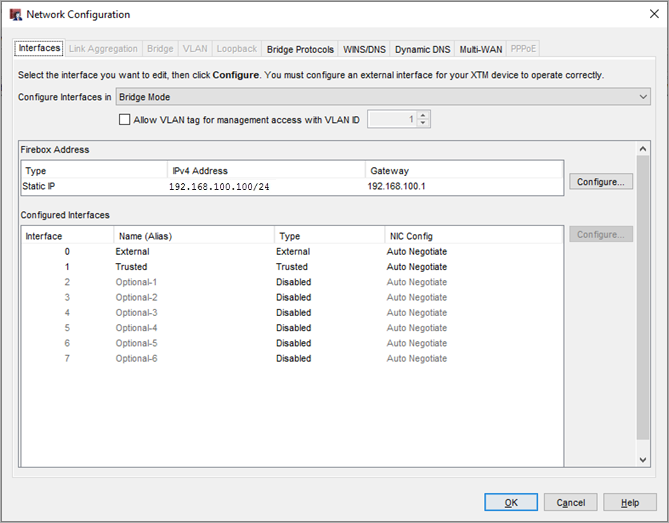

Screen shot of the Network Configuration dialog box

To connect to the device to manage it, you use the IP address of the Firebox. That address must be on the same subnet as the firewall. In this example, the Firebox IP address is set to 192.168.100.100/24.

The existing firewall is the default gateway for the network that is immediately behind the firewall, so the gateway IP address in the Firebox configuration file is set to the firewall IP address, 192.168.100.1.

Policies

The example configuration file includes these two policies, which allow all traffic to flow through the device:

  • Any-inbound — Allows all traffic from the firewall to the users on the network.
  • Any-outbound — Allows all traffic from the users on the private network to the firewall.

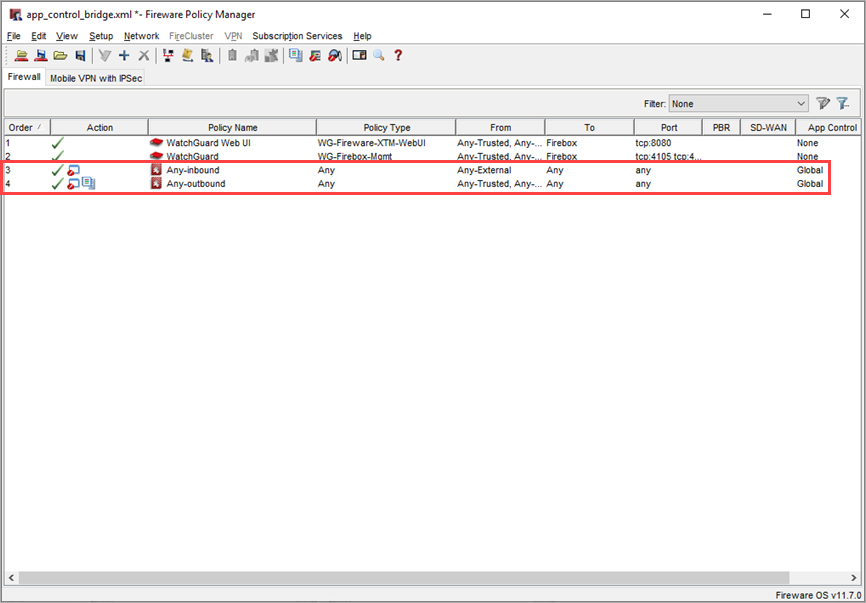

Screen shot of Policy Manager Firewall tab

Policies of the type Any apply to any type of traffic. You can open these policies to examine the policy configuration details.

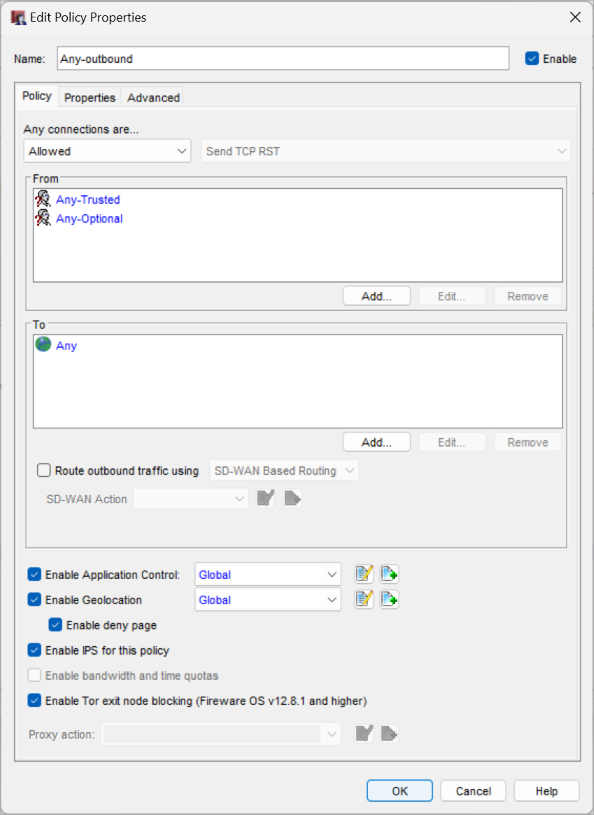

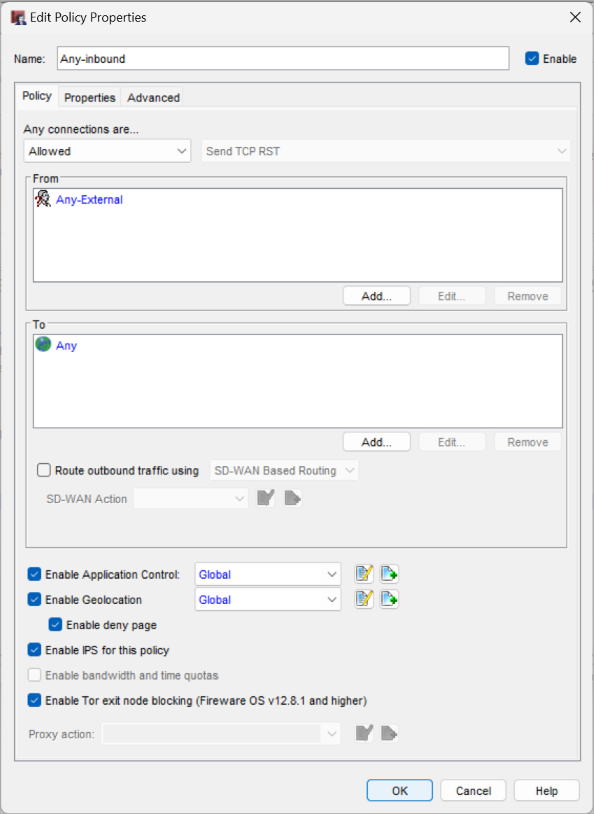

Screen Shot of the Edit Policy Properties dialog box for the Any-inbound policy Screen shot of the Edit Policy Properties dialog box for the Any-outbound policy

Each policy has the Global Application Control action enabled.

Application Control Settings

In this example configuration, the Global Application Control action is configured to block:

  • All Facebook applications
  • All applications in the Games category

This Global Application Control action is enabled for the Any-inbound and Any-outbound policies that allow the traffic.

To see the Global Application Control action in the example configuration file:

  1. Select Subscription Services > Application Control.
    The Application Control Actions dialog box appears.
  2. From the Actions list, select the Global Application Control action and click Edit.
    The Application Control Action (predefined) dialog box appears.
  3. Select Show only configured applications.

Screen shot if the Application Control Action dialog box

In this example, all games applications are blocked based on the application category, as indicated by the selected action: Drop (By category). The Facebook applications, however, are blocked individually, as indicated by the specified drop actions.

  1. To see which application categories are blocked, click Select by Category.
    For this example, you can see the action for the Games category is set to Drop.

The Games category blocks all online games, not just Facebook games. This is what we want for this use case.

Monitor Blocked Applications

When Application Control drops traffic that matches a configured Application Control action, that event appears in a traffic log message. If you connect to the Firebox with Firebox System Manager, you can select the Traffic Monitor tab to see the log messages that indicate which applications have been blocked. By default, policies are configured to create a log message only when traffic is not allowed by the policy, so only messages about applications that are blocked appear in Traffic Monitor.

To see log messages for all applications that are detected, even if that traffic is not blocked, you can configure the policy to generate a log message for all allowed packets.  In the example configuration file, the Any-outbound policy is configured to send a log message for all allowed packets.

To see this configuration setting:

  1. Double-click the Any-outbound policy.
    The Edit Policy Properties dialog box appears for the Any-outbound policy.
  2. Select the Properties tab.
  3. Click Logging.
    The Logging and Notification dialog box appears.

Screen shot of the Logging and Notification dialog box

WatchGuard System Manager also includes other reporting and monitoring tools that you can use to review Application Control log messages and create reports. For more information about logging and reporting, see the Fireware Help at https://www.watchguard.com/help/documentation/.

Conclusion

In this configuration example, we explored how to add an Firebox to an existing network to block selected applications with Application Control. The addition of the Firebox to this network required no change to the existing firewall configuration, and no change to the configuration of any other devices on this network. The Firebox simply inspects the traffic and blocks the applications configured in the Application Control action.

After the Firebox is added to the network, it is easy to enable other security services that can increase the security of your network and your control over the content on the network. For example, you could enable WebBlocker, which allows you to block web content based on content categories, or Intrusion Prevention Service, which provides real-time protection from threats such as spyware, cross-site scripting, and buffer overflows.

For more information about the available WatchGuard UTM security subscriptions, see https://www.watchguard.com/products/xtm-software/overview.asp.

This configuration example blocks access to all Facebook applications, but you can also choose to selectively block some Facebook applications and allow others. For example, you can allow Facebook applications as needed by your Marketing department, but at the same time block access to the Facebook games.

For more information about how to get started with Application Control, see the Fireware Help at https://www.watchguard.com/help/documentation/.
