Configure BOVPN over TLS in Server Mode

BOVPN over TLS uses a client-server model for VPN tunnel communication. You must configure at least one Firebox as a BOVPN over TLS Client and at least one Firebox as a BOVPN over TLS Server.

In Fireware v12.1, you must use the Web UI to configure BOVPN over TLS.

About SSL/TLS Settings Precedence and Inheritance

Several Firebox features use SSL/TLS for secure communication and share the same OpenVPN server. The features that share the OpenVPN server, in order of precedence from highest to lowest, are:

  • Management Tunnel over SSL on hub devices
  • BOVPN over TLS in Server mode
  • Mobile VPN with SSL
  • Access Portal

Features with lower precedence inherit some SSL/TLS settings from enabled features with higher precedence. The shared settings are not configurable for the features with lower precedence.

If Management Tunnel over SSL is enabled, these BOVPN over TLS settings are not configurable:

  • Fireboxes IP addresses
  • Virtual IP address pool
  • Data channel protocol and port
  • Renegotiate data channel

BOVPN over TLS Server mode settings take precedence over multiple settings for Mobile VPN with SSL and the VPN Portal port. For information about how BOVPN over TLS Server mode settings affect Mobile VPN with SSL and VPN Portal settings, see Configure the Firebox for Mobile VPN with SSL and Configure the VPN Portal Settings.

Enable Server Mode

When you enable BOVPN over TLS in Server mode, your Firebox is configured as a TLS server.

To enable BOVPN with TLS in Server Mode on your Firebox, from Fireware Web UI:Closed
  1. Select VPN > BOVPN over TLS.

Screen shot of the BOVPN over TLS enable page

  1. Click Enable.
    The BOVPN over TLS Mode dialog box appears.
  2. From the Firebox Mode drop-down list, select Server.
  3. In the Primary Server text box, type a Firebox IP address or domain name for client connections.
  4. (Optional) In the Backup Server text box, type the IP address or domain name for a secondary external interface on the Firebox. The client tries to connect to the backup server if it cannot connect to the primary server.

  1. Click Save.
    A summary of the configuration appears.

Screen shot of the configuration summary page

Next, you must add a BOVPN over TLS client that can connect to the BOVPN over TLS server.

Add a BOVPN over TLS Client

When you add a BOVPN over TLS Client, you must specify:

  • Client Routes — Destinations behind the BOVPN over TLS server that are accessible by the BOVPN over TLS client. Select to send all traffic through the tunnel or only traffic to destinations that you specify.
  • Server Routes — Destinations behind the BOVPN over TLS client that are accessible by the BOVPN over TLS server.

If Mobile VPN with SSL is enabled on the BOVPN over TLS Client, you must select the Specify the destination addresses that the client will route through the tunnel option on the BOVPN over TLS Server. If you select Traffic destined for all locations is sent through the tunnel, mobile users cannot make a Mobile VPN with SSL connection to the Firebox configured as a BOVPN over TLS Client.

To add a BOVPN over TLS client, from Fireware Web UI:Closed
  1. Click Add.
    The Add Client page appears.

Screen shot of the Add Client dialog box

  1. In the Tunnel ID text box, type a name to identify the tunnel. You must specify the same Tunnel ID on the TLS client.
  2. (Optional) In the Description text box, type a description of the tunnel.
  3. In Pre-Shared Key text box, type the pre-shared key that the client and server use.
  4. To enable this client, select Enable.
  5. In the Client Routes section, specify what traffic the BOVPN over TLS client sends through the tunnel.

Send all client traffic through the tunnel

Traffic destined for all locations is sent through the tunnel.

Screen shot of the Client Routes section

Specify the destination addresses that the client will route through the tunnel.

Only traffic destined for the specified network or host IP addresses behind the BOVPN over TLS Server is sent through the tunnel.

Screen shot of the second Client Routes option

  1. In the Server Routes section, click Add.
    The Route dialog box appears.
  2. In the Destination Type drop-down list, select Network IPv4 or Host IPv4.
  3. In the Route To text boxes, type the network or host IP address.
  4. In the Metric text box, type the metric for the route.

Screen shot of the Route section

  1. Click OK to view the tunnel configuration.

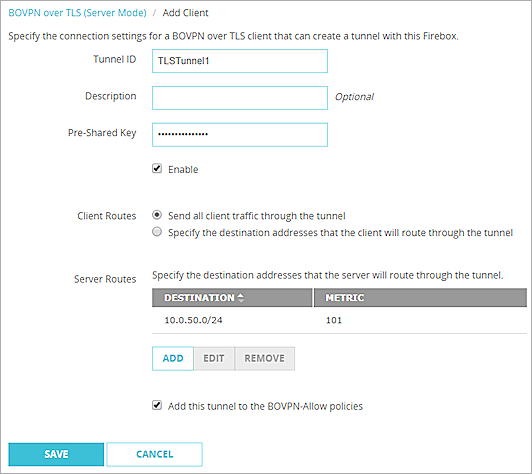

Screen shot of the configuration with the full tunnel option

The Send all client traffic through tunnel option in the Web UI

Screen shot of the configuration with client routes specified

The Specify the destination addresses that the client will route through the tunnel option in the Web UI

  1. Click Save.
    A summary of the configuration appears.

Screen shot of the configuration

Configure Advanced Settings

The Advanced Settings include authentication and encryption settings, the data channel setting, the IP address pool for BOVPN over TLS clients, and timers.

IP Address Pool

By default, the BOVPN over TLS server assigns addresses in the 192.168.113.0/24 pool to BOVPN over TLS clients. Mobile VPN with SSL also uses the 192.168.113.0/24 pool by default. If BOVPN over TLS in Client mode and Mobile VPN with SSL are enabled on the same Firebox, you must specify a different address pool for one of these features. If both features use the same IP address pool, BOVPN over TLS traffic is not sent through the tunnel properly.

Data Channel

If the data channel protocol is TCP, you cannot specify a port number other than 443.

You can change the data channel protcol to UDP and specify a different port unless Management Tunnel over SSL is enabled on your Management Server. For information about the differences between TCP and UDP, see Choose the Port and Protocol for Mobile VPN with SSL.

To configure the Advanced Settings, from Fireware Web UI:Closed
  1. On the BOVPN over TLS Server Settings page, click Advanced.
    The Advanced Settings dialog box appears.

Screen shot of the BOVPN over TLS Advanced Settings

  1. In the Virtual IP Address Pool text box, type the network IP address.
  2. In the Authentication drop-down list, select SHA-1, SHA-256, or SHA-512.
  3. In the Encryption drop-down list, select 3DES, AES (128-bit), AES (256-bit), or AES (512-bit).
  4. In the Data channel drop-down list, select TCP or UDP.
  5. If you selected UDP, specify a port number in the adjacent text box.
  6. In the Keep-Alive Interval text box, specify a number in seconds.
  7. In the Keep-Alive Timeout text box, specify a number in seconds.
  8. In the Renegotiate Data Channel text box, specify a number in hours.

See Also

Configure BOVPN over TLS in Client Mode

About Branch Office VPN over TLS

SSL/TLS Settings Precedence and Inheritance
