Set a Custom Login Page for ADFS

Applies To: AuthPoint Multi-Factor Authentication, AuthPoint Total Identity Security

The ADFS agent includes a custom WatchGuard theme to set the appearance of the ADFS login page. The ADFS agent does not use this theme by default in case you have already set a custom theme.

For the best results, we recommend that you use the dimensions in this list for images on the login page.

Image Default Theme WatchGuard Theme
Logo 260 x 35 pixels 300 x 100 pixels
Illustration 1420 x 1080 pixels 420 x 1080 pixels

To use the WatchGuard theme, run this PowerShell command :

Set-AdfsWebConfig -ActiveThemeName WatchGuardTheme

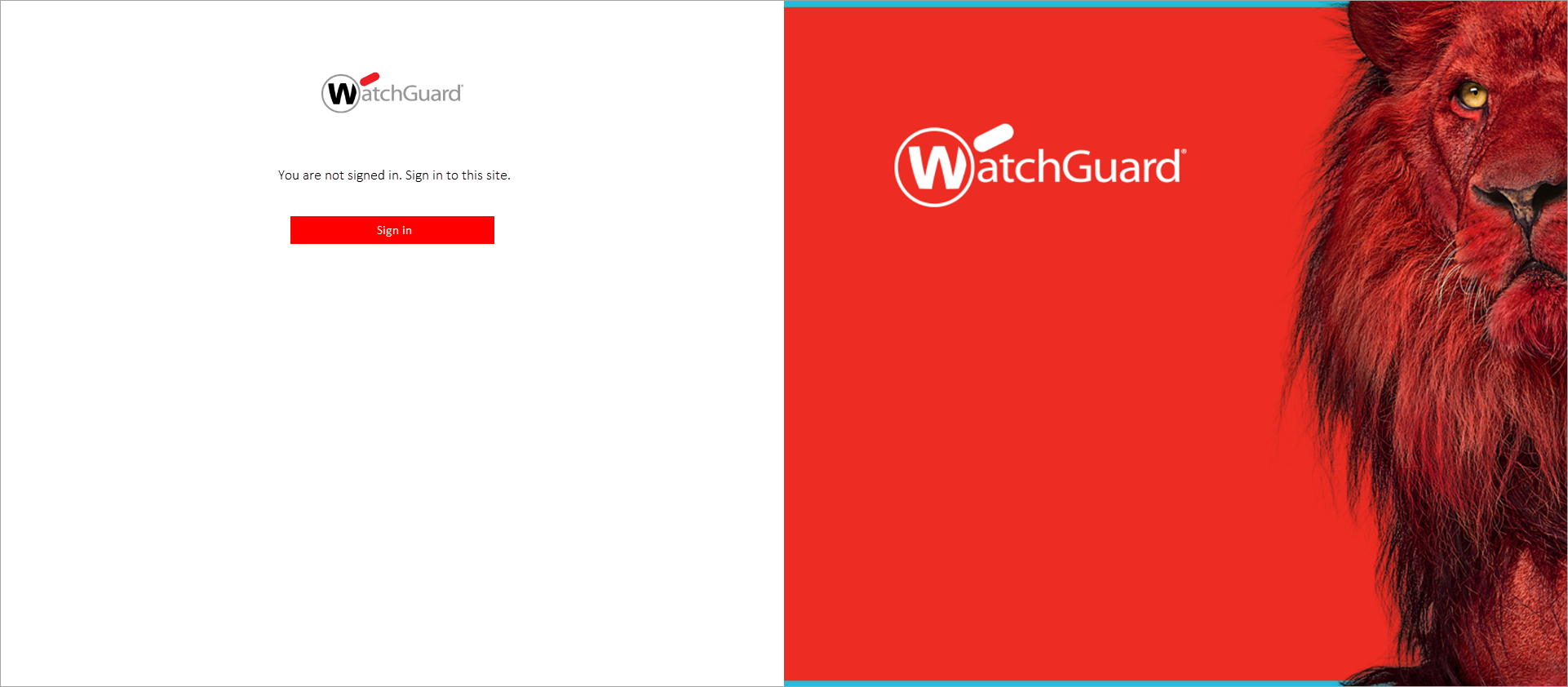

Screen shot that shows the AD FS login page with the WatchGuard theme.

When you uninstall the AuthPoint ADFS agent, the theme that defines the appearance of the ADFS login page is set to the default. If you use a custom theme, you must run this PowerShell command to set your theme as active:

Set-AdfsWebConfig -ActiveThemeName <your theme name>

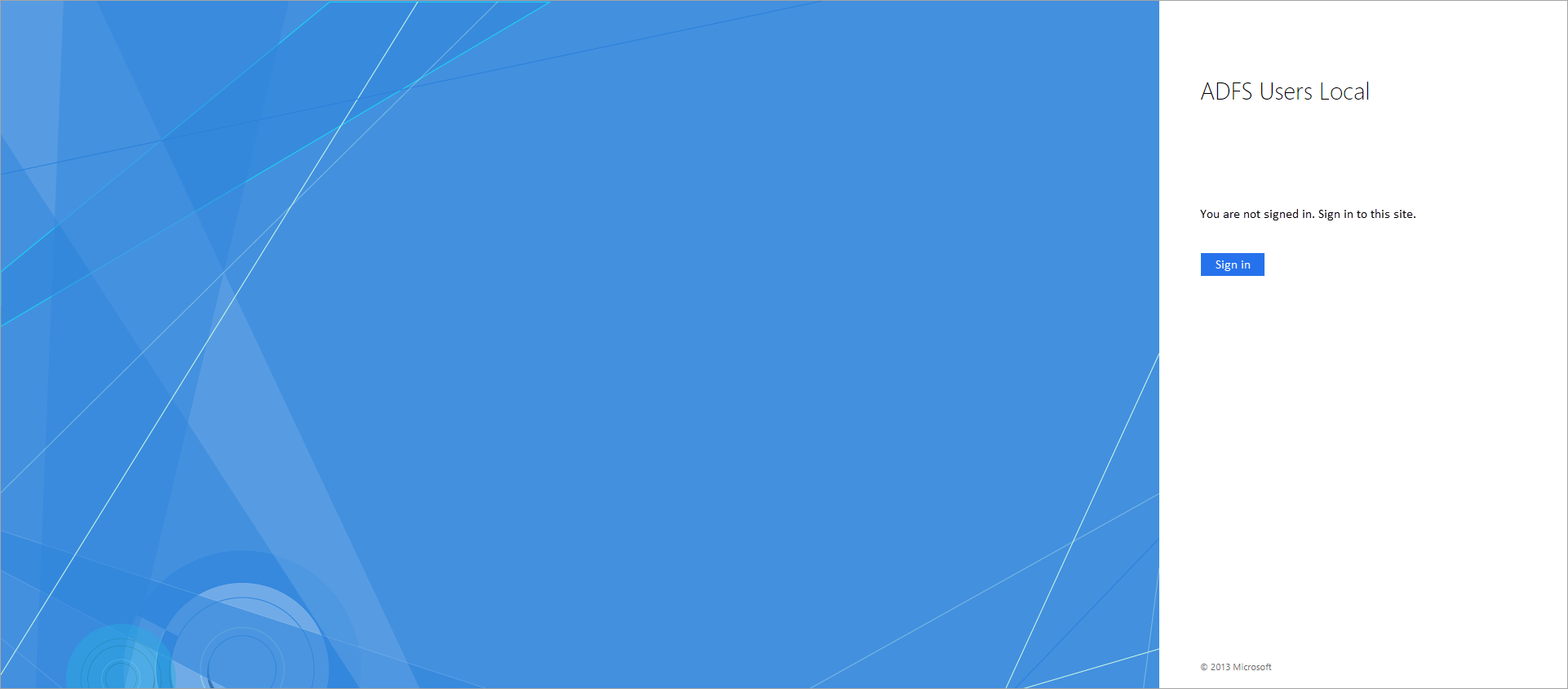

Screen shot that shows the ADFS login page with the default theme.
