DNS-Proxy: Proxy Alarm

You can configure how the DNS-proxy sends messages for alarm events that occur through the DNS-proxy. You can define the proxy to send an SNMP trap, a notification to a network administrator, or both. The notification can either be an email message to a network administrator or a pop-up window on the management computer.

  1. On the Edit page, Proxy Action tab, select the Proxy Alarm tab.
    The Proxy Alarm settings appear.

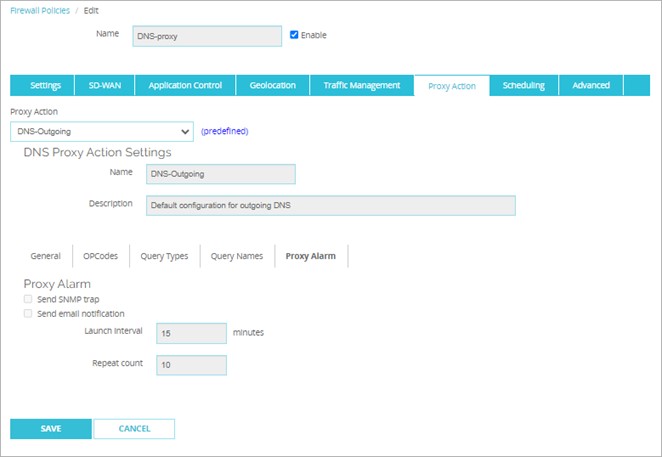

Screen shot of the Proxy Alarm settings in Fireware Web UI

Proxy Alarm settings for the DNS-proxy action in Fireware Web UI

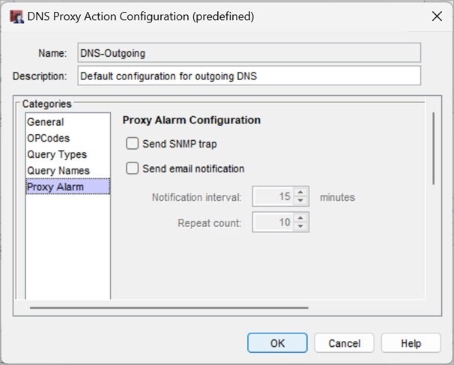

Screen shot of proxy alarm settings in Policy Manager

Proxy Alarm settings for the DNS-proxy action in Policy Manager

  1. Configure the notification settings for the DNS-proxy action.
    For more information, see Set Logging and Notification Preferences.
  2. To change settings for other categories in this proxy, see the topic for the next category you want to modify.
  3. Click Save.

If you modified a predefined proxy action, when you save the changes you are prompted to clone (copy) your settings to a new action.

For more information on predefined proxy actions, see About Proxy Actions.
