Palo Alto Networks Firewall Integration with WatchGuard Open MDR

This document describes how to integrate a Palo Alto Networks firewall with WatchGuard Open MDR to enable the WatchGuard MDR team to monitor data from your firewall.

Contents

Firewall Syslog Data Flow to WatchGuard MDR

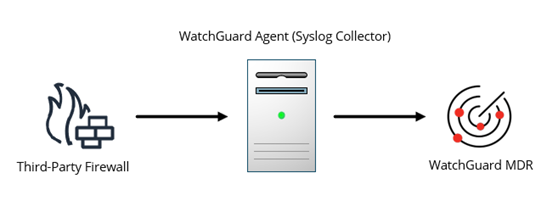

The WatchGuard MDR Syslog Collector sends logs from your third-party firewall to WatchGuard MDR. To install the Syslog Collector on a computer, you must first install the WatchGuard Agent. This diagram shows the data flow of third-party firewall syslogs to WatchGuard MDR.

Before You Begin

Before you begin these procedures, make sure that:

  • You have a WatchGuard Open MDR license allocated in WatchGuard Cloud.
  • You have the required access and permissions on your Palo Alto Networks firewall to configure syslog forwarding.
  • You have access to a Linux server to install the WatchGuard Agent and the Syslog Collector.

Install the WatchGuard Agent and Syslog Collector

The WatchGuard MDR Syslog Collector collects the syslog data sent from your third-party firewall. You must install the WatchGuard Agent and the Syslog Collector on a supported Linux server to collect the syslogs. To configure your third-party firewall for syslog forwarding, you must have the IP address of your Syslog Collector server.

For steps to install the WatchGuard Agent and Syslog Collector, go to Configure Third-Party Firewall Syslog Collection for WatchGuard Open MDR in Help Center.

Configure a Palo Alto Networks Firewall to Forward Syslogs

WatchGuard provides interoperability instructions to help our customers configure WatchGuard products to work with third-party products created by other organizations. The steps to configure syslog forwarding on your device might be different, based on the version of your firewall management software. For the latest syslog forwarding instructions, go to your third-party firewall documentation.

To configure a Palo Alto Networks firewall to forward syslogs to the Syslog Collector:

  1. Log in to your Palo Alto Networks firewall UI.
  2. Select Device > Server Profiles > Syslog.
  3. Click Add.
  4. In the Name text box, type a descriptive name for your server.
  5. In the Syslog Server text box, enter the IP address of your WatchGuard MDR Syslog Collector server.
  6. From the Transport drop-down list, select UDP.
  7. In the Port text box, type 514.
  8. From the Format drop-down list, select a format.
  9. From the Facility drop-down list, select the facility type for your device.
  10. Click OK.

Screen shot of the Palo Alto Networks firewall settings

  1. To configure the firewall to forward logs, select Object > Log Forwarding.
  2. Click Add.
  3. In the Name text box, type a name for the log forwarding profile.
  4. For each log type, select the syslog server profile you created previously.
  5. To trigger the firewall to generate and forward logs, assign the log forwarding profile to a security policy.
  6. Go to Policies > Security. Select the related policy rules.
  7. Select the Actions tab.

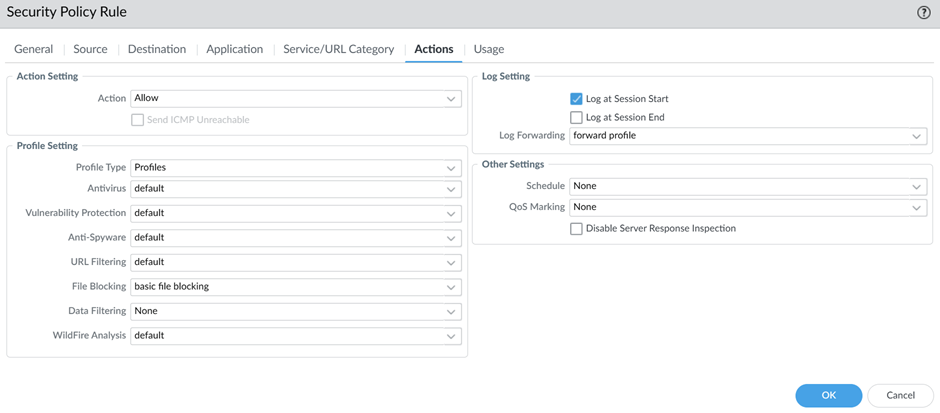

Screen shot of the Palo Alto Networks firewall settings

  1. In the Action Settings section, from the Action drop-down list, select Allow.
  2. In the Profile Setting section, use these settings:
    1. From the Profile Type drop-down list, select Profiles.
    2. Set the security level for each attribute.
  3. Click Commit.
    It might take several minutes for the changes to take effect.

For more information about Palo Alto Networks firewall remote logging options, go to the PAN-OS documentation (external link).

Verify the Integration

To verify the integration of WatchGuard Open MDR and the configuration of your third-party firewall, view the Connections > Service Status > Network Device List in the Managed Service portal in WatchGuard Cloud.

It can take up to six hours for incident data to appear in the Managed Services portal after you complete the integration steps.

To verify the integration:

  1. In WatchGuard Cloud, select Monitor > Managed Services.
    The Managed Services portal opens in a new browser tab.
  2. If you are a Service Provider, select your Subscriber account from the drop-down list.
  3. Select Connections > Service Status.
    The Service Status page opens.

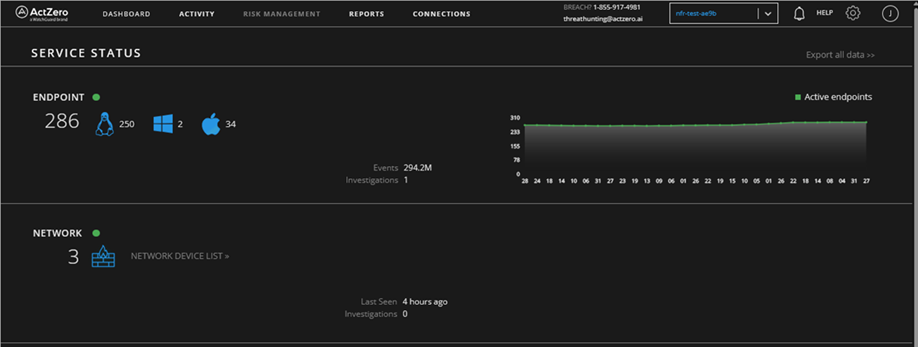

Screenshot of the Managed Services portal Service Status page

  1. From the Network tile, click Network Device List.

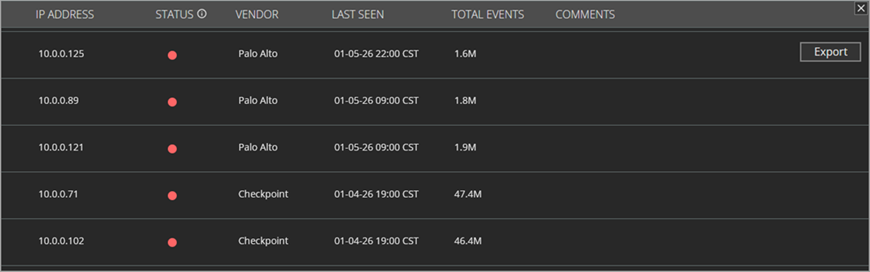

Screenshot of the Managed Services portal Network Device List dialog box

  1. Confirm that the IP address of your third-party firewall shows in the list.
