Monitor Tunnels

Applies To: Wi-Fi Cloud-managed Access Points (AP120, AP125, AP225W, AP320, AP322, AP325, AP327X, AP420) This topic applies to Wi-Fi 5 access points you manage in Wi-Fi Cloud (AP120, AP125, AP225W, AP320, AP322, AP325, AP327X, AP420).

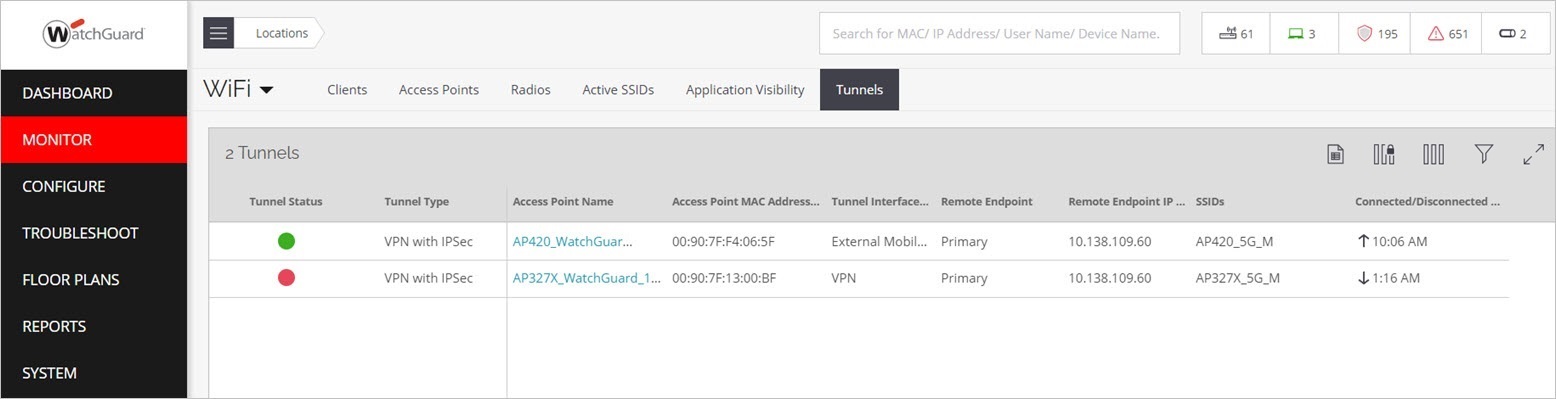

The Monitor > WiFi > Tunnels page shows a list of active network tunnels, including EoGRE, EoGRE over IPSec, VXLAN, and IPSec VPN tunnels.

To download a list of tunnels, freeze columns, add or remove columns, filter the display, and switch to full screen mode, use the icons at the top-right of the page. For more information, see Table Actions for Monitor Pages.

The data in the columns represents live data updated every 15 minutes.

The Tunnels page includes this information:

Field	Description
Tunnel Status	The status of the tunnel.
Tunnel Type	The type of tunnel such as EoGRE or IPSec.
Access Point Name	The name of the access point where the tunnel is configured.
Access Point MAC Address	The MAC address of the access point where the tunnel is configured.
Tunnel Interface	The interface used for the tunnel.
Remote Endpoint	The name of the remote endpoint of the tunnel.
Remote Endpoint IP	The IP address of the remote endpoint of the tunnel.
SSIDs	The SSIDs used with the tunnel.
Connected/Disconnected Since	The time and date when the tunnel was connected or disconnected.
