Routes

You can see the IPv4 and IPv6 routes configured on your Firebox, and filter the list of routes by the route type, interface, and destination. For both IPv4 and IPv6 routes, the available route types include static, dynamic, connected, and VPN.

For each route, the Routes table includes this information:

Destination

The network that the route was created for.

Interface

The interface associated with the route.

Gateway

The gateway that the network uses.

Flag

The flags set for each route.

Metric

The metric set for this route in the routing table.

To see the routes on your Firebox, from Fireware Web UI:

Select System Status > Routes.
The Routes page appears.

From the drop-down list, select the route address type:
- IPv4
- IPv6
From the Route Type drop-down list, select the type of routes to include in the list:
- All
- Connected — Routes to directly connected subnets
- Static — Static routes
- Dynamic — Dynamic routes
- VPN— BOVPN virtual interface routes
To filter the list by the routes for an interface, from the Interface drop-down list, select an interface.
To filter the list by a destination network address, in the Destination text box, type the destination network address and click .

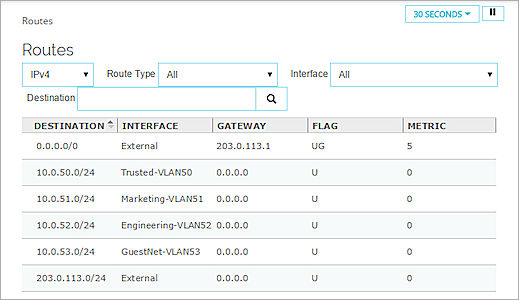

The Routes table appears with the routes that match the filters you specified.

Routes

See Also
