Assign a Network Interface to a Bridge

To assign additional interfaces to an existing bridge, from Fireware Web UI:

  1. Select Network > Bridge.
    The Bridge page appears.
  2. Select a bridge configuration in the Bridge Settings list, then click Edit.
  3. Select the check box next to each network interface that you want to add to the bridge.
  4. Click Save.

To assign a network interface to a bridge in Policy Manager, you must edit the physical interface that you want to add to the bridge.

To assign a network interface to a bridge, from Policy Manager:

  1. Select Network > Configuration.
    The Network Configuration window appears.
  2. Select the interface that you want to add to the bridge, then click Configure.
    The Interface Configuration - Interface # window appears.

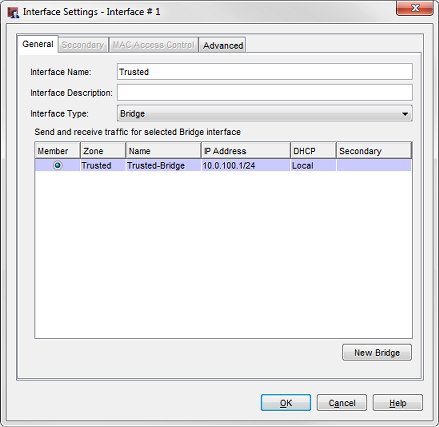

Interface Settings - General Tab, interface type bridge

  1. In the Interface Type drop-down list, select Bridge.
  2. Select the radio button adjacent to the network bridge configuration you created, or click New Bridge to create a new bridge configuration.
  3. Click OK.

See Also

About LAN Bridges

Create a Network Bridge Configuration
