Use the WatchGuard IKEv2 Setup Wizard

The WatchGuard IKEv2 Setup Wizard helps you activate and configure Mobile VPN with IKEv2. The setup wizard is only available when Mobile VPN with IKEv2 has not been activated. Any Mobile VPN with IKEv2 settings not configurable in the wizard are set to their default values. When you activate Mobile VPN with IKEv2, IPSec is enabled by default with these IPSec settings:

Phase 1 transforms

SHA2-256, AES(256), and Diffie-Hellman Group 14
SHA-1, AES(256), and Diffie-Hellman Group 5
SHA-1, AES(256), and Diffie-Hellman Group 2
SHA-1, 3DES, and Diffie-Hellman Group 2

The SA life is 24 hours for all transforms.

Phase 2 proposals

ESP-AES-SHA1
ESP-AES256-SHA256

PFS is disabled.

If your IKEv2 clients require different settings, you can edit these settings after you run the wizard.

For more information about Mobile VPN with IKEv2 settings, see Edit the Mobile VPN with IKEv2 Configuration.

Before You Begin

When you configure Mobile VPN with IKEv2, you select an authentication server and add users and groups for authentication. Make sure that the authentication server you want to use for IKEv2 user authentication is configured before you enable Mobile VPN with IKEv2.

For more information about supported user authentication methods for IKEv2, seeAbout Mobile VPN with IKEv2 User Authentication

Use the IKEv2 Setup Wizard

To use the IKEv2 Setup Wizard, from Fireware Web UI:

Select VPN > Mobile VPN with IKEv2.
Click Run Wizard.
Click Next.
Type the domain name or IP address for client connections. If your Firebox is behind a NAT device, you must specify the public IP address or domain name of the NAT device.

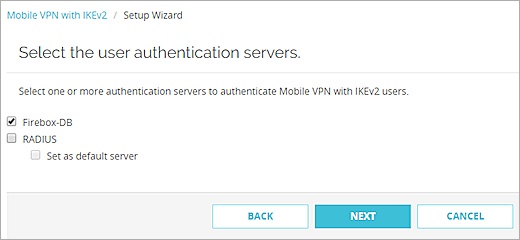

Select one or more authentication servers for Mobile VPN with IKEv2 users:
- Firebox-DB
- RADIUS

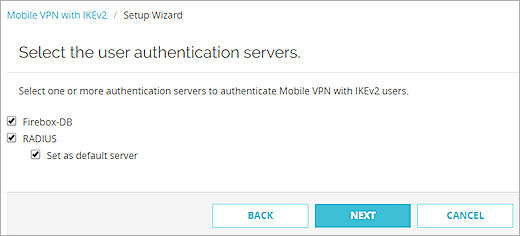

If you select both Firebox-DB and RADIUS, you can select Set as default server to make RADIUS the default authentication server.

Select or add the users or groups for Mobile VPN with IKEv2.

Specify the IP address pool for Mobile VPN with IKEv2 users. The default IP address pool is 192.168.114.0/24.

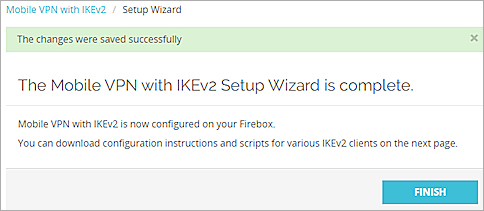

Click Finish.

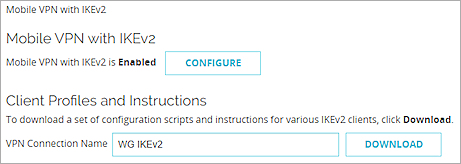

To edit the configuration, click Configure.
To download configuration scripts and instructions for IKEv2 VPN clients, click Download. For more information about scripts and instructions, see Configure Client Devices for Mobile VPN with IKEv2

To use the IKEv2 Setup Wizard, from Policy Manager:

Select VPN > Mobile VPN > IKEv2 > Activate.
The IKEv2 Setup Wizard appears.

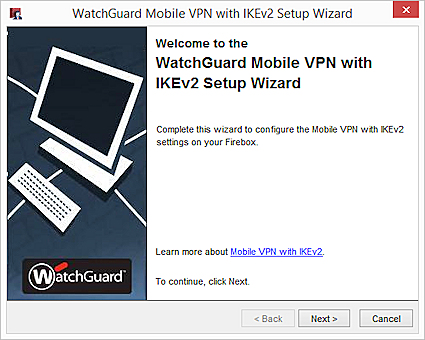

Screen shot of the IKEv2 wizard start page

Click Next.
Type the domain name or IP address for client connections. If your Firebox is behind a NAT device, specify the public IP address or domain name of the NAT device.

Screen shot of the server address page in the IKEv2 wizard

Select one or more authentication servers for Mobile VPN with IKEv2 users:
- Firebox-DB
- RADIUS

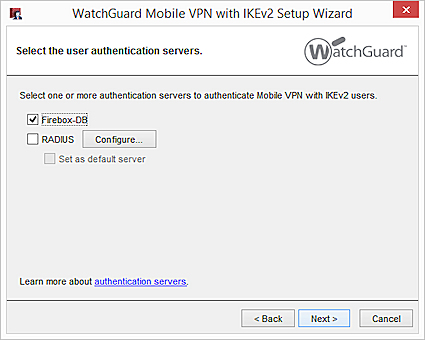

Screen shot of the authentication server settings in the IKEv2 wizard

If you select both Firebox-DB and RADIUS, you can select Set as default server to make RADIUS the default authentication server.

Screen shot of the authentication server settings in the IKEv2 wizard

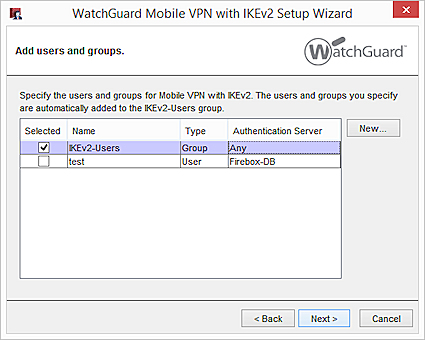

Select or add the users or groups for Mobile VPN with IKEv2.

Specify the IP address pool for Mobile VPN with IKEv2 users. The default IP address pool is 192.168.114.0/24.

Click Finish.

To edit the configuration, select VPN > Mobile VPN > IKEv2 > Configure.

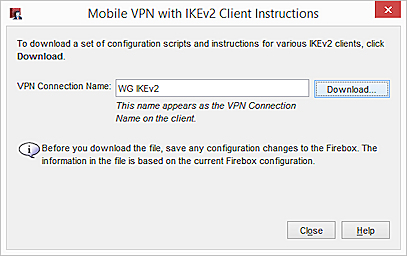

To download configuration scripts and instructions for IKEv2 VPN clients, select VPN > Mobile VPN > IKEv2.

For more information about scripts, see Configure Client Devices for Mobile VPN with IKEv2.
