Use the BOVPN Configuration Reports

To see a summary of the settings configured for a branch office VPN gateway, tunnel, or BOVPN virtual interface in a format that is easy to save or print, you can use the BOVPN Configuration Reports. These reports make it easier to compare VPN settings between VPN endpoints devices when you troubleshoot a branch office VPN. The reports are all available in HTML or plain text format.

BOVPN Configuration reports include:

  • BOVPN Gateway Configuration Report
  • BOVPN Tunnel Configuration Report
  • BOVPN Virtual Interface Configuration Report

These reports show information about the VPN configuration. They do not show real-time status of the VPN. For information about how to run the VPN Diagnostic report that shows real-time tunnel status, see Use the VPN Diagnostic Report.

BOVPN Gateway Configuration Report

The BOVPN Gateway Configuration Report shows the configuration settings for the selected gateway. It can also show configuration settings for tunnels that use the gateway.

To run the BOVPN Gateway report, from Fireware Web UI:Closed
  1. Select VPN > Branch Office VPN.
  2. From the Gateways list, select a configured gateway.
  3. Click Report.
    The BOVPN Gateway report appears in a new browser window. The report is in HTML format by default.

Screen shot of the BOVPN Gateway report in the Web UI

  1. To change the report from HTML to plan text format, click Plain text.
  2. To add details about the tunnels that use the gateway, click Show Tunnel Details.
  3. To print the report, click Print.
  4. To save the report to a file, click Save.
    The report is downloaded in .txt or .html format, based on the current view.
To run the BOVPN Gateway Configuration Report, from Policy Manager:Closed
  1. Select VPN > BOVPN Gateways.
  2. Select a configured gateway.
  3. Click Report.
    The BOVPN Gateway Configuration Report appears. The report is in HTML format by default.

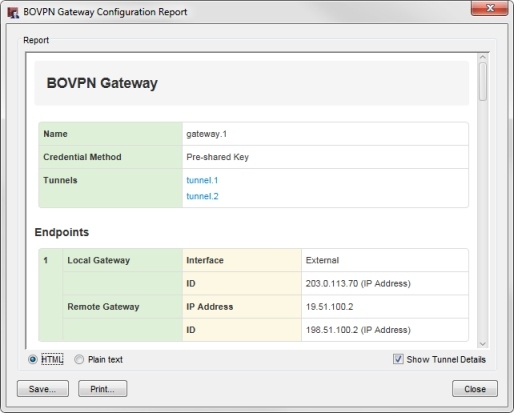

Screen shot of the BOVPN Gateway report

  1. To add details about tunnels that use this gateway, select the Show Tunnel Details check box.
    Each tunnel name in the report becomes a link to the report section with the tunnel configuration settings.
  2. To change the report from HTML to plan text format, select Plain text.

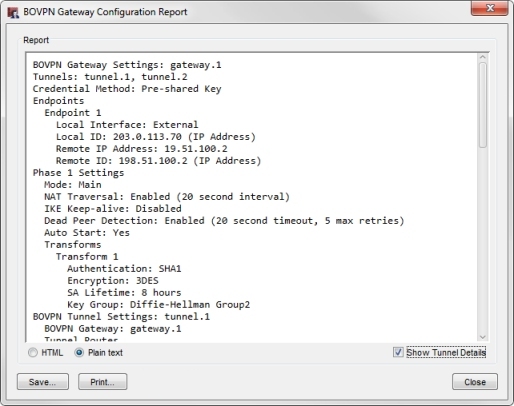

Screen shot of the Plain Text version of the report

  1. To print the report, click Print.
  2. To save the report to a file, click Save.

BOVPN Tunnel Configuration Report

The BOVPN Tunnel Configuration Report shows the configuration settings for the selected tunnel. It can also show configuration settings for the gateway that the tunnel uses.

To run the BOVPN Tunnel report, from Fireware Web UI:Closed
  1. Select VPN > Branch Office VPN.
  2. From the Tunnels list, select a configured tunnel.
  3. Click Report.
    The BOVPN Tunnel report appears. The report is in HTML format by default.

Screen shot of the BOVPN Tunnel report in a browser window

  1. To change the report from HTML to plan text format, click Plain text.
  2. To add details about the gateway the tunnel uses, click Show Gateway Details.
  3. To print the report, click Print.
  4. To save the report to a file, click Save.
    The report is downloaded in .txt or .html format, based on the current view.
To run the BOVPN Tunnel Configuration Report from Policy Manager:Closed
  1. Select VPN > Branch Office Tunnels.
  2. Select a configured tunnel.
  3. Click Report.
    The BOVPN Tunnel Configuration Report appears. The report is in HTML format by default.

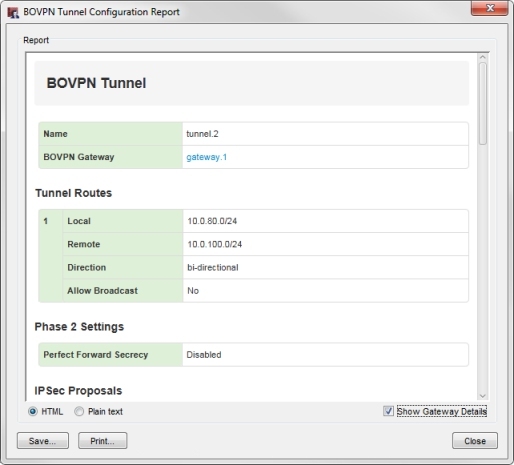

Screen shot of the BOVPN Tunnel configuration report

  1. To add details about tunnels that use this gateway, select the Show Gateway Details check box.
    The gateway name in the report becomes a link to the section of the report with gateway configuration settings.
  2. To change the report from HTML to plan text format, select Plain text.

BOVPN Virtual Interface Configuration Report

For a BOVPN virtual interface, the BOVPN Virtual Interface Configuration Report shows the BOVPN virtual interface configuration settings and VPN routes. It also shows whether dynamic routing is configured.

To run the BOVPN Virtual Interface configuration report, from Fireware Web UI:Closed
  1. Select VPN > BOVPN Virtual Interfaces.
  2. Select a configured BOVPN virtual interface.
  3. Click Report.
    The BOVPN Virtual Interface report appears. The report is in HTML format by default.

Screen shot of the BOVPN Virtual Interface report in a browser window

  1. To change the report from HTML to plan text format, click Plain text.
  2. To print the report, click Print.
  3. To save the report to a file, click Save.
    The report is downloaded in .txt or .html format, based on the current view.
To run the BOVPN Virtual Interface Configuration Report from Policy Manager:Closed
  1. Select VPN > BOVPN Virtual Interface.
  2. Select a configured BOVPN virtual interface.
  3. Click Report.
    The BOVPN Virtual Interface Configuration Report appears. The report is in HTML format by default.

  1. To change the report from HTML to plan text format, select Plain text.

See Also

Monitor and Troubleshoot BOVPN Tunnels
