Download or Show the Firebox Configuration
From Fireware Web UI, you can download the complete Firebox device configuration to a file that you can open with Policy Manager. You can also generate a Firebox Configuration Report that you can look at in a web browser and print.
Download the Configuration File
From Fireware Web UI, you can download your Firebox configuration to a compressed file. This can be useful if you want to open the same configuration file in Policy Manager but are unable to connect to the Firebox from Policy Manager. This can also be useful if you want to send your configuration file to a WatchGuard technical support representative.
- Select System > Configuration File.
The Configuration File page appears. - Click Download the Configuration File.
The Select location for download dialog box appears. - Select a location to save the configuration file.
The configuration file is saved in a compressed (.GZ) file format. Before you can use this file with Policy Manager, you must use a utility such as Winzip or 7-zip to extract the file to a location on your computer.

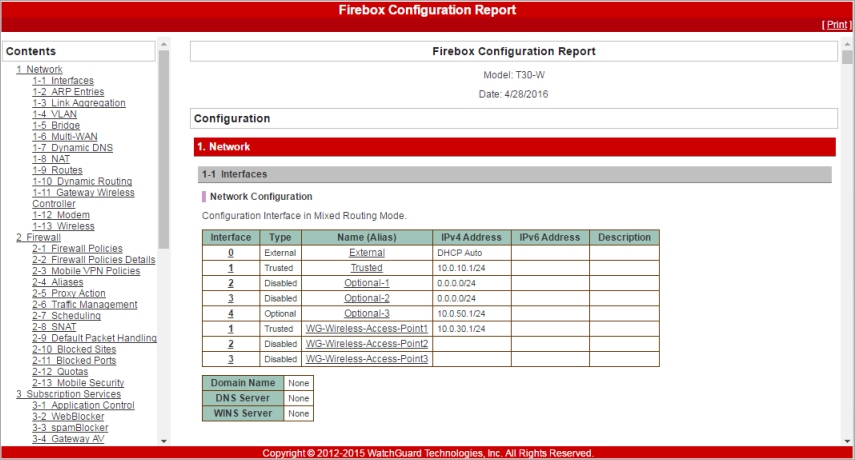

Show the Firebox Configuration Report
From Fireware Web UI, you can generate the Firebox Configuration Report which includes a summary of your device configuration settings in an easy to read, printable format. The Firebox Configuration Report opens in a separate browser window.
To see the Firebox Configuration Report, you must enable pop-ups in your browser.
The Firebox Configuration Report gives you an overview of your device configuration. It can be a useful tool if you want to review your security policy implementation with your organization’s management team. The report includes information about most Firebox configuration settings.
The Firebox Configuration Report is divided into six main sections:
- Network — Network configuration settings
- Firewall — Firewall policies and proxy action settings
- Subscription Services— Subscription services settings
- Authentication — Configured authentication settings, users, and groups
- VPN — Branch Office VPN and Mobile VPN settings
- System — System configuration, aliases, logging, NTP, SNMP, global settings, and technology integrations.
To generate the Firebox Configuration Report:
- Select System > Configuration File.
- Click Firebox Configuration Report.
The Firebox Configuration Report opens in a new browser tab.
- From the Contents list, select a section to see section of the report.
- To print the report, click Print in the report header.
To make a PDF version of this report, print to a PDF file.
The Firebox Configuration Report shows you the current configuration settings for your Firebox. To help troubleshoot issues with your Firebox, you can also download a diagnostic log file (support.tgz) that includes packet trace information for traffic through your Firebox. For more information, see Download a Diagnostic Log Message File.
