Client Event Logs

Applies To: Wi-Fi Cloud-managed Access Points (AP120, AP125, AP225W, AP320, AP322, AP325, AP327X, AP420)

The Client Event Logs is a list of client connectivity events:

  • Green represents successful connection events.
  • Grey represents intermediate events.
  • Red represents failed connection events.

You can view the Client Connection Logs in one of these views:

  • Timeline View
  • Grid View

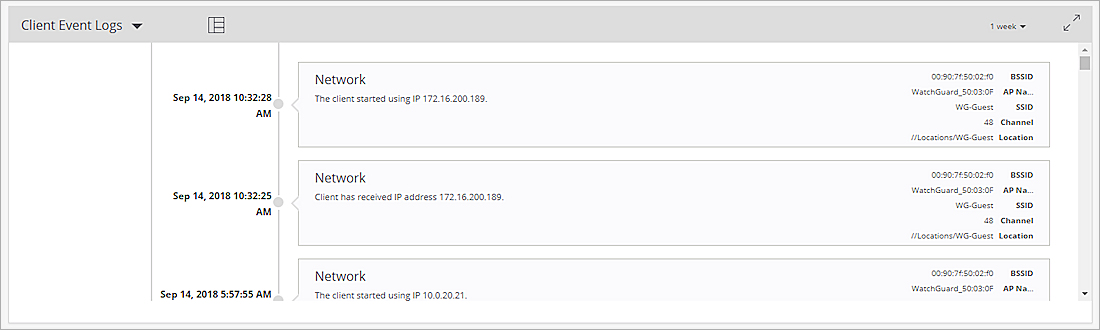

The Timeline View provides the list of the client events logs with these details:

Field Description
Timestamp Indicates the date and time when the client connected to an AP.
BSSID BSSID is the MAC address of the AP to which the client attempted to connect.
AP Name Name of the AP to which the client attempted to connect.
SSID SSID of the WLAN to which the client is connected.
Channel Operating channel of the AP to which the client attempted to connect.

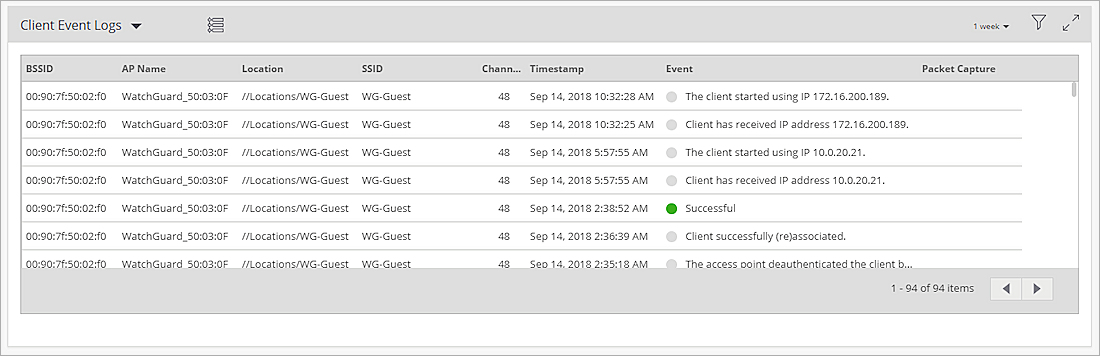

The Grid View contains detailed information in a tabular format:

Field Description
BSSID BSSID is the MAC address of the AP to which the client attempted to connect.
AP Name Name of the AP to which the client attempted to connect.
SSID SSID of the WLAN to which the client is connected.
Channel Operating channel of the AP to which the client attempted to connect.
Timestamp Indicates the date and time when the client connected to an AP.
Event Indicates if the client successfully connected.
Packet Capture Provides a link to the packet capture file for all failure events.
