Access Point Event Logs

Applies To: Wi-Fi Cloud-managed Access Points (AP120, AP125, AP225W, AP320, AP322, AP325, AP327X, AP420)

Access Point event logs provide a list of events specific to the AP and do not include client connectivity information.

To view the event logs for an AP, select Monitor > WiFi > Access Points, right-click on an AP, then select the Troubleshoot > View Event Logs action.

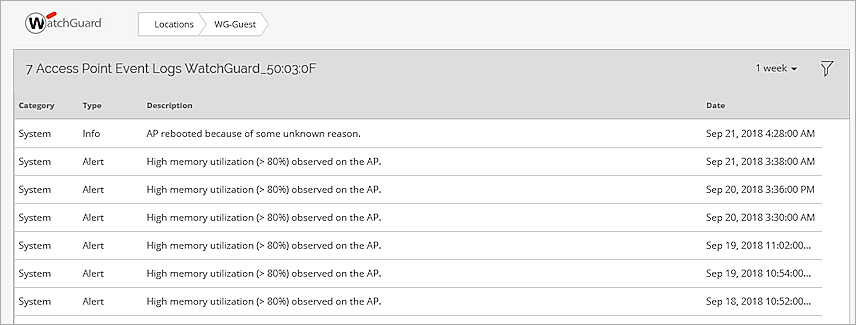

Screen shot of the AP event logs

The logs can include these events:

  • AP memory status
  • AP reboot
  • AP IP conflict
  • AP system service crash
  • AP Ethernet port status
  • AP upgrade failure
  • AP upgraded
  • AP CLI configuration change
  • AP DHCP status
