PSInfo URL Checker

Applies To: WatchGuard Advanced EPDR This topic applies to the WatchGuard Advanced EPDR endpoint security product., WatchGuard EPDR This topic applies to the WatchGuard EPDR endpoint security product., WatchGuard EDR This topic applies to the WatchGuard EDR endpoint security product., WatchGuard EPP This topic applies to the WatchGuard EPP endpoint security product., WatchGuard EDR Core This topic applies to the WatchGuard EDR Core, available in the Total Security Suite license.

From PSInfo, you can use the URL Checker tool to verify the connectivity of the URLs that your endpoint security product requires. The tool helps to determine whether any URLs do not communicate with the endpoint agent. Common scenarios are when communicate with the endpoint agent fails, or when antivirus does not send telemetry.

To check the connectivity URLs of your product:

1. Run PSInfo.exe.
   The PSInfo dialog box opens.

2. Select the Tools tab.

3. Double-click URL Checker.

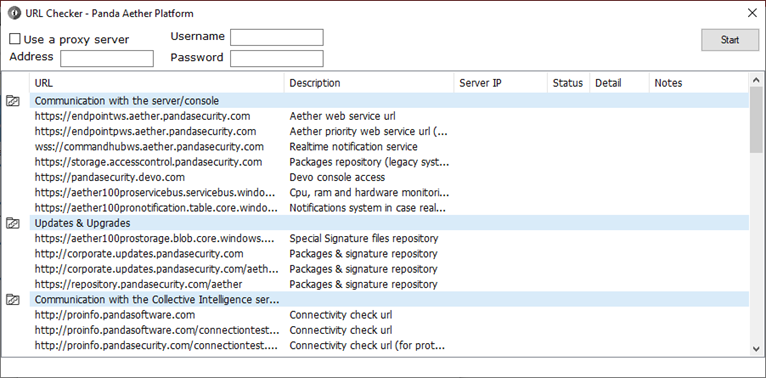

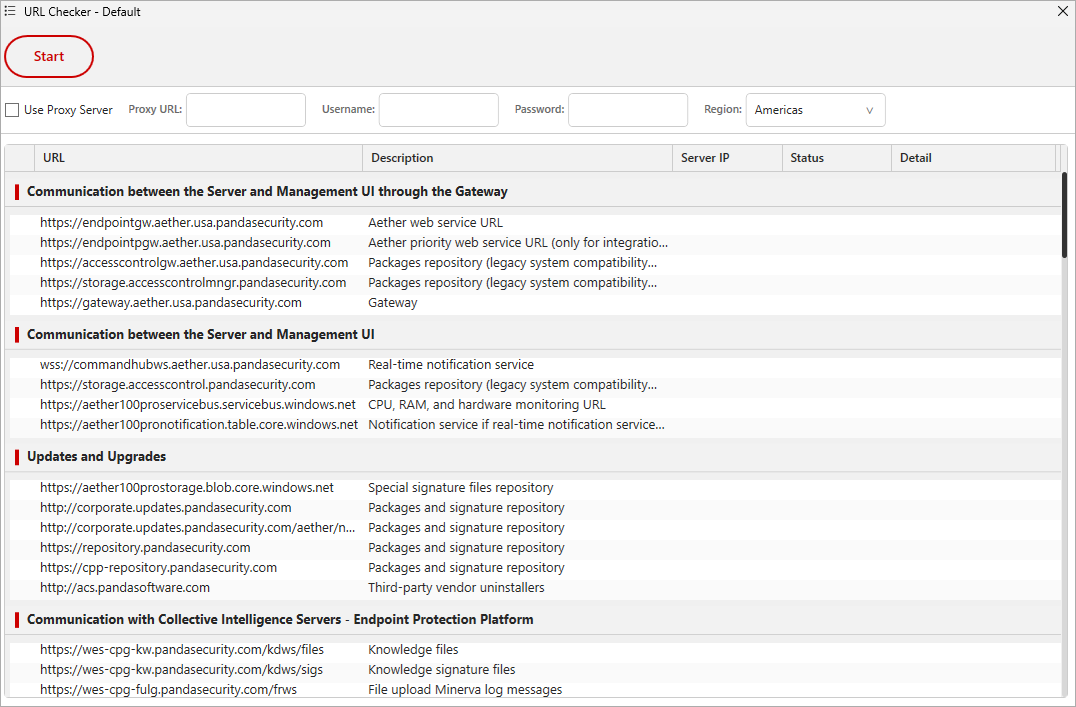

   The URL Checker dialog box opens.

4. (Optional) If you want to use a proxy, select the Use a Proxy Server check box. In the Address, Username, and Password text boxes, type your proxy server account credentials.
5. Click Start.
   You can click Stop at any time to stop the tool.

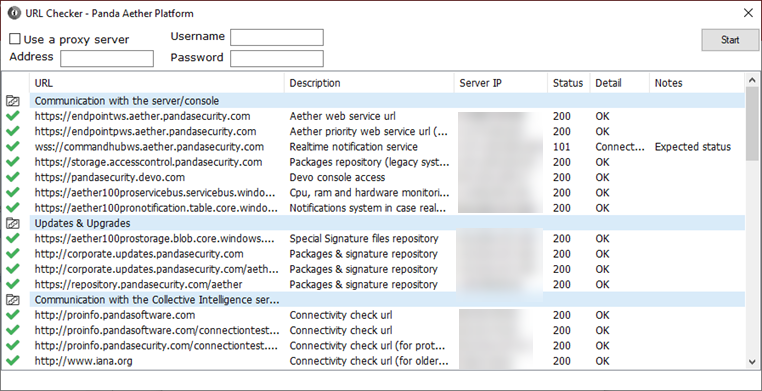

6. After the check completes, verify that each entry in the Detail column reports as OK.
7. If the Detail column shows an issue, review the text in the Notes column for a possible cause.

8. When you finish, close the URL Checker dialog box.

Status Icons

URL Checker icons indicate the status of a communication URL. You can review the text in the Notes column for information about any issue that might show.

• — Communication connection is unsuccessful.
• — Communication connection is successful.
• — Communication connection is successful, but the communication is not as URL Checker expects. This usually occurs when headers or document bodies are different to the patterns that URL Checker expects.
• — Communication connection is successful, but the communication pattern is different to what URL Checker expects. This usually occurs when a web server updates a requested document and the pattern is a different pattern to what URL Checker expects.
• — Communication connection is successful, but the certificate chain fails.
