Page Settings

Applies To: Wi-Fi Cloud-managed Access Points (AP120, AP125, AP225W, AP320, AP322, AP325, AP327X, AP420)

In the Page Settings, you can customize these elements:

Background Image

To change the Background Image:

  1. Expand the Background Image settings.

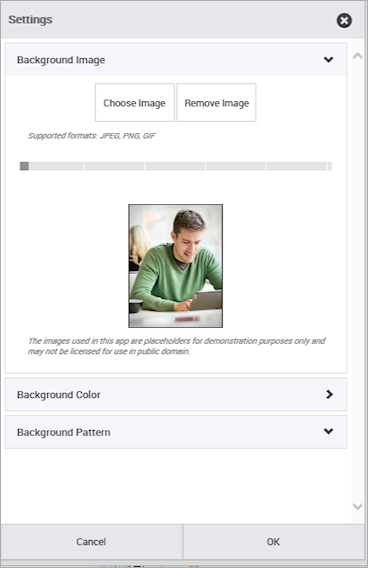

Edit Splash Page background image

  1. To upload a new image, click Choose Image.
    You can upload .jpg, .png, or .gif files.
  2. Click OK.

To remove an image, select the image, then click Remove Image.

Background Color

To change the background color:

  1. Expand the Background Color settings.
  2. Select a color.
  3. Click OK.

Splash Page Background Color configuration

Background Pattern

To change the Background Pattern:

  1. Expand the Background Pattern settings.
  2. Select a pattern.
  3. Click OK.

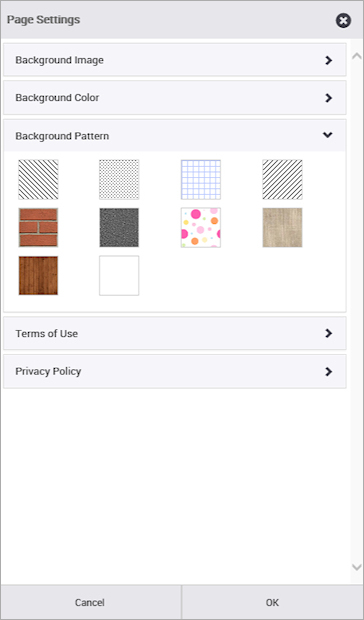

Splash Page Background Pattern configuration

Terms of Use

To modify the Terms of Use text presented to guest users on a splash page:

  1. Expand the Terms of Use settings.

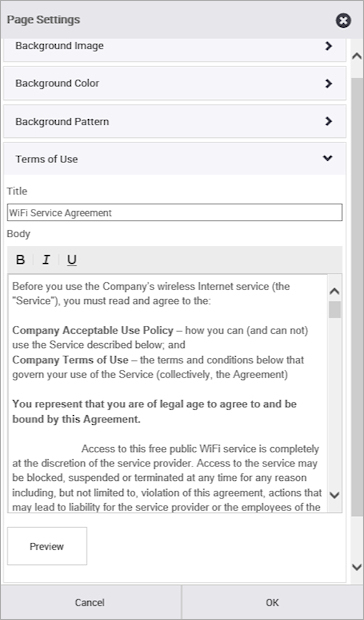

Splash Page Terms of Use configuration

  1. Type a Title for the Terms of Use.
  2. Type the main Body of the Terms of Use message.
    You can click Preview to see how the Terms of Use is displayed.
  3. Click OK.

Privacy Policy

To modify the Privacy Policy presented to guest users on the splash page:

  1. Expand the Privacy Policy settings.

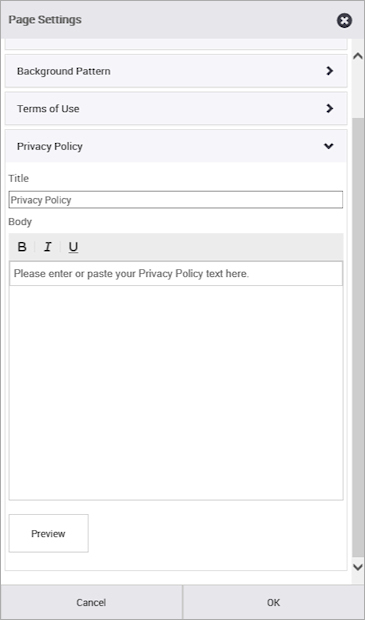

Splash Page Privacy Policy configuration

  1. Type a Title for the Privacy Policy.
  2. Type the main Body of the Privacy Policy message.
    You can click Preview to see how the Privacy Policy is displayed.
  3. Click OK.
