Monitor Active SSIDs

Applies To: Wi-Fi Cloud-managed Access Points (AP120, AP125, AP225W, AP320, AP322, AP325, AP327X, AP420)

In Discover, the Monitor > WiFi > Active SSIDs page displays a list of active SSIDs on your network.

You can freeze columns, add or remove columns, filter the display, and switch to full screen mode using the icons at the top-right of the page. For more information, see Table Actions for Monitor Pages.

The data in the columns represent live data updated every 15 minutes.

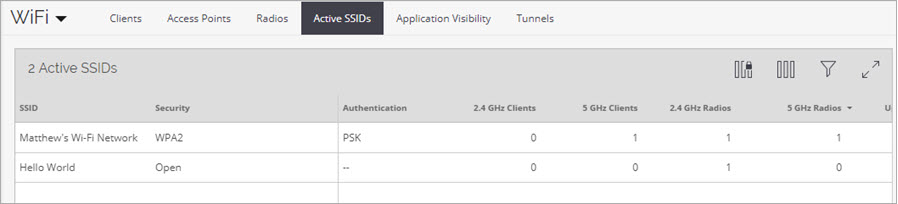

Screen shot of the Monitor > Active SSIDs page in Discover

The Active SSIDs monitoring page includes this information:

Field Description
SSID Profile Name of the SSID Profile.
Security The mode of security used by the SSID.
Authentication The authentication method used by the SSID.
2.4 GHz Clients

The number of clients connected on the 2.4 GHz band.
5 GHz Clients

The number of clients connected on the 5 GHz band.
2.4 GHz Radios

The number of 2.4 GHz radios on which an SSID is broadcast.
5 GHz Radios

The number of 5 GHz radios on which an SSID is broadcast.
Uplink Data The uplink data usage.
Downlink Data The downlink data usage.
