Client Traffic Volume

Applies To: Wi-Fi Cloud-managed Access Points (AP120, AP125, AP225W, AP320, AP322, AP325, AP327X, AP420) This topic applies to Wi-Fi 5 access points you manage in Wi-Fi Cloud (AP120, AP125, AP225W, AP320, AP322, AP325, AP327X, AP420).

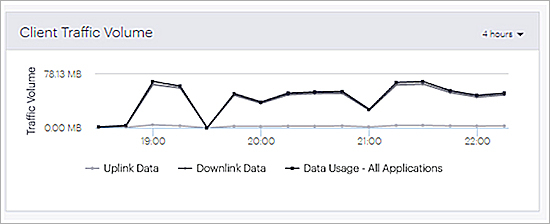

The Client Traffic Volume graph represents the data sent and received by the client every 15 minutes.

This data usage includes uplink and downlink data for all applications.

You can select the time interval from the top-right corner of the widget.

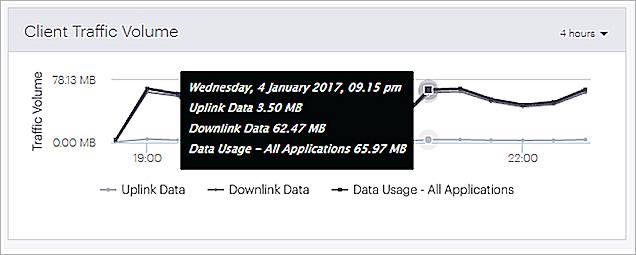

Hover over a data point to display detailed information about the data usage including the timestamp, uplink and downlink data, and all application data usage.
