Access Point Allocation

Applies To: WatchGuard Cloud-managed Access Points

Access points activated by a Service Provider appear in the Service Provider Inventory in WatchGuard Cloud. As a Service Provider, you can allocate devices to your own account or any account you manage. After you allocate an access point to a subscriber account, the device appears on the list of devices you can add to that account.

You allocate devices from the Inventory page in the Service Provider view of WatchGuard Cloud. The Overview page for your Service Provider account shows you an overview of the users and devices in your inventory. In the Overview page, the Access Point Overview section shows this information:

  • Next License Expiration — Indicates the date when the next access point license expires
  • Unallocated Access Points — Number of unallocated access point in your account
  • Allocated Access Points — Number of access point currently allocated to a managed account
  • Total Access Points — Total number of access point in your account

When you allocate an access point to an account, you specify an allocation expiration date. Set the allocation expiration to any date that helps you manage the business relationship with your customer. The allocation expiration date does not affect the operation of the access point , and is not related to expiration of the access point license subscription. When the allocation expires, the access point continues to operate with full functionality. For more information, see About Wi-Fi in WatchGuard Cloud Access Point Licenses.

Allocate an Access Point to an Account

Before you can add an access point to a Subscriber account, you must allocate it to the account.

To allocate an access point to an account:

  1. Log in to your WatchGuard Cloud Service Provider account.
  2. From the navigation menu, select Inventory.
    The Overview page for your Service Provider Inventory opens.
  3. In the Accounts menu, select the top-level folder for your Service Provider account.
  4. In the Inventory menu, in the Access Point section, select Unallocated.
    A list of all unallocated access points appears.

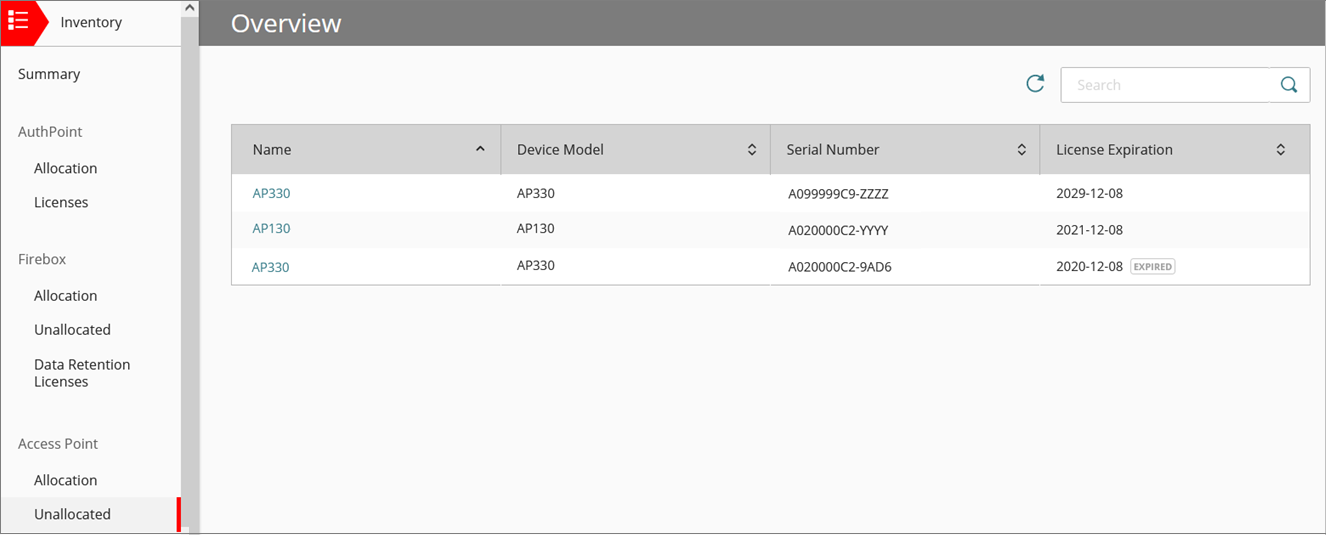

Screen shot of Inventory > Access Points > Unallocated

  1. To allocate an access point to an account, click the Name of the access point .
    The Allocation Details page appears.

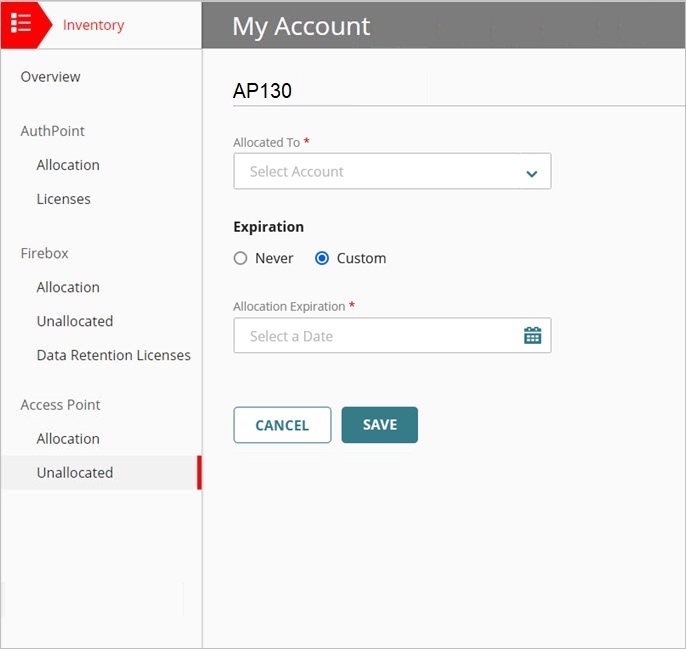

Screen shot of Access Point allocation

  1. From the Allocated to drop-down list, select the account to allocate this access point to. This can be your own account or any managed account.
  2. To specify an expiration date, select Custom.
  3. Select an expiration date in the calendar.
  4. Click Save.
    The access point is removed from the Unallocated list, and is added to the Allocation list for the account you selected.

See the Allocation Summary

When you select the top-level folder for your Service Provider account, you can see and manage the access point inventory by account or by device.

To see a summary of access point allocation by account:

  1. From the navigation menu, select Inventory.
    The Overview page for your Service Provider Inventory opens.
  2. In the Accounts menu, select the top-level folder for your Service Provider account.
  3. In the Inventory menu, below Access Point, select Allocation.
    By default the Access Point Allocation page shows a summary of the number of devices allocated to each account.

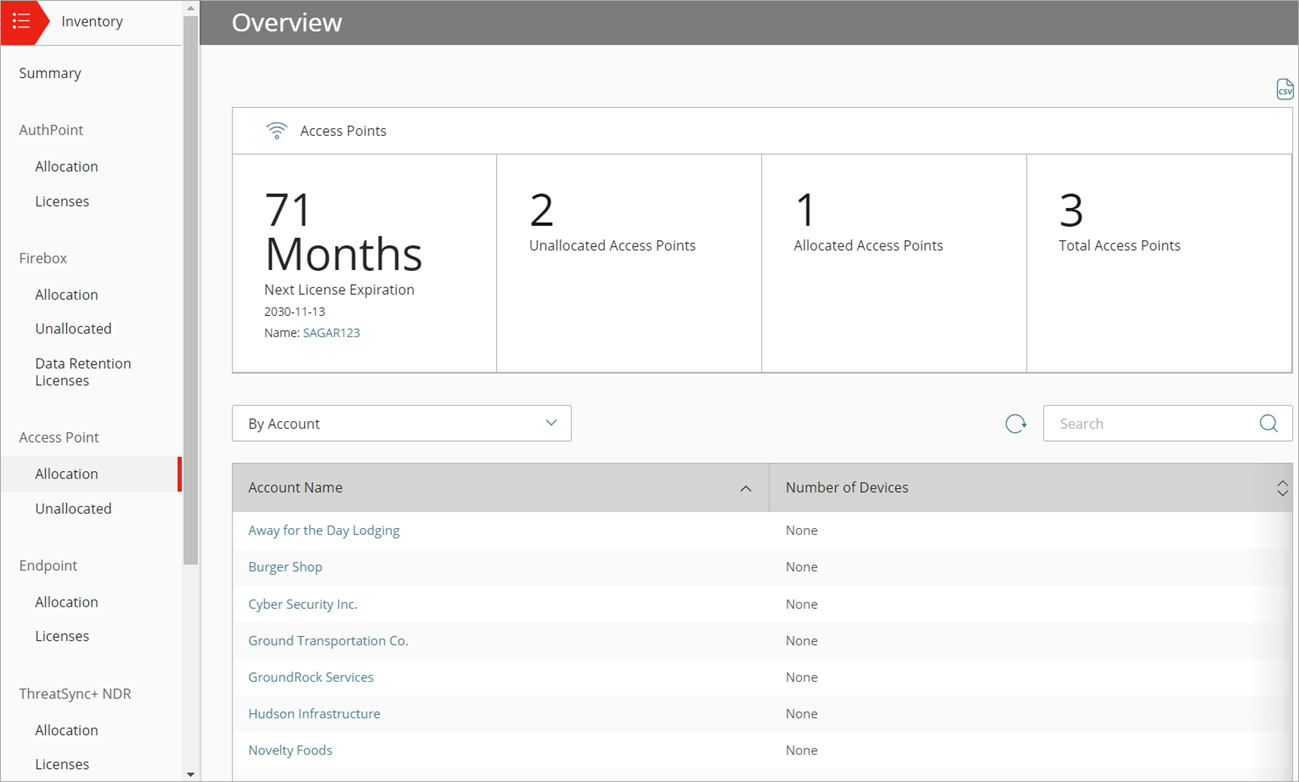

Screen shot of the Access Point allocation summary page

  1. To see the list of access points allocated to an account, click the Account Name.
    In the Accounts list, the account is selected, and the Allocation list shows the access points allocated to that account.

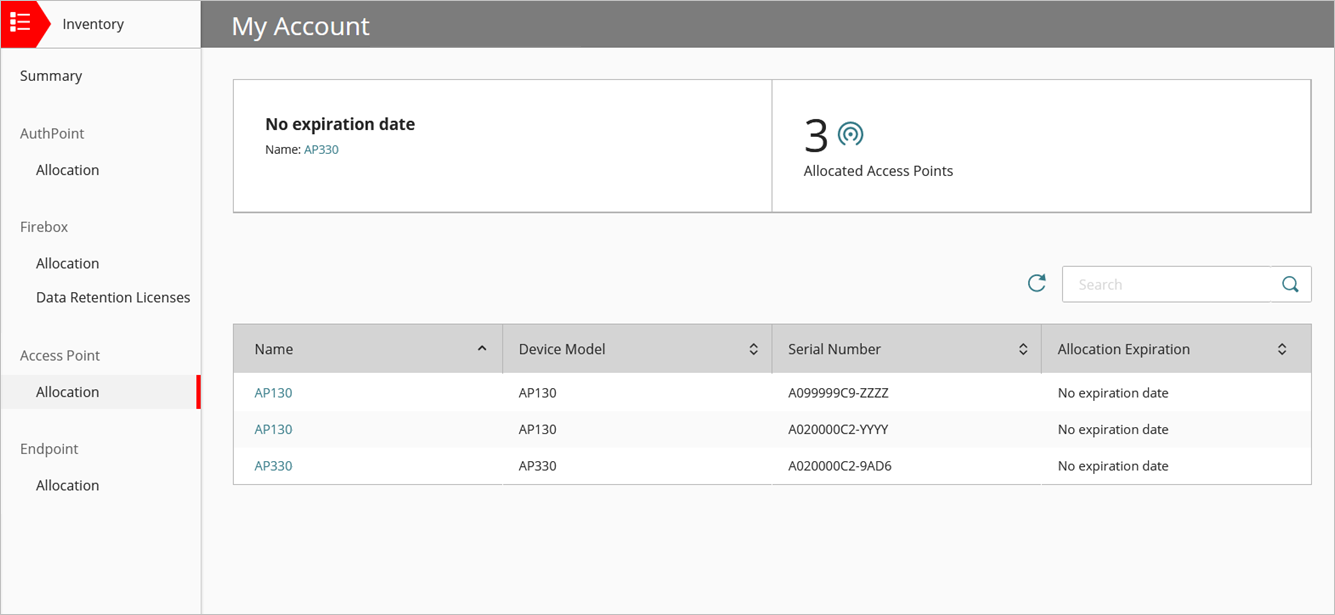

Screen shot of the Access Point allocation for a managed account

To see a summary of access point allocation by device:

  1. From the navigation menu, select Inventory.
    The Overview page for your Service Provider Inventory opens.
  2. In the Accounts menu, select the top-level folder for your Service Provider account.
  3. In the Inventory menu, in the Access Point section, select Allocation.
    By default, the Allocation page shows the summary of allocated devices by account name.
  4. From the drop-down list, select By Device.
    The allocation summary list changes to list all allocated devices.

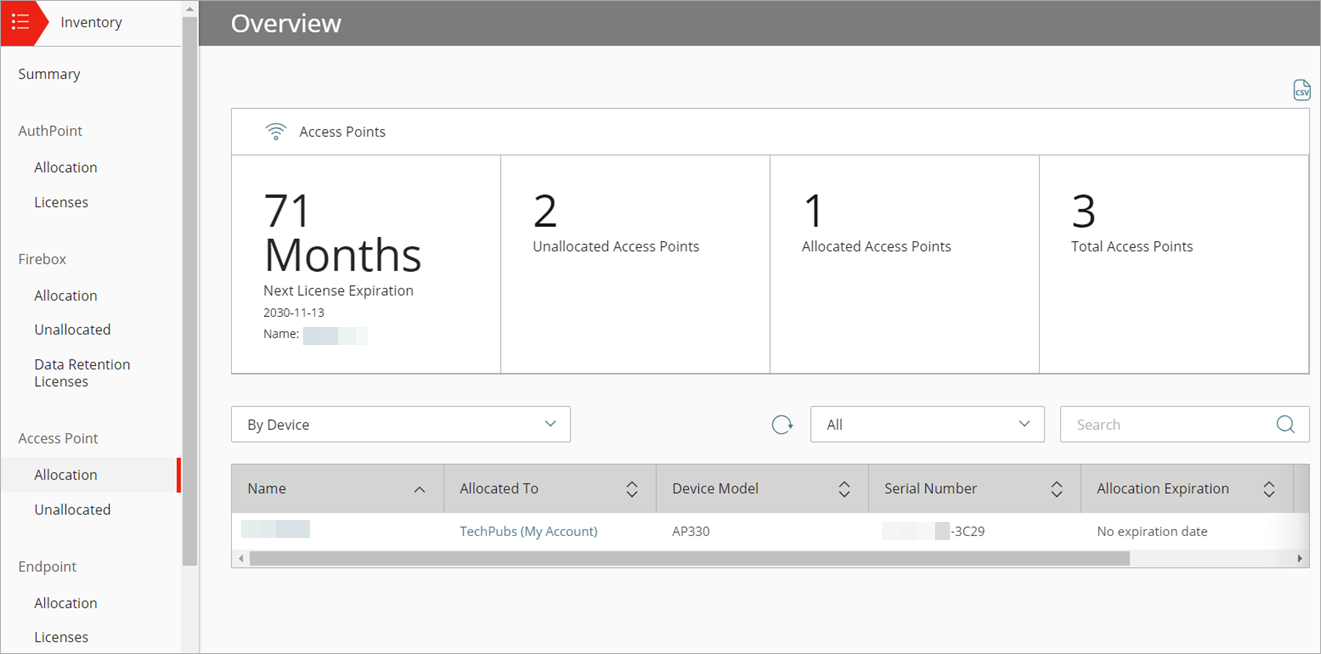

Screen shot of the AP allocation summary by device name

  1. To edit the allocation details for a device, click the device Name.
    The Allocation Details for the device appear.

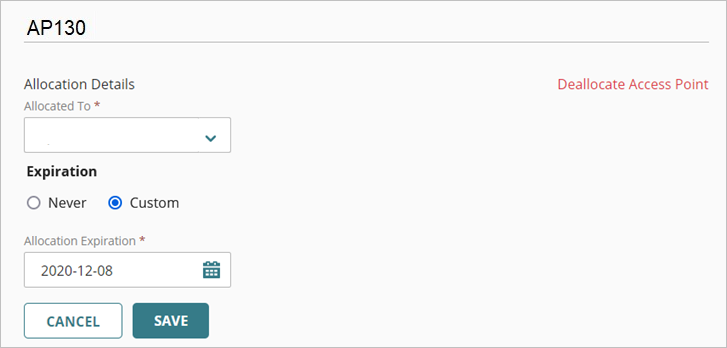

Screen shot of the allocation details for an allocated Access Point

To see all devices allocated to an account, in the Accounts list, select an account name.

Change Device Allocation Details

When you edit the allocation for an allocated access point, you can perform these actions:

Deallocate the Access Point

This action removes the access point from the account, and returns it to your unallocated access point inventory.

To deallocate a access point, on the Allocation Details page, click Deallocate Access Point.

Allocate the Access Point to a different account

This action deallocates the access point from the original account, and allocates it to an account you specify.

Change the Allocation Expiration

You can change the allocation expiration date. This has no effect on the operation of the access point. The allocation expiration is only to help you manage the account.
