Processes

To see a list of processes that run on the Firebox:

  1. Connect to Fireware Web UI for your Firebox.
  2. Select System Status > Processes.
    The Processes page appears.

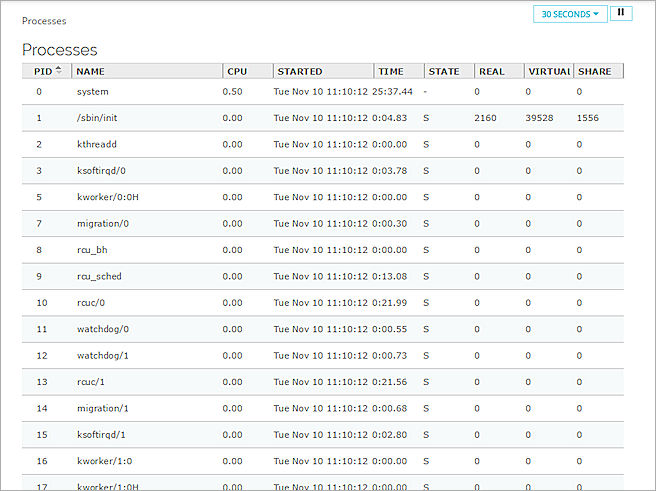

Screen shot of the System Status > Processes page

The Processes page includes information about all processes that run on the Firebox.

PID

The Process ID is a unique number that shows when the process started,

Name

The name of the process.

CPU

The percentage of CPU time the process has used after the last device reboot.

Started

The day of the week, date, and time that the process started.

Time

The amount of time that the process has used since the last time the Firebox was started.

State

The state of the process:

R — Running

S — Sleeping

D,Z — Inactive

Real

The total number of kilobytes of physical memory the process uses.

Virtual

The total number of kilobytes of virtual memory the process uses.

Share

The total number of kilobytes of shared memory the process uses.

For more information about the System Status pages, see Monitor your Firebox with Fireware Web UI.
