HTTP-Proxy: Data Loss Prevention

To apply consistent settings for Data Loss Prevention (DLP) content inspection and extraction, you can associate a DLP configuration with your HTTP-proxy.

To configure DLP in an HTTP Proxy Action, from Fireware Web UI:

  1. From the Edit page for the HTTP-proxy, select the Proxy Action tab.
  2. Select the Data Loss Prevention tab.

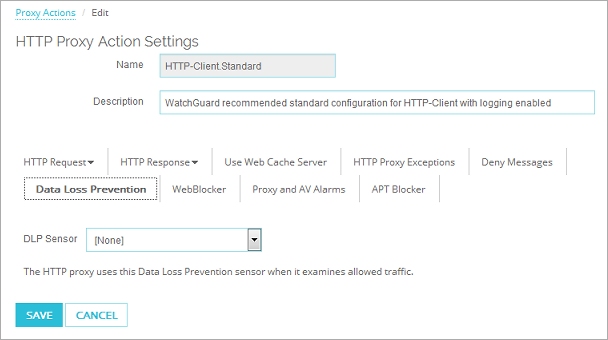

Screen shot of the HTTP Proxy Action Configuration page, Data Loss Prevention tab

  1. From the DLP Sensor drop-down list, select a configuration.
  2. Click Save.

To configure DLP in an HTTP Proxy Action, from Policy Manager:

  1. In the HTTP Proxy Action Configuration dialog box, from the Categories tree, select Data Loss Prevention.
    The Data Loss Prevention page appears.

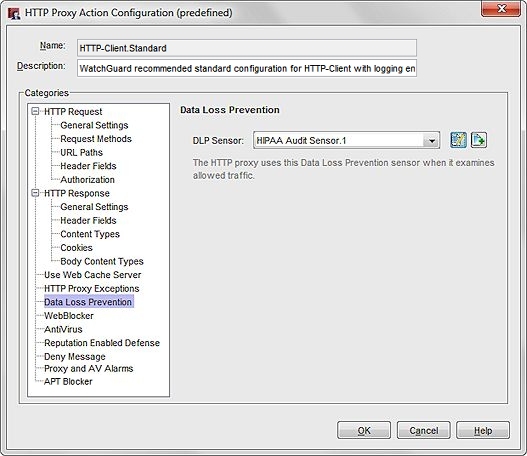

Screen shot of the HTTP Proxy Action Configuration dialog box, Data Loss Prevention page

  1. From the DLP Sensor drop-down list, select a configuration.
  2. To create a new DLP configuration, click the New/Clone WebBlocker button.
  3. To edit a selected DLP configuration, click the Edit Proxy Action button.
  4. Click OK.

For more information, go to About Data Loss Prevention and Configure Data Loss Prevention.
