Review Information for Managed Devices

On the WatchGuard System Manager Devices page, you can review the complete list of managed devices and information for each one.

  1. Connect to Your Management Server with WSM.
  2. From the navigation pane, select Devices. list, select a device or folder.
    Information for that device appears on the Devices page.

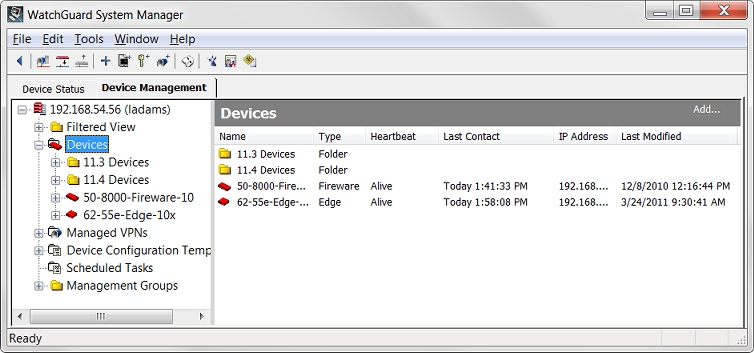

Screen shot of the WSM Devices page

Name

The name of the managed device or folder.

Type

The type of device or OS installed on the managed device. For a device folder, Folder appears.

Heartbeat

The connection status of a device to the Management Server.

  • Alive — The device has recently contacted the Management Server.
  • Unavailable — The Management Server has not been contacted by the device recently.

Device folders do not have a heartbeat value.

Last Contact

The time and date that the device last contacted the Management Server.

IP Address

The IP address used to identify the device. If the device has not reported in to the server, n/a appears.

Last Modified

The time and date when the configuration file for the device was last changed on the Management Server.

To see more information for a specific device:

  1. Expand the Devices list.
  2. Select a device or folder.
    Information for that device appears on the Devices page.
