3-Port and High Availability Upgrade Bundle*

Double the number of network ports for interdepartmental firewalling, a DMZ, and High Availability Active/Passive for secure failover.

Don't leave your business open to intellectual property loss and network downtime. Protect your network from both outside and inside threats, and get the failover security you require.

*Available only for Firebox® X Core™ appliances running WFS (X500, X700, X1000, and X2500), the standard operating system that ships with the Core. If you upgrade your Firebox X Core to Fireware® Pro advanced appliance software, the 3-Port and High Availability Upgrade is automatically included. Not applicable to e-Series products.

Key Features and Benefits

Additional Three Ports:

Sub-segment your network by different device types or user groups, each with their own security policies. User authentication helps you track which users have access to other protected segments.
Provide interdepartmental firewalling or separate commerce, mail, and Web servers with policy protection between the DMZs and trusted network.

High Availability Active/Passive:

Ensure that your Web site and network remain accessible to your customers, business partners, and employees.
Rely on effective firewall and VPN connection failover and self-healing without IT intervention.

How It Works

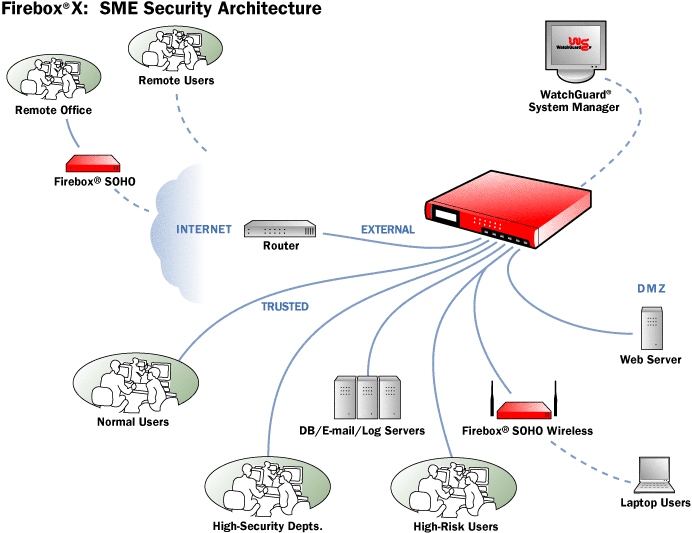

Additional Three Ports

» View Diagram

Protect users, groups, and departments by segmenting them on different network ports.
Protect Web, email, or data servers with a DMZ.
Use WatchGuard System Manager to quickly configure segments and DMZs.

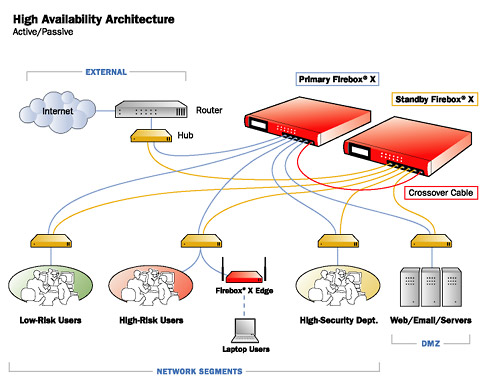

High Availability Active/Passive

» View Diagram

With WatchGuard System Manager, configure two same-model Fireboxes installed on your network, designating one as the primary source for enforcing your security policy, and the other as a secondary, or standby, firewall.
The standby remains inactive unless the primary Firebox ceases to respond to a connection on a specified channel over a selected Firebox interface. If no response is received across the network from the primary Firebox, the standby Firebox will assume the active role within ten seconds of failure detection.

Upgrade Prerequisites

For use of 3-Port Upgrade: Any Firebox® X Core™ appliance running WFS appliance software.
For use of High Availability Active/Passive: Two same-model Firebox X Core appliances running WFS operating system.
An active LiveSecurity® Service subscription.
