Huawei Switch sFlow Integration with ThreatSync+ NDR

The Huawei Switch uses the sFlow protocol to export data about IP traffic that enters its interfaces and exports this data as sFlow fields to a sFlow collector. The sFlow collector is a server used to collect network traffic and upload to ThreatSync+ NDR to analyze for security, administration, accounting, and troubleshooting.

WatchGuard provides integration instructions to help customers configure WatchGuard products to work with products created by other organizations. If you want more information or technical support about how to configure a third-party product, go to the documentation and support resources for that product.

This document describes how to integrate the Huawei switch with ThreatSync+ NDR using the sFlow protocol.

Contents

Integration Summary

The hardware and software used to complete the steps outlined in this document include:

  • Huawei Switch S5735S-S48T4S with VPR(R) software version 5.170 V200R021C10SPC600
  • WatchGuard Cloud account with a ThreatSync+ NDR or Total NDR license
  • ThreatSync+ NDR Collection Agent (for more information, go to About ThreatSync+ NDR Collection Agents)

Topology

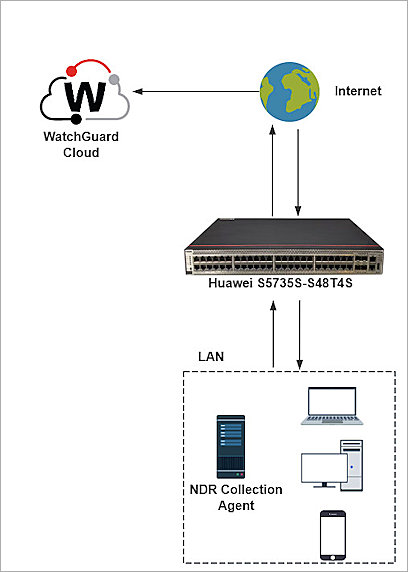

This diagram shows the integration topology of the Huawei switch and ThreatSync+ NDR.

Screenshot of the ThreatSync+ NDR and Huawei switch S5735S-S48T4S topology diagram

Configure the ThreatSync+ NDR Collection Agent

Make sure the ThreatSync+ NDR Collection Agent is installed on your Windows or Linux computer, and the status of the collection agent is Success. For detailed instructions about the ThreatSync+ NDR Collection Agent installation, go to Configure Collection Agents for ThreatSync+ NDR (Windows Computers) or Configure Collection Agents for ThreatSync+ NDR (Linux Computers).

Configure the Basic Settings on Huawei Switch

For the basic settings such as VLAN, go to Huawei Enterprise Support.

Configure sFlow on Huawei Switch

The sFlow feature on the Huawei Switch S5735S-S48T4S can only be configured in CLI mode.

To configure your Huawei switch as a sFlow exporter:

  1. Log in to the CLI mode of Huawei Switch S5735S-S48T4S.
  2. Enter the following commands to configure and verify the IP address and port VLAN configurations of the switch.

    In configuration mode, enter:

    3. system-view

    Verify the IP configuration of the switch:

    display ip interface brief

    Verify the types and VLAN ID of each port:

    display port vlan

  3. Enter the following commands to create a VLANIF for one of the VLANs that belongs to the subnet that you want to monitor.

    Confirm the subnet for the traffic you want to collect and configure a VLANIF for the VLAN of that subnet. In our example, we created a VLANIF for the subnet 10.138.101.0/24 with IP 10.138.101.153 for VLAN 201.

    4. interface vlanif 201
    ip address 10.138.101.153 255.255.255.0

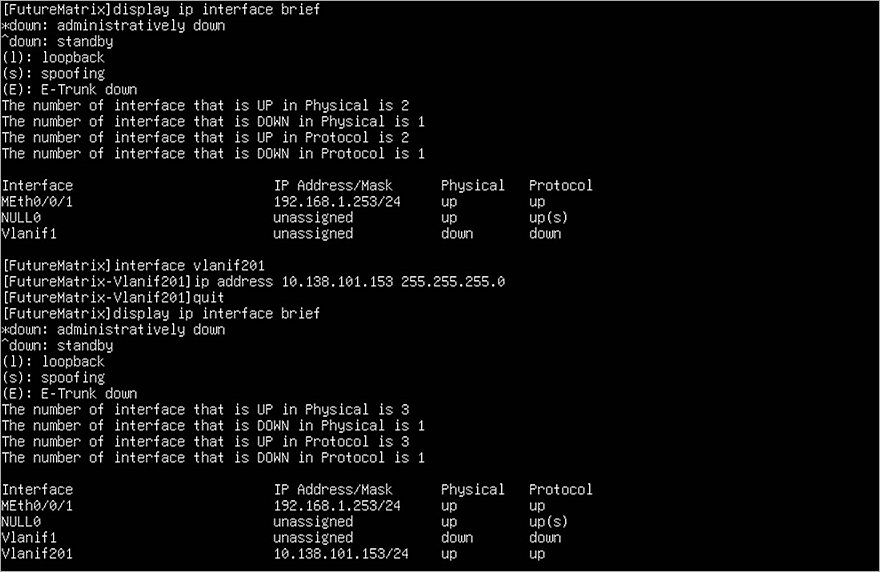

    Screenshot of Huawei switch S5735S-S48T4S, sFlow configuration 1

  4. Configure the sFlow-agent and sFlow collector.

    Configure the sFlow agent that monitors the traffic and forwards the traffic through itself to the collector. Configure the sFlow agent ip <interface IP>. In our example, we enter the VLANIF we created in Step 3.

    5. sFlow agent ip 10.138.101.153

    Configure the sFlow collector that collects the traffic from the sFlow agent and uploads the traffic to ThreatSync+ NDR. The IP should be the IP of the ThreatSync+ NDR Collection Agent.

    Configure the sFlow collector <integer> ip <collector ip> port <port number>:

    sFlow collector 1 ip 10.138.101.151 port 6343 description collector-test

    Confirm the sFlow configuration:

    display sflow

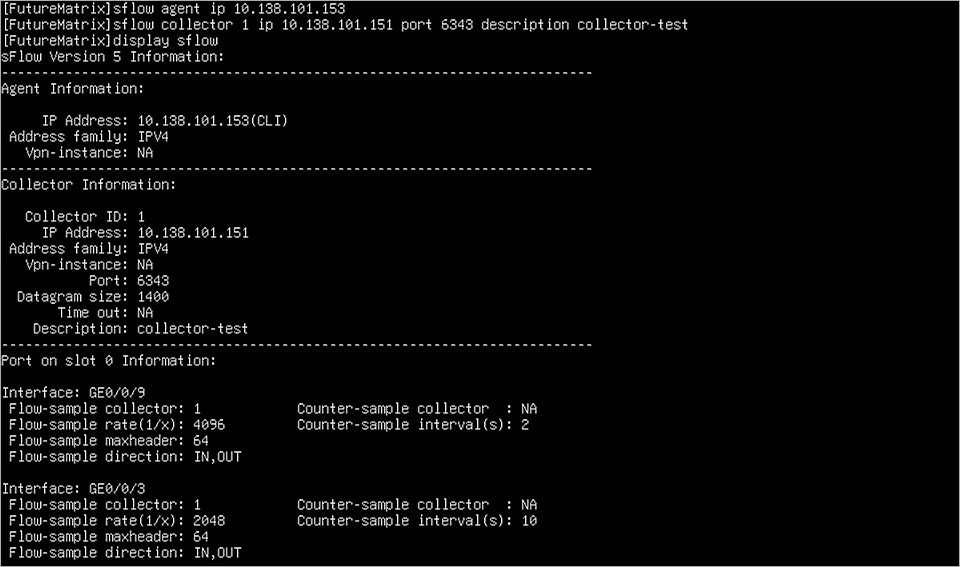

    Screenshot of Huawei switch S5735S-S48T4S, sFlow configuration 2

  5. Configure the sFlow sampling on the specified interfaces. In our example, we enabled sFlow sampling on GE0/0/12.

The interface where you enabled sFlow sampling should be the same VLAN with the sFlow agent and sFlow collector.

    Go to the specified interface:

    interface GigabitEthernet 0/0/12

    Enable sFlow sampling on this interface. There are two types of sampling methods: counter-sampling and flow-sampling. Because flow-sampling collects more comprehensive traffic information, we used flow-sampling in our example.

    Configure sFlow flow-sampling for this interface so the interface can transfer the traffic to the collector:

    sFlow flow-sampling collector 1

    Configure the flow-sampling rate. The smaller the value of this rate, the more traffic will be sampled on this interface within the same period of time. The range of this rate is from 256 to 1048576. In our example, we set it to 256.

    sFlow flow-sampling rate 256

    For other settings of sFlow flow-sampling, we recommend the default settings. If you want to modify other settings, go to the Huawei Support Center.

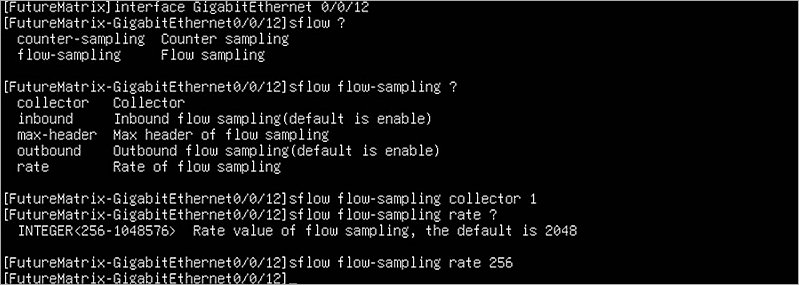

    Screenshot of Huawei switch S5735S-S48T4S, sFlow configuration 3

  1. Type these commands to quit the interface to verify and save the configuration:

    quit

    Confirm the sFlow configuration:

    display sflow

    Save the configuration:

    save

For more information, go to Configure sFlow in the Huawei documentation.

Test the Integration

To test the Huawei Switch integration with ThreatSync+ NDR:

  1. Log in to your WatchGuard Cloud account.
  2. Select Configure > ThreatSync+ Integrations > Collection Agents. If you have a Service Provider account, you must select an account from Account Manager.
  3. Select the ThreatSync+ NDR Collection Agents tab to view the Last Activity column of your collection agent. This column shows the last time the collection agent uploaded the sFlow records to ThreatSync+ NDR. It might take a few hours for the first upload.

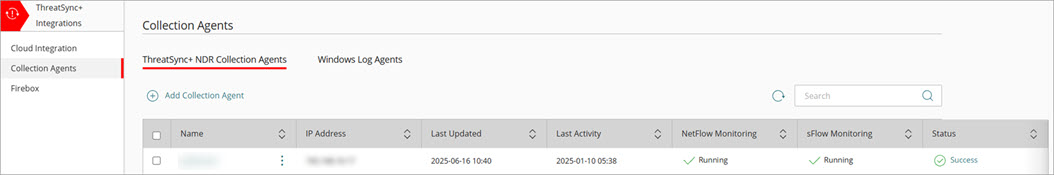

    4. Screenshot of WatchGuard Cloud, the ThreatSync+ Collectors page, Test Integration 1

  4. From the navigation menu, select Monitor > ThreatSync+ to view the Network Summary page.

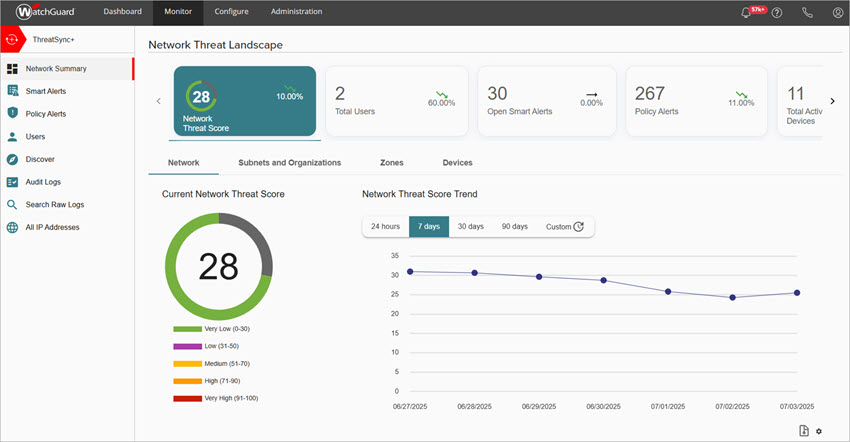

    5. Screenshot of WatchGuard Cloud, the ThreatSync+ Network Summary page, Test Integration 2

For more information about ThreatSync+, go to ThreatSync+.
